Kleinewefers, Ramisch TFD 500 PA 3000 300 Cm Calander

Ref : 2701362-1-AW
Condition : Used
Manufacturer : Kleinewefers, Ramisch
Model : TFD 500 PA 3000
Width : 300 Cm
Short Description : Calander
Year(s) : 1994
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

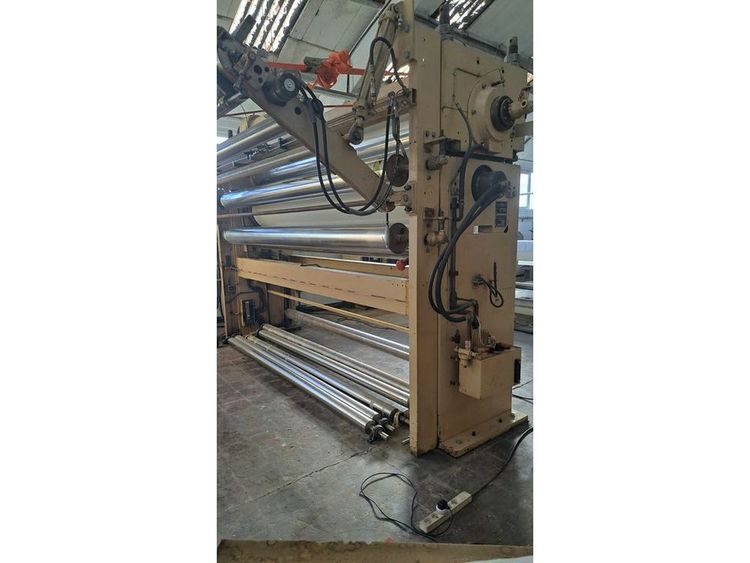

Type 113.10.200, year 1994

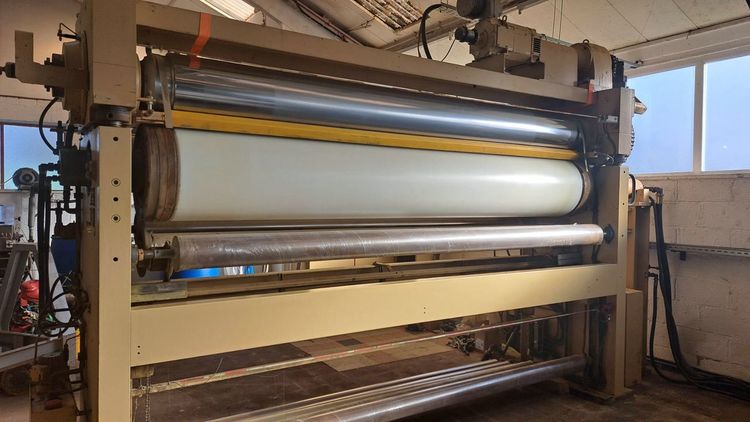

With Escher-Wyss NIPCO roller, type TFD 500 PA 3000.

Top roller: steel (Ø 300 mm)
Lower: NIPCO with Racolan sleeve (Ø 500 mm)
Roller width: 3000mm
Working width: 2800mm
Speed: 3-45 m/min (has been reduced from 10-100m/min)
Linear pressure: 50-200 N/mm

2 cooling rollers on exit side (water cooled)
steam heated (boiler not included)
exit with A-frame batching arm

Currently running as a stand-alone calender but can also be used as in-line calender (external speed control by master-slave principle).

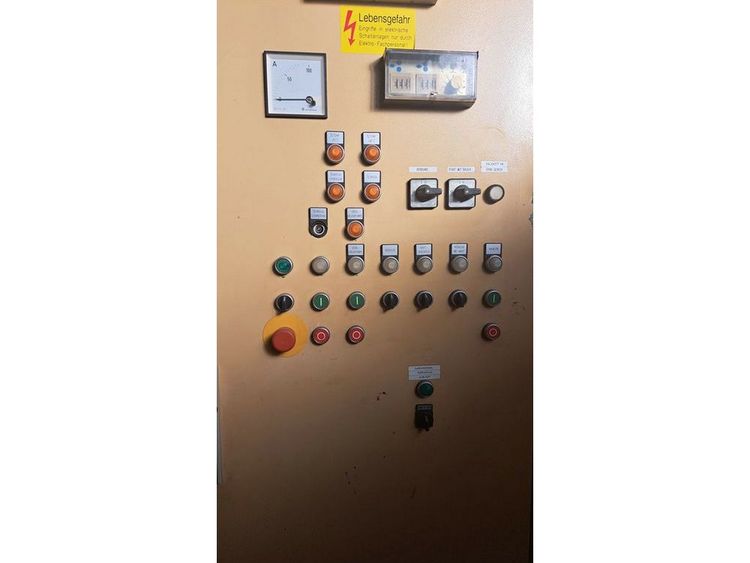

User manual (in german) and electrical diagrams available.
Running on factory floor.
