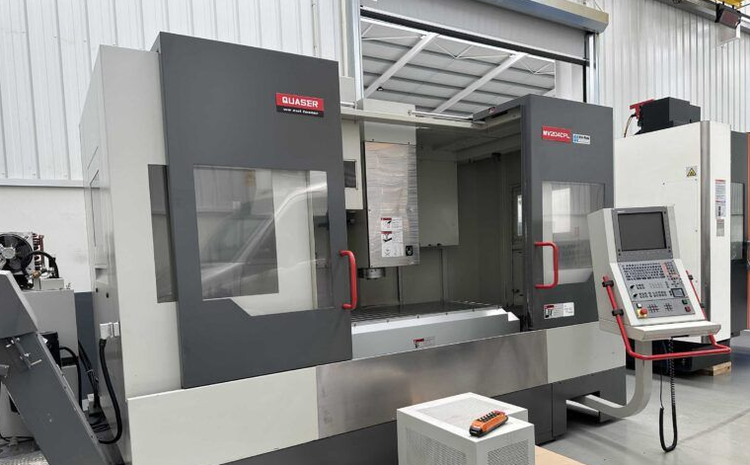

Quaser MV204CPL/12 3 Axis

QUASER MV204CPL/12
2007

CNC HEIDENHAIN iTNC 530
Table surface 1.700 x 700 mm.
Distance table-floor 150- 760 mm
Max weight allowed on table 2.000 kg
Travels and feeds
Longitudinal travel (X) 1.524 mm.
Cross travel (Y) 700 mm.
Vertical travel (Z) 610 mm.
Rapid feed X/Y Axis 36.000 mm./min.

Spindle
Taper BT 40 BIG PLUS
Max spindle speed 12.000 rpm
Spindle power 33 kW
Automatic tool changer (ATC)
Type Chain
Chage type Random
Magazine positions 30
Max tool width with free adjacent positions 150 mm.
Max tool width without free adjacent positions 75 mm.
Max tool length 300 mm.
Max tool weight 7 kg
Tool change time 1.415 s

Equipment
Internal Coolant INCLUDED
Coolant tank capacity 350 l.
2 cross chip conveyors INCLUDED
1 longitudinal chip conveyor INCLUDED
Portable handwheel INCLUDED
Air gun INCLUDED
Others
Repetitivity precision 0,008 / 0,004 mm
Total power 45 kVA
Machine dimmenssions (LxWxH) 4.520 x 2.900 x 3.080 mm.
Machine weight 10.100 kg
