Poreba Engine Lathe TR135B/6M

Reference #32362

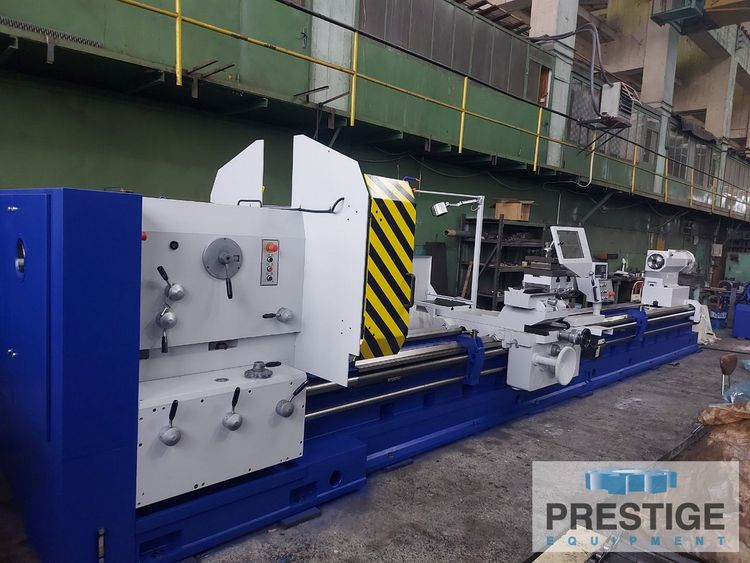

Poreba TR 135/6M 53" x 236" Engine Lathe

FEATURES:
2-Axis Digital Readout

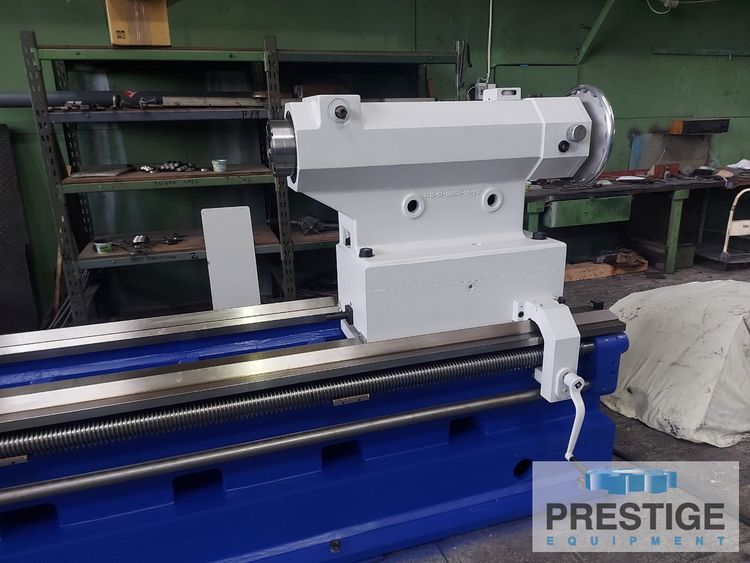

Tailstock with Quill
Automatic Lubrication System

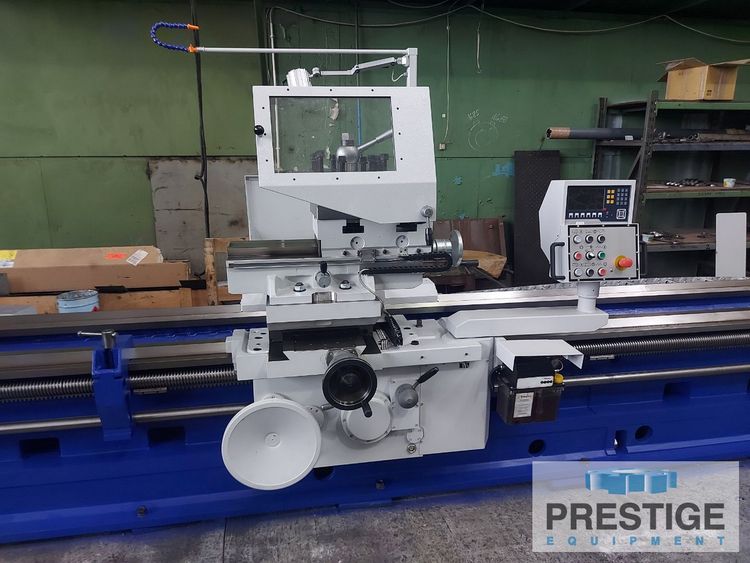

Carriage with Two-Stage Transversal Travel
Bed & Carriage Guideway Hardened & Ground

CAPACITY:
Swing Over Bedways ................. 53.14"
Swing Over Over Carriage ........... 39.37"
Swing Over Bed Gap ................. 62.99"
Length of Gap ...................... 16.53"
Spindle Bore ....................... 4.72"
Distance Between Centers ........... 236.22"
Bed Width .......................... 25.98"
Weight Capacity Between Centers .... 19,800 Lbs.
Weight Capacity (One Steady Rest)... 26,400 Lbs.
Weight Capacity (Two Steady Rests) . 33,000 Lbs.
Speeds (21 Ranges).................. 5-500 RPM
Longitudinal Length of Carriage .... 40.94"
Longitudinal Travel of Carriage .... 240.15"
Longitundal Rapid Travel ........... 157.48 IPM
Transversal Rapid Travel ........... 78.74 IPM

EQUIPPED WITH:
2-Axis Digital Readout
Tailstock with Quill
Automatic Lubrication System
Carriage with Two-Stage Transversal Travel
Automatic Travel Transversal Carriage and Top Shelf Slide
Automatic Feed
Metric Handwheels
Cooling System
Rapid Travel of Longitudinal and Transversal Carriages
4-Position Manual Tool Post
Ballscrew and Nut Transmission for X-Axis Travel
Backlash Free Rack and Pinion for Z-Axis Travel
Bed & Carriage Guideway Hardened & Ground
Longitudinal and Crosswise Travels on Anti-Friction Material

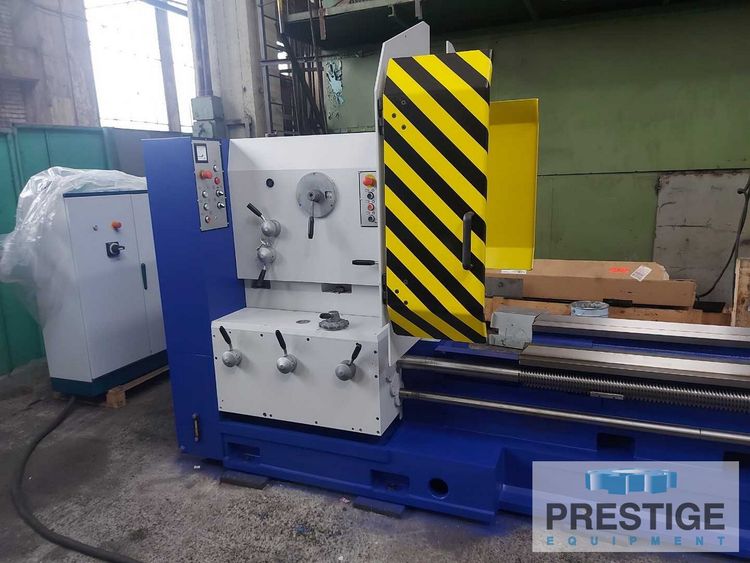

Headstock Housing Made from Cast Iron of Enhanced Mechanical Properties
65 HP Main Motor
Foundation Bolts & Levelling Wedges
