Pines 1-1/4

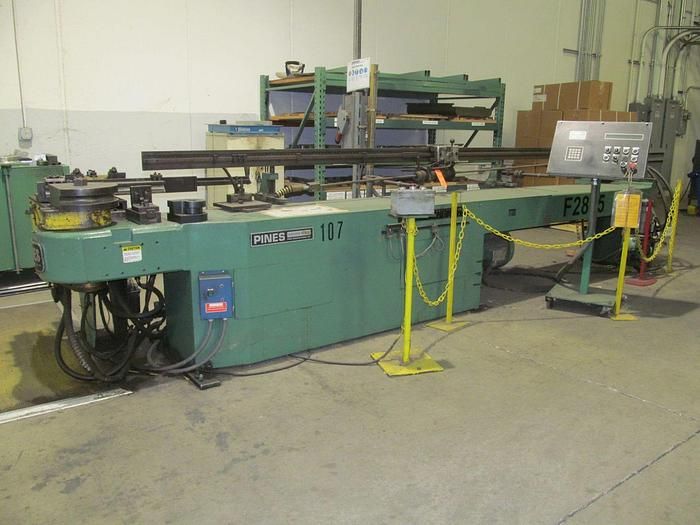

2-1/2" PINES "1-1/4" HORIZONTAL EXTENDED-BASE
HYDRAULIC ROTARY TUBE/PIPE BENDER
Model 1-1/4


EQUIPPED WITH:
Pines Digital Dial-A-Bend Control w/Remote Stand
Automatic Mandrel Extractor (Hydraulic)
6' Extended Base
M21 Manual Carriage (Option)
Adjustable Wiper Die Holder
Fan Cooled Heat Exchanger
Automatic Wiper Die And Mandrel Lubricator

CATALOG SPECIFICATIONS:
Pipe/Tube Diameter x Wall Capacities:
Round Tubing Mild Steel Y.P. to 40000 PSI .......... 2-1/2" x .065"
Schedule 80 Steel Pipe .......... 1-1/4"
Non-Ferrous Tube Y.P. to 12000 PSI .......... 3" x 0.12"
Non-Ferrous Tube Y.P. to 25000 PSI .......... 3" x .065"
Stainless Steel Tube Y.P. to 60000 .......... 1.75" x .065"
Steel Bar, Round Y.P. 40000 PSI .......... 1.375"
Steel Bar, Square Y.P. 4000 PSI .......... 1.25"
Angle Iron Y.P. to 40000 PSI .......... 2.5"x2.5"x0.19"
Tube Length Over Mander, Maximum 13'5"
Tube Bending Radius, Maximum .......... 12"
Tube Bending Angle, Maximum .......... 180-DEGREES
Bending Arm Speed, Average Maximum .......... 13.5 RPM
Operating Pressure, Standard .......... 2000 PSI
Main Motor, Horsepower .......... 10 HP
Overall Dimensions, L x D .......... 13'4" x 4'
Overall Height .......... 4'
Weight, Approximately .......... 5000 LBS
