Peddinghaus HSFDB 2500/B Siemens 840D CNC Control

Reference #43913

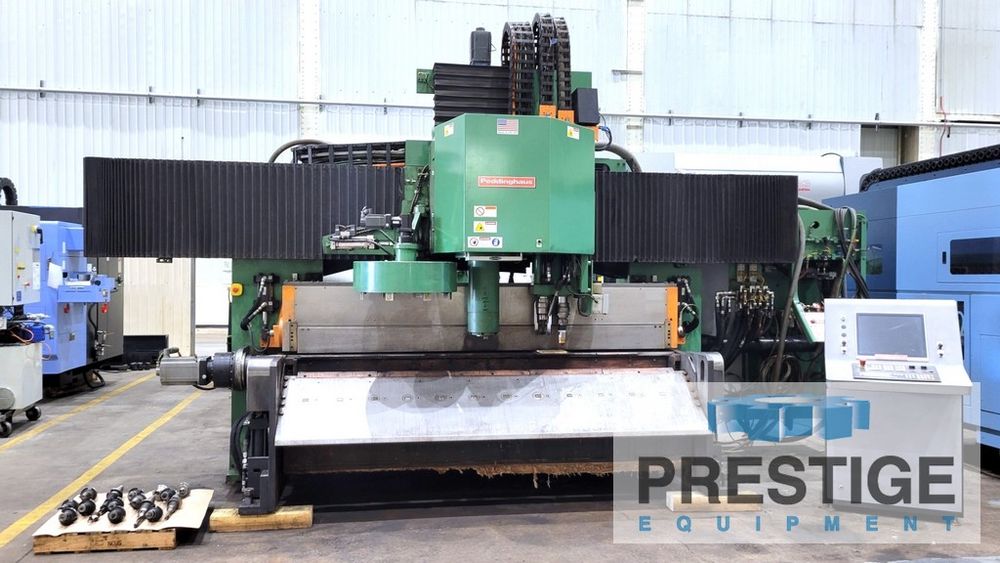

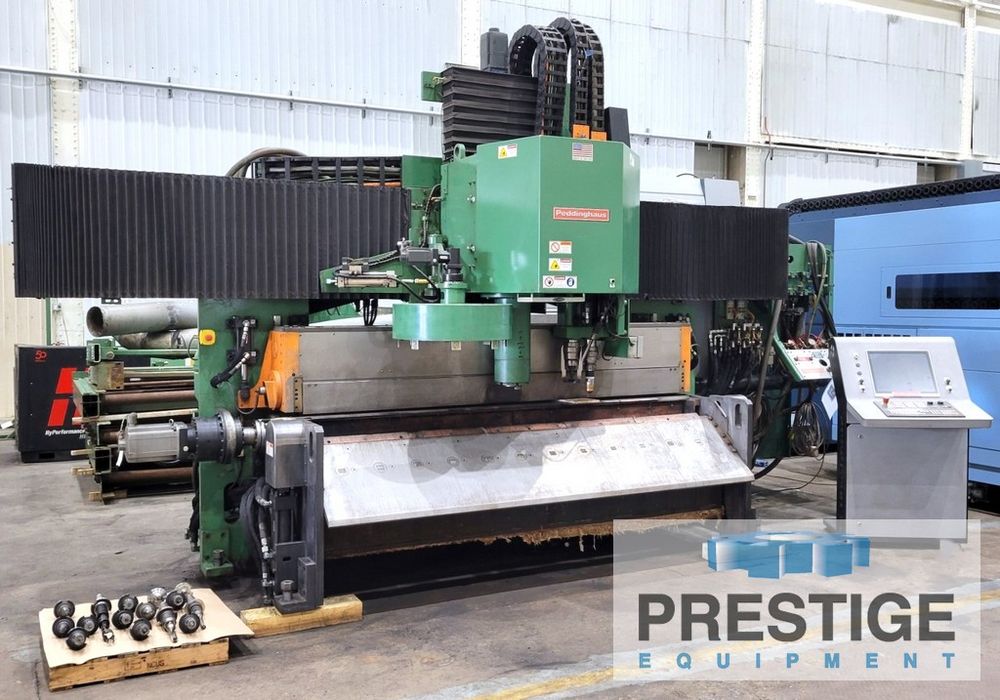

Peddinghaus HSFDB 2500/B Heavy Plate Processer

FEATURES:

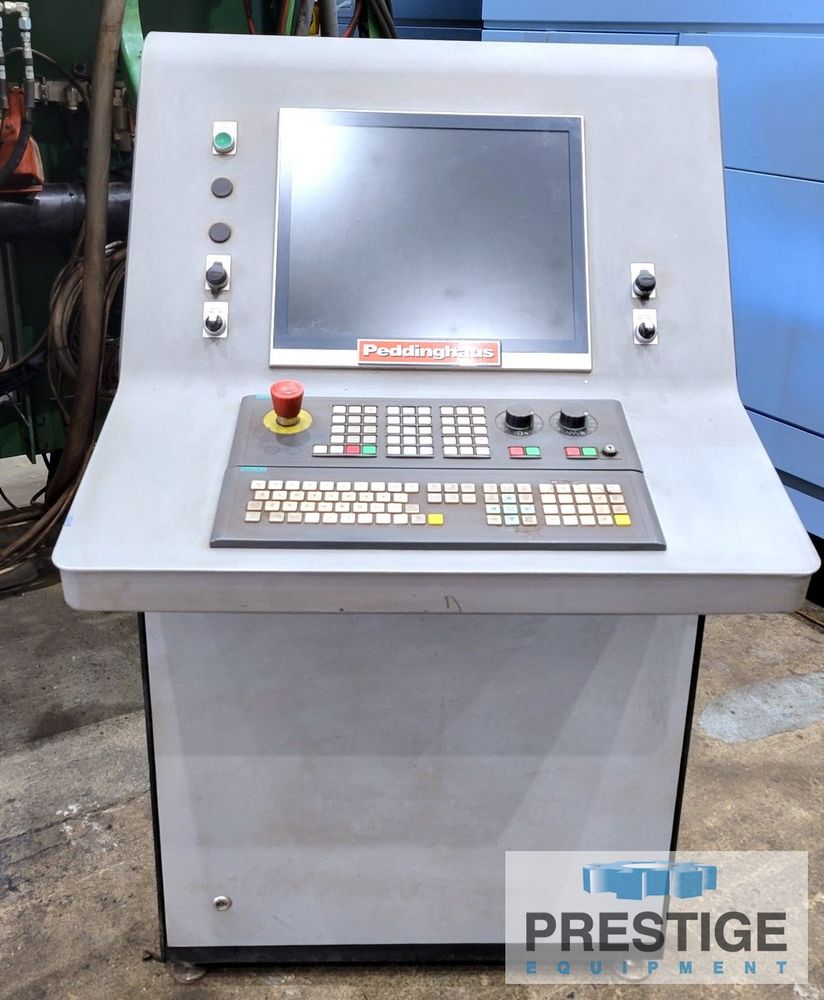

Siemens 840D CNC Control

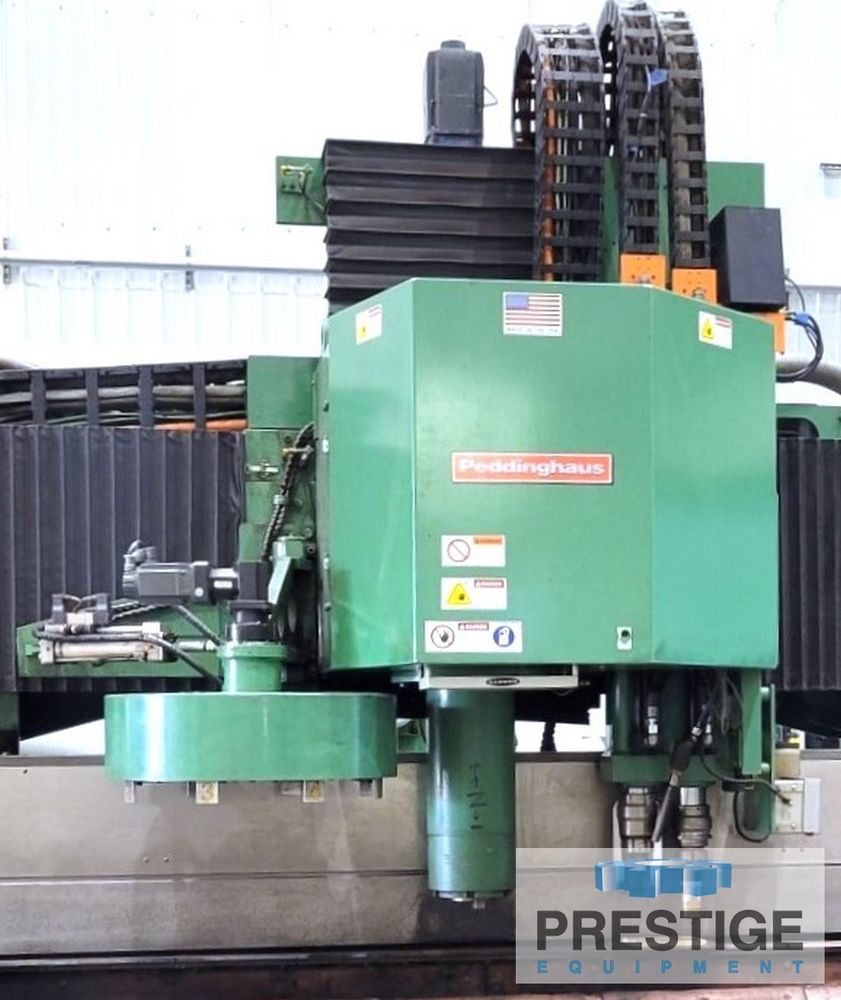

(1) Single Spindle Drill With 8-Station Automatic Tool Changer
(1) Signoscript Carbide Scribing Tool
Automatic Tool Length Measurement
Thru Tool Lubrication System

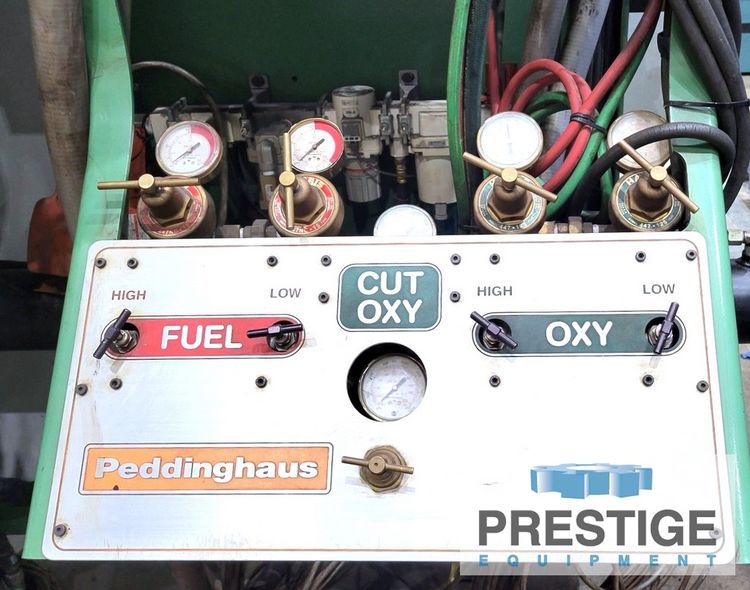

(1) Oxy Fuel Cutting Torch
(1) Plasma Cutting Torch

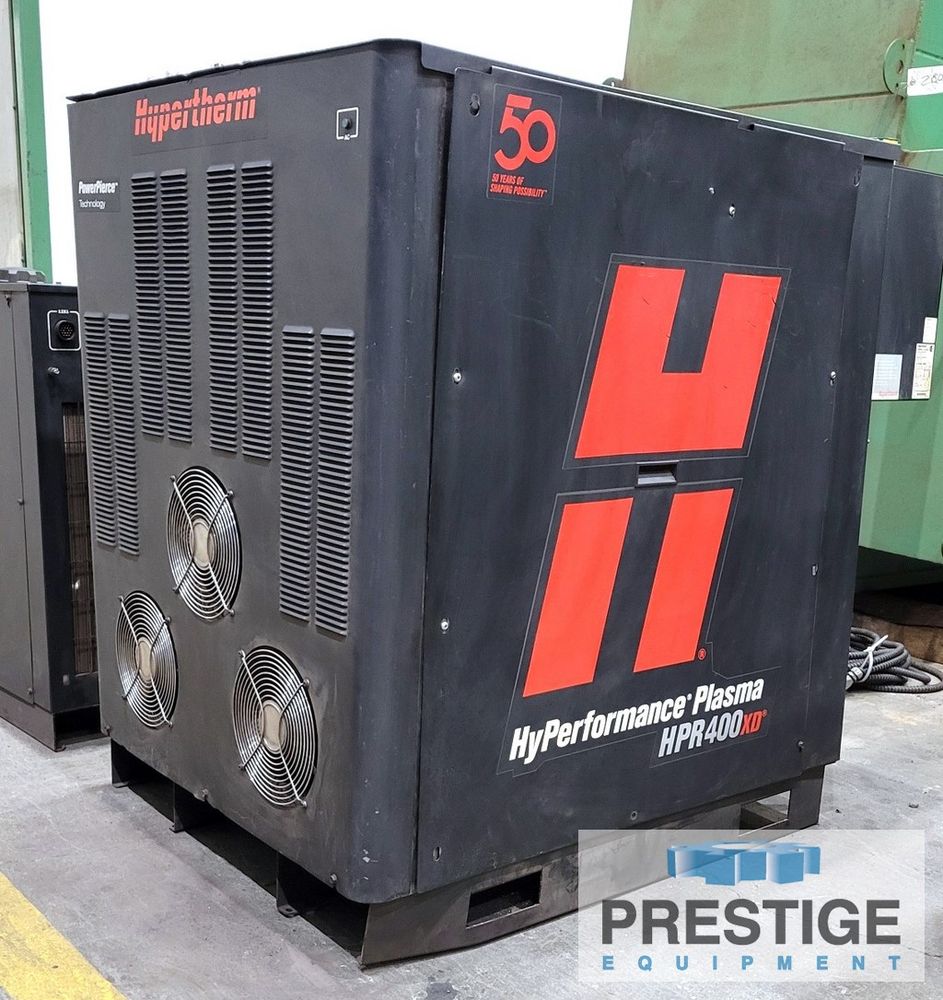

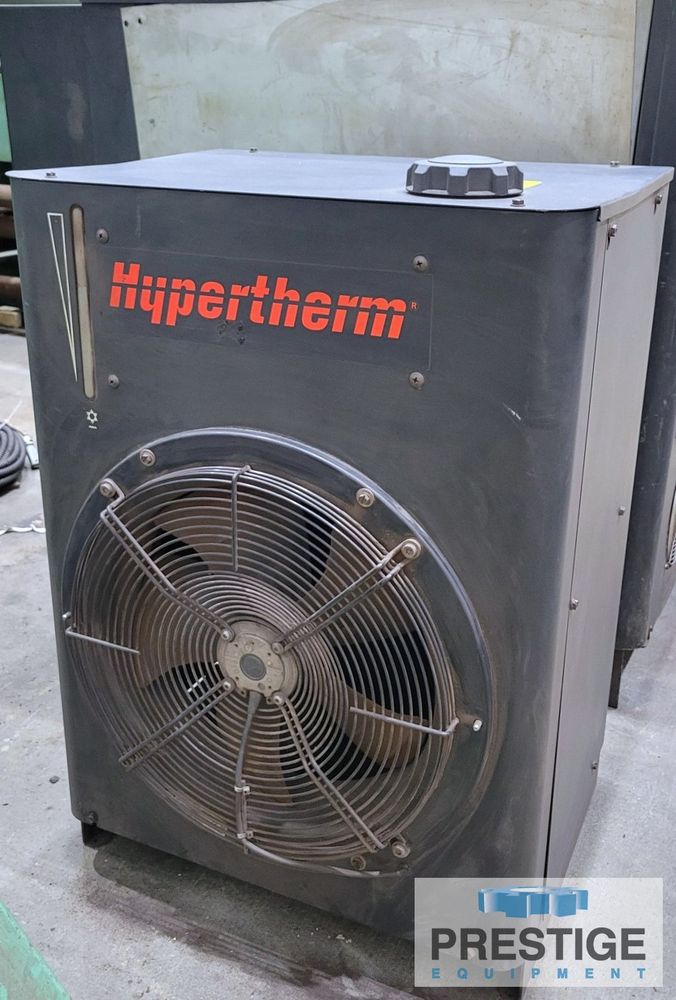

Hypertherm HPR400-XD Plasma Power Supply
20' Infeed Conveyor
Exit Conveyor
Dust Collector

CAPACITY:
Maximum Material Width ................ 96"
Minimum Material Length ............... 52"
Maximum Material Weight ............... 20,000 Lbs.
Spindle Power ......................... 48 HP
Min-Max Plate Drilling Range .......... 1/4" to 3"
Min-Max Plasma Cutting Range .......... 1/4" to 2-1/2"
Spindle Speed ......................... 0-2250 RPM
Available Tools in Tool Changer ....... 8
Spindle Taper ......................... CAT #50
Machine Weight ........................ 35,488 Lbs.

EQUIPPED WITH:
Siemens 840D CNC Control
(1) Single Spindle Drill With 8-Station Automatic Tool Changer
(1) Signoscript Carbide Scribing Tool
Automatic Tool Length Measurement
Thru Tool Lubrication System
(1) Oxy Fuel Cutting Torch
(1) Plasma Cutting Torch
Hypertherm HPR400-XD Plasma Power Supply
20' Infeed Conveyor
Exit Conveyor
Dust Collector

NOTE:
Inspect In Plant
