Peddinghaus AFPS-623C Clipper 2

Reference #44064
Peddinghaus Ocean Clipper 2 CNC Angle, Flat Bar, Punch and Shear Line

FEATURES:
Siemens Simatic HMI CNC Control
(2) 75 Ton Punch Stations

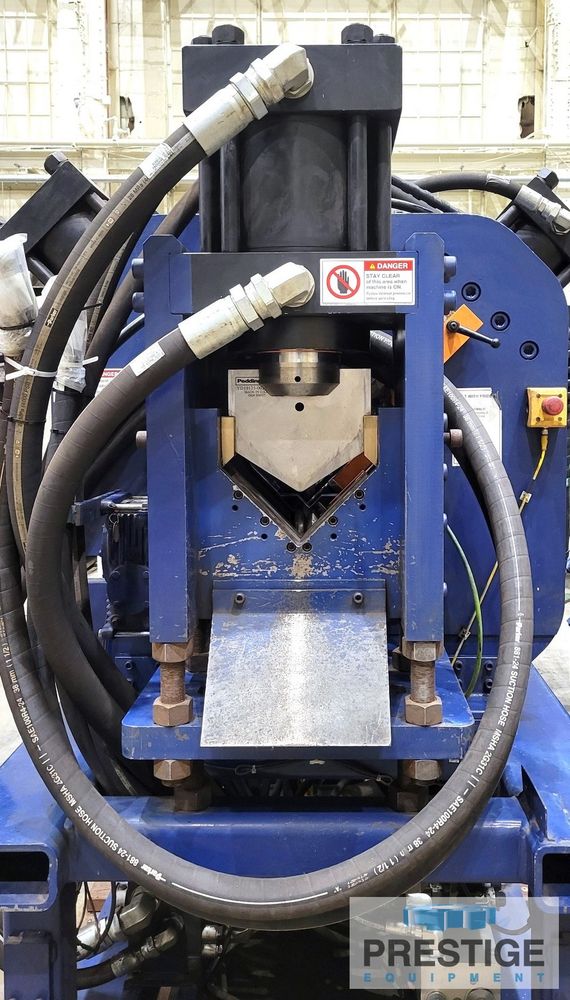

(1) 100 Ton Shear
40'In-feed V-Roller Conveyor

SPECIFICATIONS:
Punch Tonnage Capacity ................ 75 Tons
Shear Tonnage Capacity ................ 100 Tons
Max. Angle Size ....................... 6" x 6" x 5/8"
Min. Angle Size ....................... 1-1/2" x 1-1/2" x 1/8"
Max. Flat Bar ......................... 6" x 5/8"
Min. Flat Bar ......................... 2" x 1/4"
Max. Punch Size ....................... 1-1/4"
Punch Cycle Time ...................... 2 Sec.
Shear Cycle Time ...................... 5 Sec.
Shear Slug Size ....................... 1/2"
In-Feed Speed (X-Axis) ................ 61 FPM
Max. X-Axis Stroke .................... 50"
Approximate Weight (All Components) ... 12,000 Lbs.

EQUIPPED WITH:
Siemens Simatic HMI CNC Control
(2) 75 Ton Punch Stations
(1) 100 Ton Shear
40'In-feed V-Roller Conveyor
Light Curtains
Misc. Punch and Dies

NOTE:
Excellent Condition, Low Hour Machine
