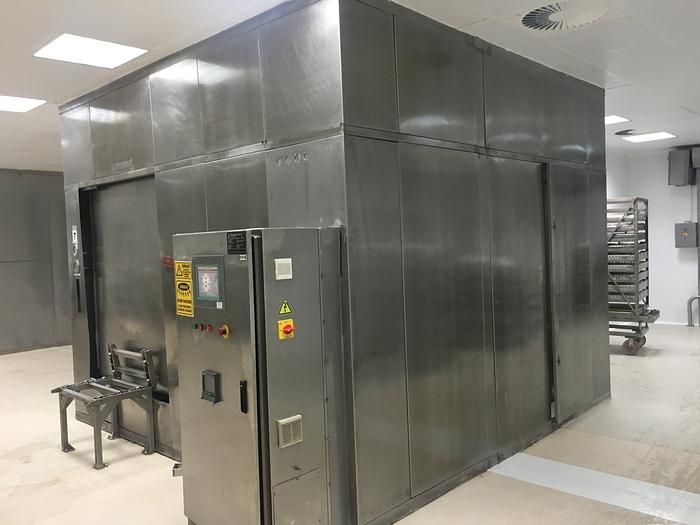

Parmalab Autoclave
EUROPE (Western and Northern)
Real Full-Time Use: 2 years
Dimensions of Autoclave: 3755 mm ( + 50 mm)
(width) x 3430 mm ( +- 50 mm) (length) x 3300 mm
( +- 50 mm) (height)
(In the installation area, 1 meter
clearence should be left for maintenance on the autoclave.)
Dimensions of Loading Entrance: 1070 mm
(width) x 1725 mm (height)
Gross Volume of Loading Area: 8662 litre
Trolley Quantity: 3 pieces
Quantity of Tray in the One Trolley: 12 pieces
Total Quantity of Tray: 36 pieces
Material Quality of Tray: 316 L quality stainless steel
Tray Dimensions: 950 mm x 950 mm 90 mm (height) x 16 mm ( Wall thickness)
Design Standard: ASME section VIII div 1 standard
& pressure protection class standar 97/23/EC
Type of Certificate: CE
Working Pressure: 2,2 kg/ cm³
Design Pressure: 3 kg/cm²
Working Temperature: 105 – 124°C
Hydraulic Test Pressure: 4,5 kg/cm²
