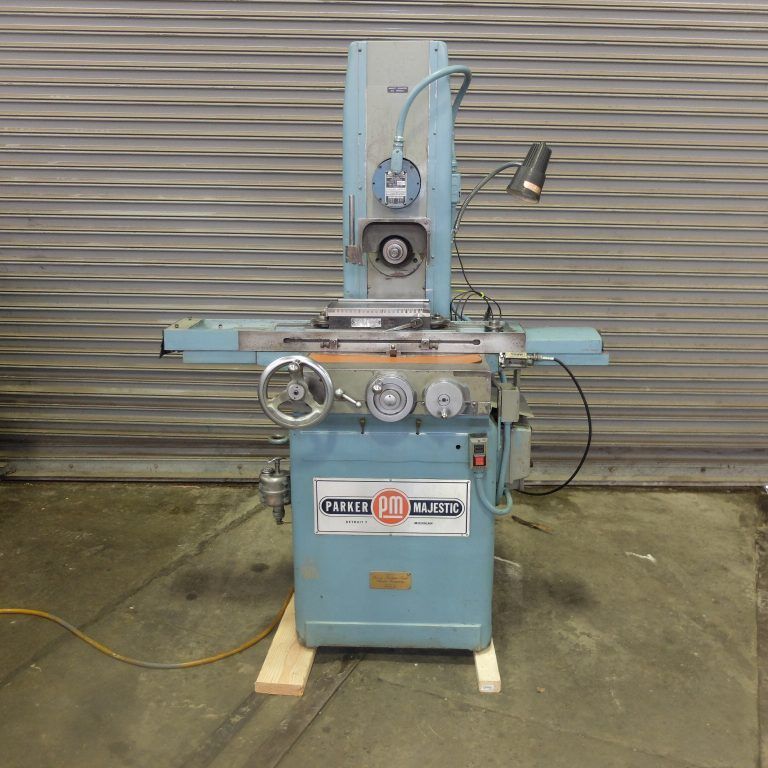

Parker Majestic 2Z

6” x 18” Parker Majestic Hand Feed Surface Grinder
Model 2Z


Table-W 6"
Table-L 18"
Horz/Vert Horz
Power 1.5 hp
Grinding Wheel Width 1"
Grinding Wheel Dia. 10"
Longitudinal Travel 18”
Cross Travel 6”
Vertical Travel 17”
Cross Handwheel Graduation .0001
Vertical Handwheel Graduation .001
Vertical Vernier .0001
Weight 1700 LBS
6” x 12” Walker Chuck
Power Elevation with Counter
3 Speed Spindle – 2200, 2880 & 3600 RPM
1 HP Spindle Motor Wired 220 Volt 3 Phase
One Shot Lube
Hand Feed with Tape Drive
