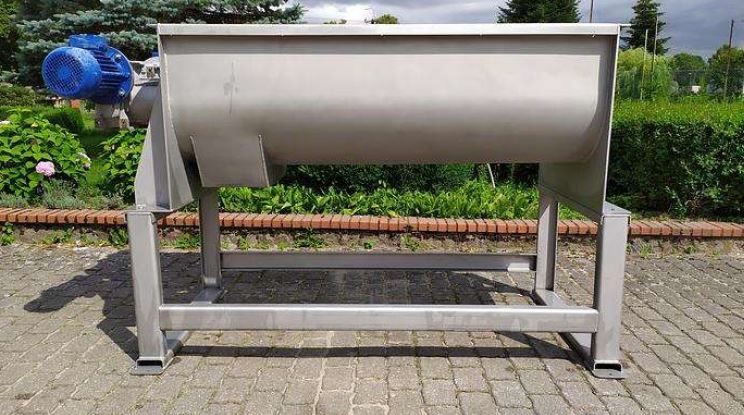

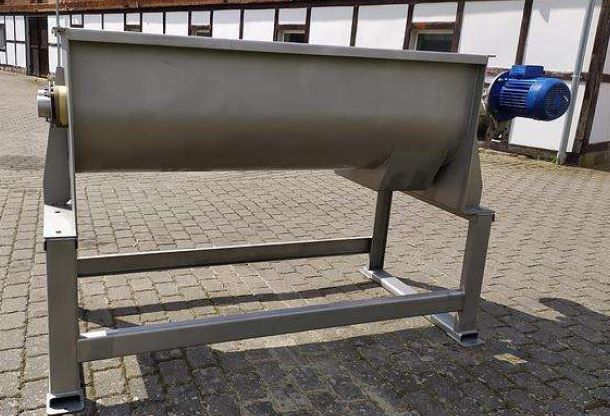

Paddle Mixer

Dimensions:
- Length: 2,350 mm;
- Width: 1,280 mm;
- Height: 1,700 mm.

Technical data:
- Internal dimensions of the chamber:
- Length: 1,800 mm;
- Width: 770 mm;
- Depth: 550 mm.
- Top cover with holes;
- Diameter of the top holes:
- ⌀ 200 mm: 1 piece;
- ⌀ 120 mm: 1 piece.
- Rectangular opening dimensions: 420 x 360 mm;
- Bottom unloading dimension: 500 x 300 mm;

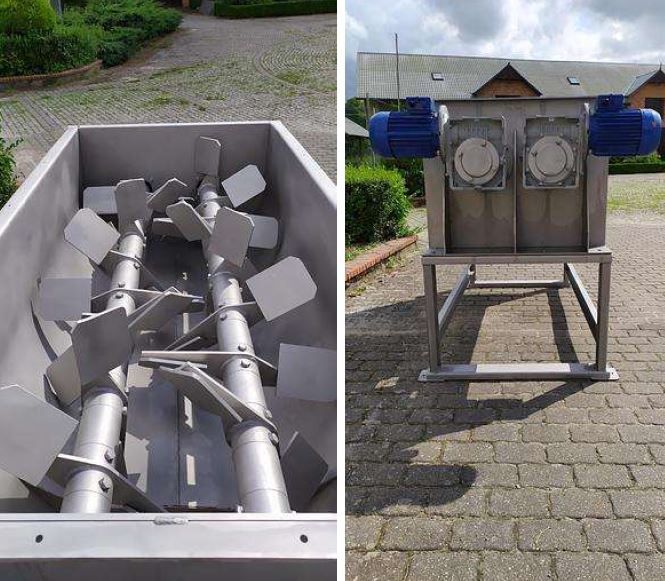

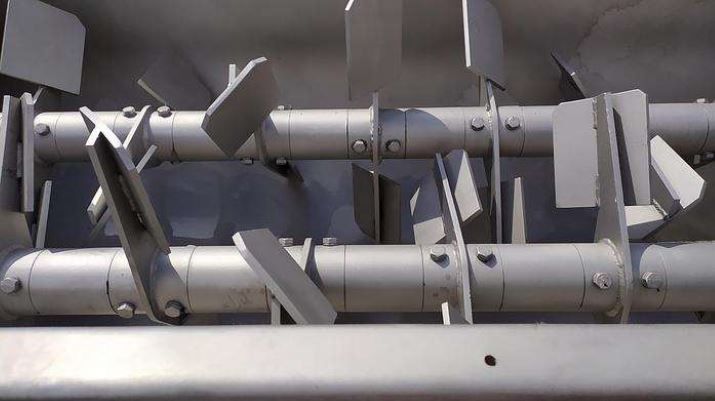

- Two paddle agitators;
- Agitators driven by two separate motors;
- Engine - gear motor - 2.2 kW - 1,420 U / min ;
- Length of the paddle: 1,900 mm;
- Stainless version.
