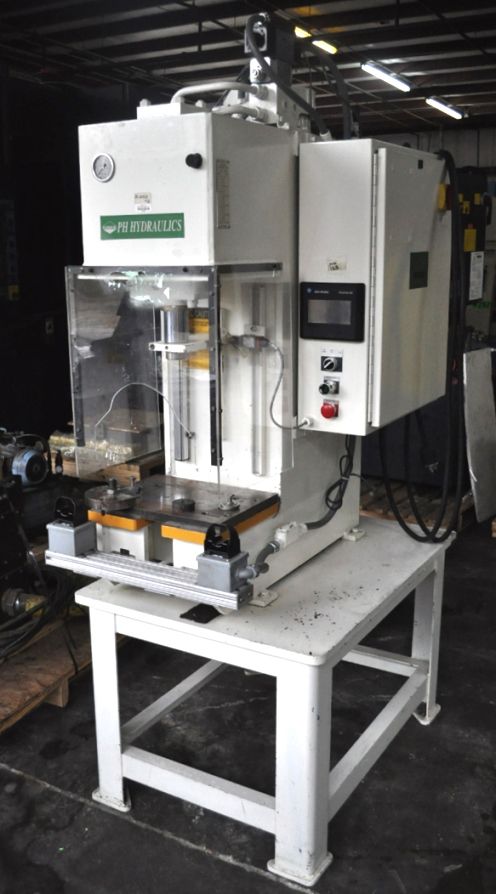

Others PHN-15, Hydraulic Press Machine Max. 15 ton

Ref : 1003905-3-W

Condition : Used

Manufacturer : Others

Model : PHN-15, Hydraulic Press Machine

Pressure : Max. 15 ton

Year(s) : 2002

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Last check : 16 Nov. 2024

Model: PHN-15
Year: 2002
Hydraulic Press Machine

Features/Specs
Tonnage 15 tons
Stroke 12”
Daylight 18”
Throat 8”
Bed size 16” LR x 13 1/2" FB
Bolster size 16" x 12" x 1" thick
Optional U-slot in bed 3" wide x 7 1/2" deep
Ram speed - advance 402 IPM
press 148IPM
open 257 IPM
Cylinder bore diameter 4”
Ram diameter 2 1/2”
Rerservoir 22 gallons
Motor 10 HP, 1,800 RPM
Approximate overall dimensions 44” FB x 32” LR x 78"H
Approximate weight 2,000 lbs.

Details
Machine is equipped with Allen Bradley Panel View 550 control
adjustable tonnage control, adjustable stroke, factory heavy duty bench mount
dual palm buttons, tonnage gauge
