Others Flagler High Speed Quadformer
Ref :
1003983-3-CP
Condition :
Used
Manufacturer :
Others
Model :
-
Short Description :
Flagler High Speed Quadformer
Year(s) :
1991
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Last check :
02 May. 2020
Year: 1991

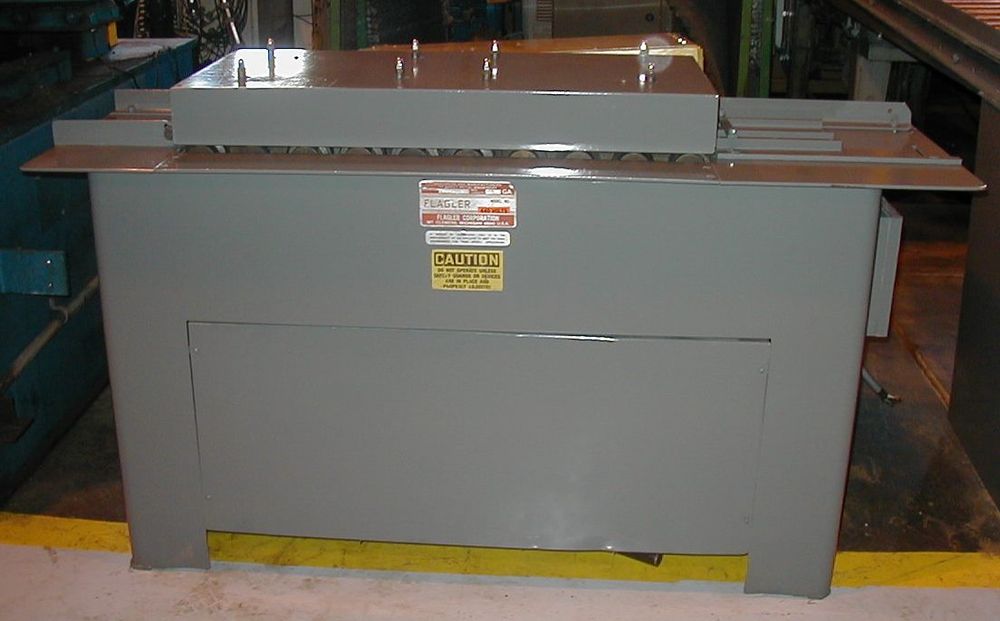

Flagler High Speed Quadformer
Features/Specs
Number of roll stations 10
Capacity 22 ga.
Center position forming
S-cleat & 1 1/8" Drive Cleat
Line speed 100 fpm
Motor 5 HP
Drive Double matched V-belts
Feed table height 34 5/8"
Dimensions 68" x 24" x 44" high
Weight 1,050 lbs
Details
Machine is equipped with male and
female button lock rolls on outside shafts
