Others 13,500 Litres Stainless Steel Reactor

Ref : 1170837-8-CP

Condition : Used

Manufacturer : Others

Capacity : 13,500 Litres

Short Description : Stainless Steel Reactor

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Last check : 28 May. 2015

”Used 13,500 Litre Stainless Steel Reactors”

Description:

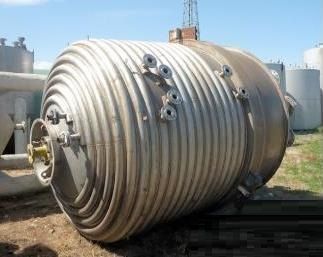

• Used 13,500 Litre 316 Stainless Steel Reactor
• Orientation: vertical, cylindrical
• Dished top and bottom with side supports
• Dimensions: 2400mm diameter, 3350mm over dishes.
• Design data: 3.8bar design pressure
• 200degC design temperature
• 10bar coil working pressure
• Vessel is jacketed with limpet coil and
• Comes complete with a top mounted agitator
• and drive,15 kw 1450 rpm flp motor.
• Reeves gearbox with Ruba model 533h- d- 15 variable
• speed gearbox giving10 to 53 rpm on shaft.
