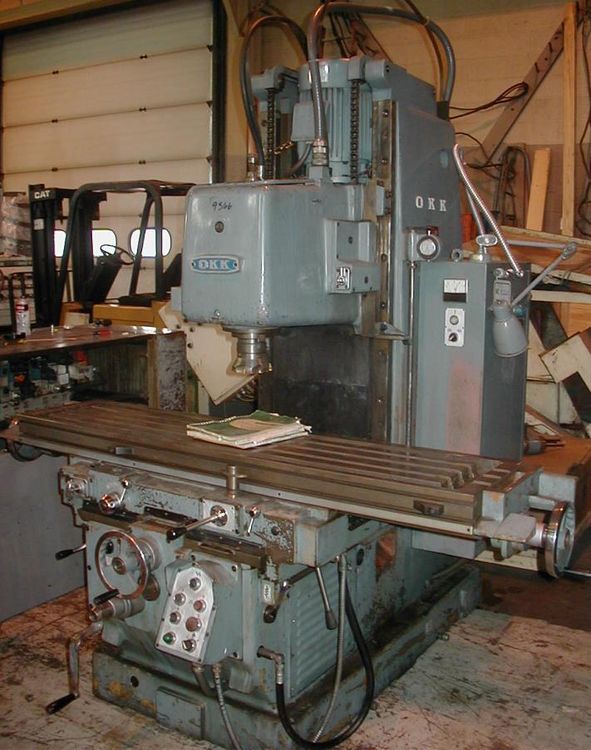

OKK MH-3VII Milling Machine Max. 1,600 rpm

Ref : 1003793-3-W
Condition : Used
Manufacturer : OKK
Model : MH-3VII
Type : Milling Machine
Spindle Speed : Max. 1,600 rpm
Year(s) : 1982
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 16 Nov. 2024

Brand: OKK
Model: MH-3VII
Year: 1982
Milling Machine

Features/Specs
Table size 65” x 15”
Max longitudinal travel 36 1/4”
Max saddle cross travel 13 3/4”
Spindle speeds (12) 45 - 1,600 rpm
Table feeds (12) 7/16 - 69 ipm
Power rapid traverse (long. & cross) 125 ipm
Vertical travel of head 15 3/4”
Power rapid traverse of head 50 ipm
Spindle nose to table 4” - 21 3/4”
Spindle center to column 16 1/8"
Spindle taper #50
Spindle motor 10 HP (Toshiba)
Feed motor 2 HP
Dimensions 90" LR x 78" x 100" high
Weight 9,500 lbs.

Details
Machine is equipped with 8" vice
9" diameter double compound rotary fixture, 3 axis power feed
monolever table control, table travel trip dogs, hardened box way construction
back lash elimator, auto table cycle, turret depth stop w/ dial
misc. tooling, manuals
