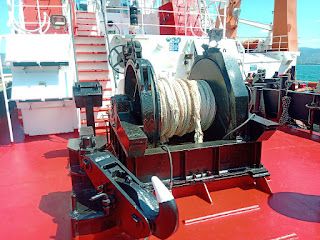

Norwinch Type 1S-15-1T Fully working towing winch, Hydraulic motor W1475-65, with remote control system

Ref : 2509988-10-MT
Condition : Used
Manufacturer : Norwinch

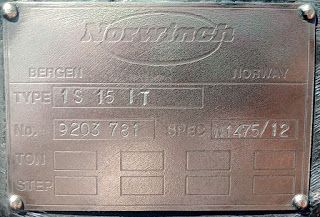

Model : Type 1S-15-1T
Short Description : Fully working towing winch, Hydraulic motor W1475-65, with remote control system
Year(s) : 1992
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Hydraulic motor W1475-65
staple, fairleads
performances as per constructor, with actual pumps are:
1 range 15 tons at appr. 0-25,5 m/min
2 range 6 tons at appr. 0-51,0 m/min
slack rope speed 0-56 m/min

components:
-1 towing drum
-1 warping head
-1 clutch
-1 hydraulic/manual brake

El. Hydraulic remote control system

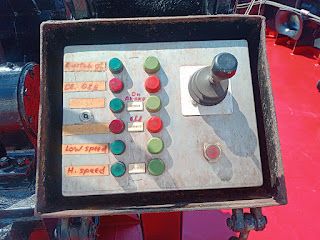

towing winch remote controls:

one remote control panel for bridge
one slave unit

both with function as follow:

-speed control
-heave/lower
-range selectors (with visual lights)
-brakes on/off (with visual lights)
-clutches in/out (with visual lights)
-quick release of wire
-start/stop of pumps units type N/A 210 and N/A 40
