Niles Engine Lathe 180 RPM DPS/1
AMERICA North (USA-Canada-Mexico)
Reference #22882
PRELIMINARY SPECIFICATION

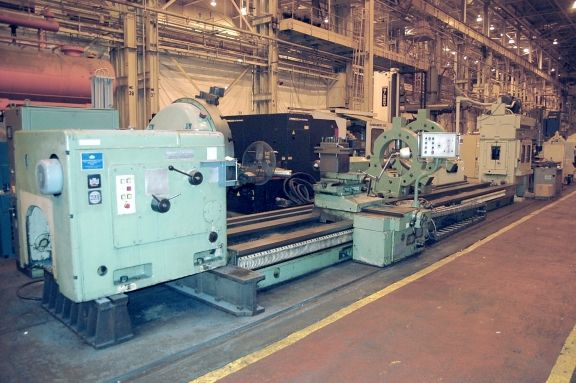

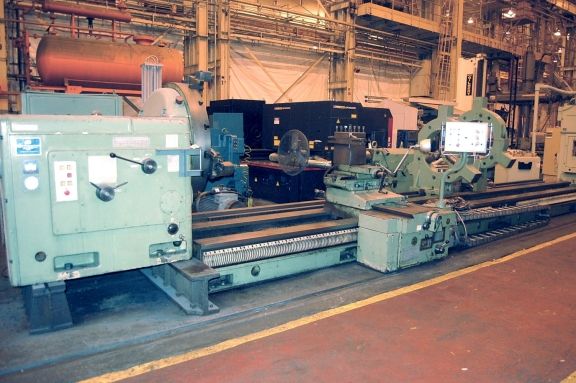

74" x 315" WMW Niles Engine Lathe
Serial Number: 35-0474
Age: 1977
Model: DPS/1 1400X8000/1
Maximum Swing Over Bedways ............ 74.80"
Maximum Swing Over Carriage ........... 61.02"
Distance Between Centers .............. 314.96"
Maximum Swing In Gap .................. 108"
Spindle Hole Diameter ................. 3.93"
Spindle Speeds ........................ 3.55-180 RPM
Number of Speeds ...................... 18
Feeds ................................. .0002-.629 IPR
Number of Feeds ....................... 24
Rapid Traverse ........................ 196.85 IPM
Threading-Inch ........................ .187 to 1 IPR
Threading-Metric ...................... 160 MM
Threading-Module ...................... 48 MM
Weight Capacity Between Centers ....... 17,600 Lbs
EQUIPPID WITH:
49" Diameter Face Plate Chuck With 4-Jaws
Pendant Operator Station on Carriage
3-Way Heavy Duty Cast Bed
Carriage To Pass Steady Rests and Tailstock
Inch & Metric Threading

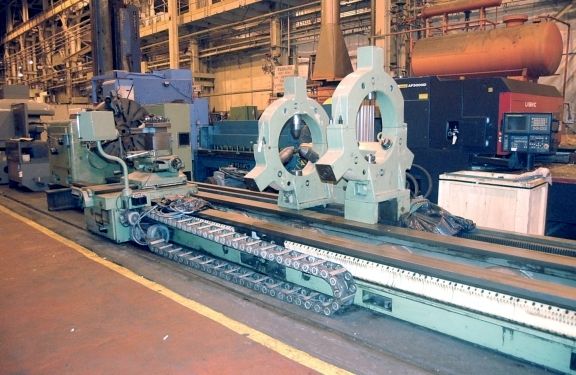

2-Heavy Duty Steady Rests
Independent Feed Drives
Hardened Ways
45 HP Spindle Motor
