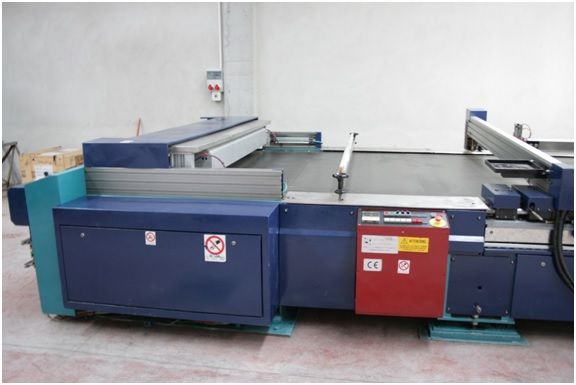

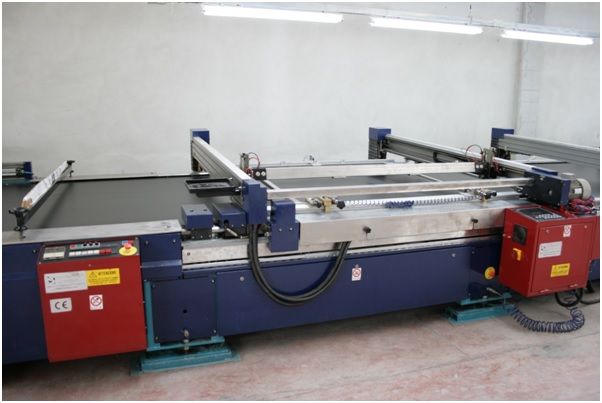

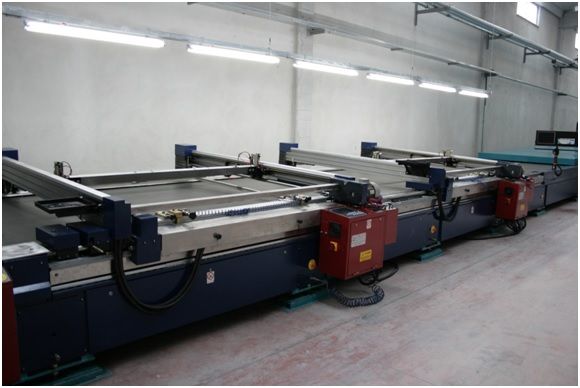

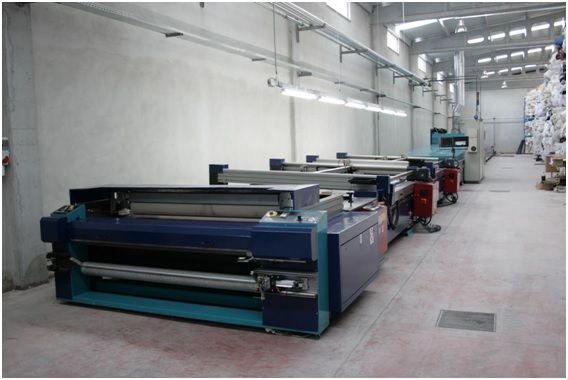

MS 160 Cm rotary printing table
EUROPE (Western and Northern)
Fully overhauled, composed of:

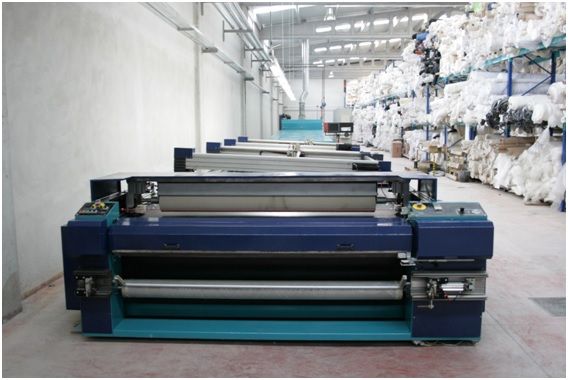

1 Laying group, assisted by automatic selvedge alignment and fabric collection by little rolls drived by basic software.
2 Computerized printing stations with push button.
2 Dryers steam heating, 5 fixed drying compartments.
1 Printing plan with new net.
1 Belt Washing group in stainless steel, with rotary brushes.

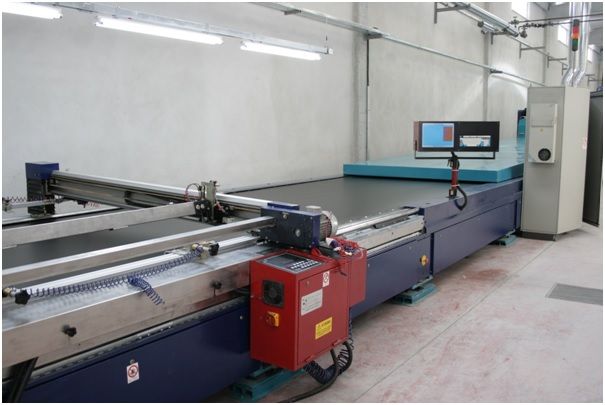

1 Electronic panel unit with new PC and monitor LCD 17”.
1 New belt – brand Forbo Siegling / Habasit – dimensions: about 80 x 2,2 m.
2 Blades of 80 m., rivets, bearings and nails for joint.
Fabric rolls dimensions that can be used in Laying : up to 240 m.
Printing working width: 160 cm.
Printing working length: 80 m. about
Printing blades: 2
Printing width: 160 cm. max
Dryers: n.2 , with steam/oil feeding.
Operator side: Left/right
Volts: 380 Volts /50 Hz/3ph 35 kw.
De-oiled and dehumidified air: 8 bar.
Clean and filtered water: 3 bar min.
