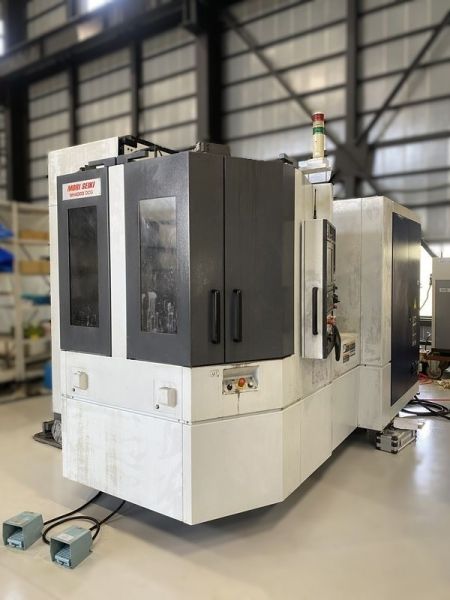

Mori Seiki NH4000 DCG 4 Axis

MORI SEIKI NH4000 DCG
Year 2005

Controller : MSX-501 (FANUC-18iMB)
Table size/number : 400 square / 3 pallets
Table indexing angle : 0.001° degree indexing
Load weight : 400 kg
Max. work swing diameter : φ630 mm
Travel X : 560　　Y : 560　　Z : 630 mm　　B : 360°
Spindle taper hole : BBT40
Spindle speed : 14,000 rpm
Tool storage capacity : 120 stations

Required floor space: 2,864×3,755 mm
Height: 2,830 mm
Machine weight: 9,600 kg

Renishaw touch probe
Automatic tool length measurement 　　　　　
Chip conveyor: Rear discharge (scraper type) 　　　　　
Mist collector
Helical interpolation 　　　　　
One-way positioning 　　　　　
Rigid tap
Custom macro B
