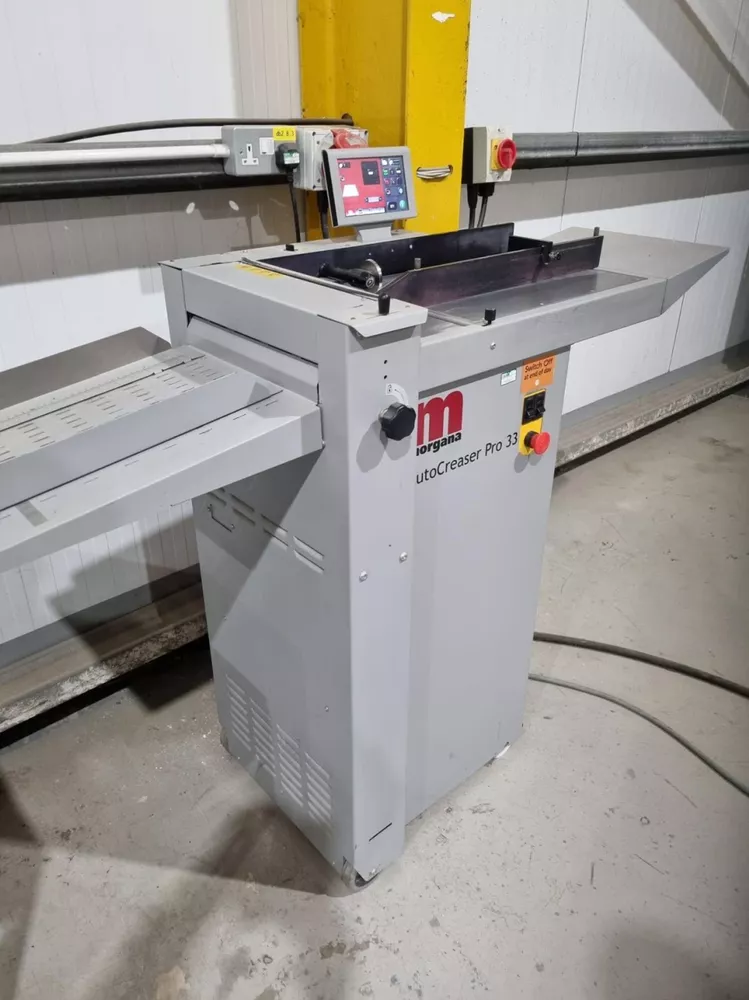

Morgana AutoCreaser Pro 33 (CB)

Controlled by the innovative 7” Smartscreen
The Morgana AutoCreaser Pro is the fastest model in class.
The Morgana AutoCreaser Pro 33 is a fully automatic suction-feeding creasing system designed for use with both conventional litho and digital printers.
The feed on the AutoCreaser Pro 33 can also be manually operated for use with heavy stock, very small or very large sheets, embossed or even irregular sheets.
The blade and anvil are mechanically controlled over their entire length
and can be adjusted to accommodate various weights of media.

Specification:
Max. Sheet Size: 700mm x 330mm (27.5” x 12.6”)
Min. Sheet Size (in automatic mode): 210mm x 140mm (8.5” x 5.5”)
Max. Paper Thickness: 0.4mm (varies according to hardness,
type of fold, and substrate)
Max. No. Creases per Sheet: 16
Min. Distance Between Creases: 0.1mm
Max. No. Stored Programmes: Unlimited
Min. Crease Distance from Leading Edge: 2.5mm
Min. Crease Distance from Tail Edge: 35mm
In Hand Feed Mode up to 2499.9mm to Last Crease can be Programmed.
Speed per Hour (A4 in half): 8500
Speed per Hour (A5 in half): 11000
Dimensions: L: 1450mm H: 1224mm W: 522mm
L: (57”) H: (48.2”) W: (20.5”)
Weight: 121Kgs
Power Requirement: 1 phase 220 / 240v / 50/60hz AC
