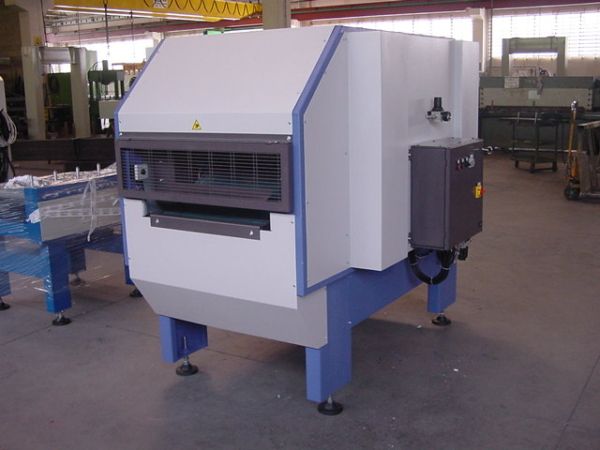

Monguzzi 515
EUROPE (Western and Northern)
Veneer packet opener
Machine to form a fan with the sheet metal packets thus separate the sheet metal sheets and prevent them from picking up each other
Characteristics sheet metal packages
Maximum width of wood veneer packets 515 mm
Characteristics of the machine
Rotating speed of the top strap, approx. Adjustable from 7 to 37 m / min.
Bottom rotation speed of the belt, approx. 30 m / min was corrected.
Roller roll size 120 mm
Installed Electric Power 3 KW / 10 A
Connection data
Electric power 400 V / 50 Hz
Compressed air 6 bar
DIMENSIONS AND WEIGHT
Length 2300 mm Width 1600 mm Height 1850 mm
Height of the work table 950 mm +/- 40 mm
Net weight, approx. 1500 kg
Colors of the machine
Blue NCS-S4040-R70-B
Warm Gray (Light) NCS-S2502-R
Warm Gray (Dark) NCS-S7502-R
