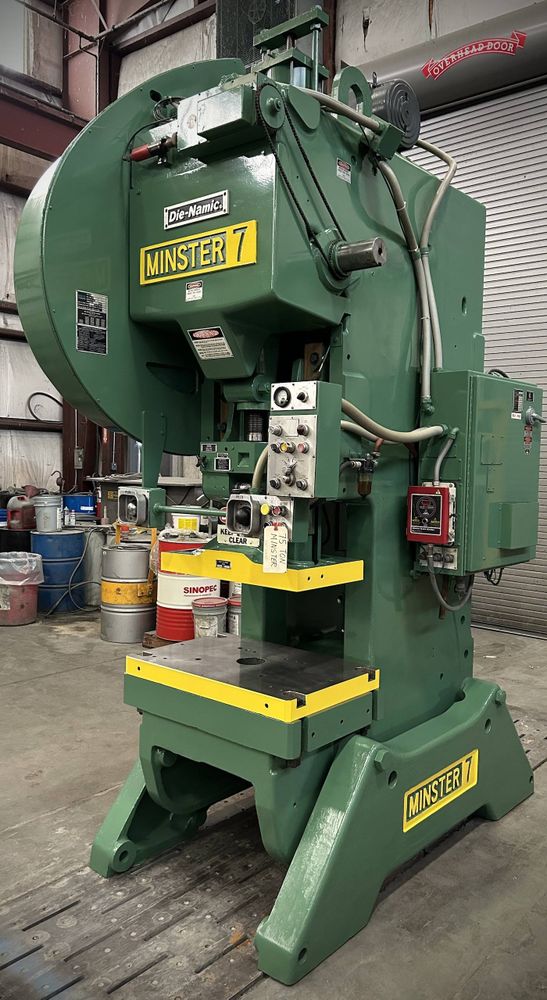

Minster 7-SS Press 75 TON

Minster 7-SS Press
Year: 1980

CAPACITY 75 TON
STROKE 4″
MAX SHUT HEIGHT TO BED 21″ SDAU
BED AREA 36″ RL X 24″ FB
SPEED 90 – 180 SPM
RAM ADJUSTMENT 3.75″ MOTORIZED
RAM AREA 30″ RL X 17″ FB
BOLSTER PLATE 3″ H X 36″ RL X 24″ FB
DIST UPRIGHTS / FLOOR TO BED 18″ / 33.5″
CLUTCH MINSTER AIR CLUTCH / BRAKE COMBINATION
ELECTRICS 15 HP 1700 RPM 240/480V-3-60 EDDY CURRENT MOTOR & MINSTER RELAY CONTROL
APPROX DIMENSIONS 12′ H X 6′ RL X 8′ FB
APPROX WEIGHT 17,000 LBS
Equipped With AIR COUNTERBALANCED RAM
