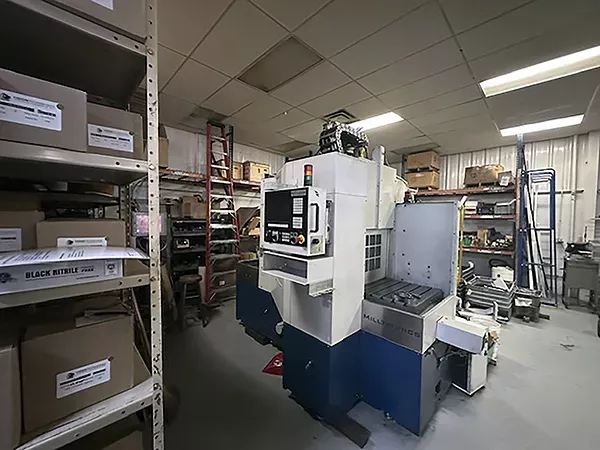

Milltronics TT24 3 Axis

Milltronics TT24
YEAR: 2013


X Axis Travel: 23″ (585 mm)
Y Axis Travel: 25″ (635 mm)
Z Axis Travel: 20″ (510 mm)
Table Size: 22″ x 26″ (560 mm x 660 mm) (2)
Allowable Table Load: 2000 lbs. (900 kg)
T-Slot Size: .63″ (16 mm)

Spindle Gage Line to Table: 4″-24″(100-610 mm)
Spindle Taper: ISO No. 40 Big Plus®
Spindle speed (Std): 10,000 RPM
Spindle speed (Opt): 15,000 RPM

AC spindle motor (Std): 24/15 HP (18/11 kW) Inline Delta/WYE
AC spindle motor (Opt): 35/25 HP (26/18 kW) Inline Delta/WYE
Spindle torque (Std): 85 ft-lbs(115 N.m)
Spindle torque (Opt): 122 ft-lbs(165 N.m)
Axis thrust force X/Y,Z: 1000/2000 lbs (450/900 kg)

Spindle Speed: 10,000 RPM
ATC: Type Double Arm
Number of Tools: 24
Tool Shank: CT40
Max. Tool Diameter: 4″
Max. Tool Length: 11″ (280 mm)
Max. tool weight: 15 lbs. (7 kg)
Max. Cutting Feedrate: 500 IPM (12.7 m/min)

LEAST COMMAND INCREMENT: 0.0001″ (0.001 mm)
Positioning Accuracy: +/- 0.0002″ (+/- 0.005 mm)
Repeatability: 0.00015″ (0.0038 mm)
