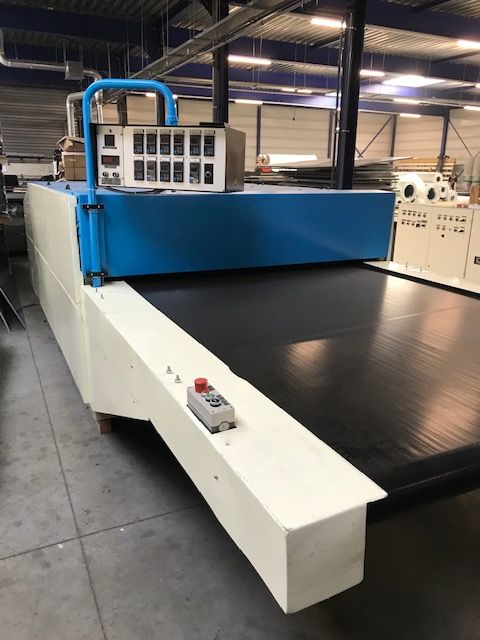

Meyer lamination machine

yoc: 1992 – refurbished in 2021
ww: 1.8 m

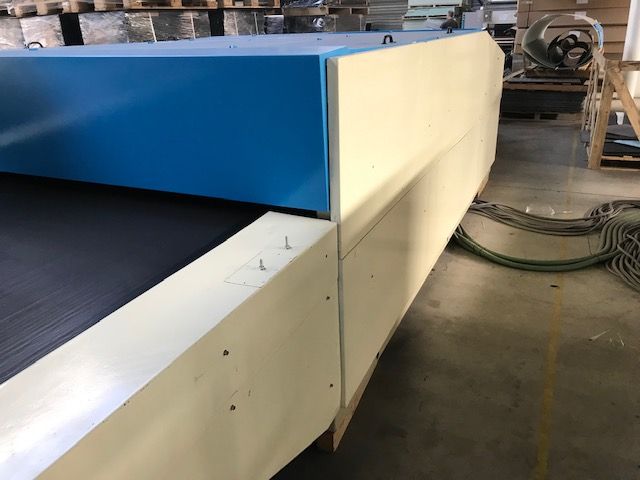

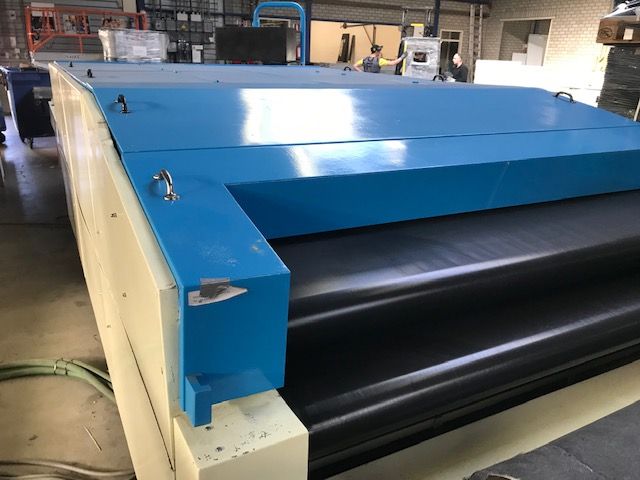

Double belt
Length of heating zone: 2000 mm
Length of cooling zone: 1200 mm
Max temperature: 220 C
Max height: 150 mm
Max pressure 18 N/cm2
Speed: 0.5 - 15 m / min
Minimum temperature of cooling zone: 15 C, lower may lead to condensation

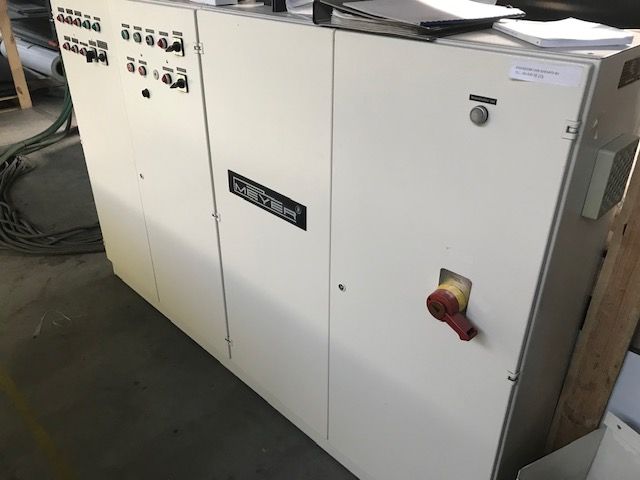

The machine has a heating output of 72.8kW and cooling output of 58kW.

Main fields of application of the flat-bed laminator

- automotive (head liner, seats, door panels, rear parcel shelf, carpet, bonnet insulation, heat and noise absorbent parts)
- insulation
- noise damping
- home textiles (wall-coverings, carpets, furniture textiles, curtains, foot fear)
- the wide range of technical textiles
- luggage
- apparel applications


Substrates with impermeable coatings (with PUR, PE. PVC-films) or heat fusible coatings (for further two three dimensional processing) can also be produced

All documents available
