Meyer FLUME WASHER SYSTEM

with DEWATERING shaker & PUMP,
all stainless steel
an open-trough flume washer and water-conveyor / transfer system
for washing, rinsing, chilling, conveying and sanitizing leafy vegetables,
diced, sliced, and chopped or even whole fruits & vegetables
such as berries. Non-mechanical designprovides gentle action
while releasing sand, stone and floating debris.

SYSTEM FEATURES:

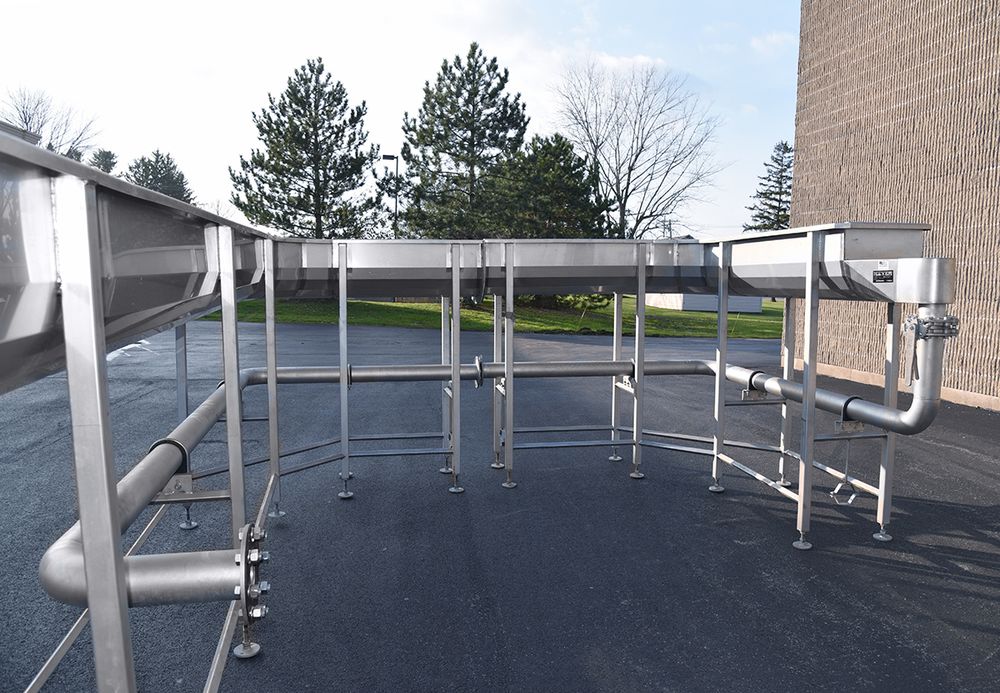

MEYER HYDROWASH flume conveyor.
U-shaped 18 inch wide by 15 inch deep by 40 foot overall length flume.
Designed for 9 inch minimum water depth.
64 inch infeed height, 54 inch high discharge as currently configured.
Tubular stainless steel support frame with adjustable foot pads.
Baffle gate on water inlet.
30 inch wide discharge flare.
Food grade sanitary stainless steel construction.


MEYER Vibra-Flex II Model VFII/SDC-36 DEWATERING SHAKER DISCHARGE CONVEYOR
36 inch wide by 78 inch long vibratory conveyor bed with 6 inch high sides.
Sloped 12 inch long dimpled / rigidized solid infeed section.
Two (2) interchangeable SCREEN SECTIONS one after the other. Both are removable perpendicular 1/8 inch wedgewire / tri-rod screen panels, each 36 inch wide by 27 inch long with 1/16 inch sieve.
Quick-release clamps for fast, tool-less screen replacement.
13.5 inch long dimpled / rigidized solid discharge section.
56 inch infeed height, 49 inch high discharge.
Full length bottom collection pan with 6 inch center bottom outlet.
Food grade sanitary stainless steel construction.
Shaking action driven by two (2) 1/3 HP rotary / centrifugal vibrators.
208/230/460 volt 3 phase electrical input.

SUMMIT MODEL CC 4x5-8 RECIRCULATION PUMP
Centrifugal pump with close couple design.
Manufacturer rated for 500 gallons per minute -- pump curve available.
Stainless steel impeller and painted ductile iron housing.
Flanged 5 inch inlet / 4 inch discharge connections.
7.5 HP (1770 RPM) wash down motor.
Mounted on stainless steel base plate with threaded adjustable feet.
208/230/460 volt 3 phase electrical input.

STANDALONE CONTROL PANEL - stainless steel, with safety lockout, on/off and emergency stop switches for pump, and discharge shaker.
Previously used as a washer-chiller in an industrial pre-cut produce / fresh-cut salad processing operation.
