Messer TMC4512 Global Plus CNC

Reference #31365

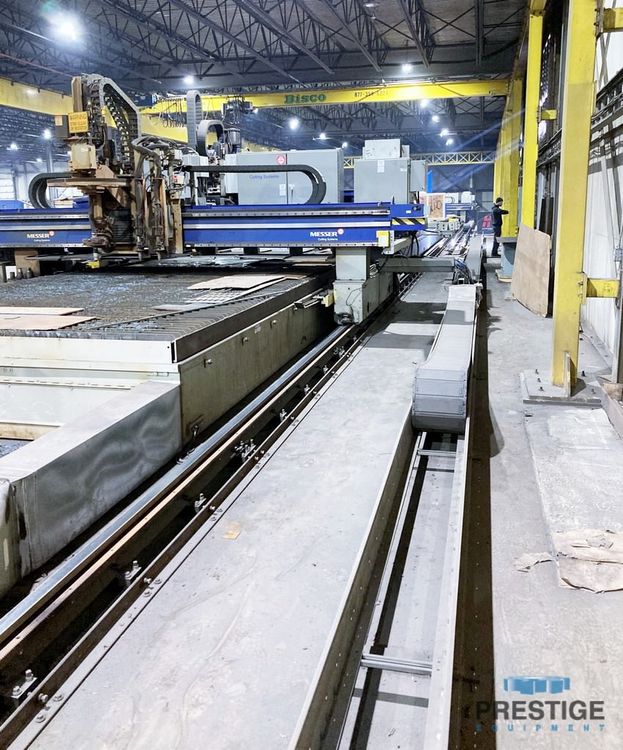

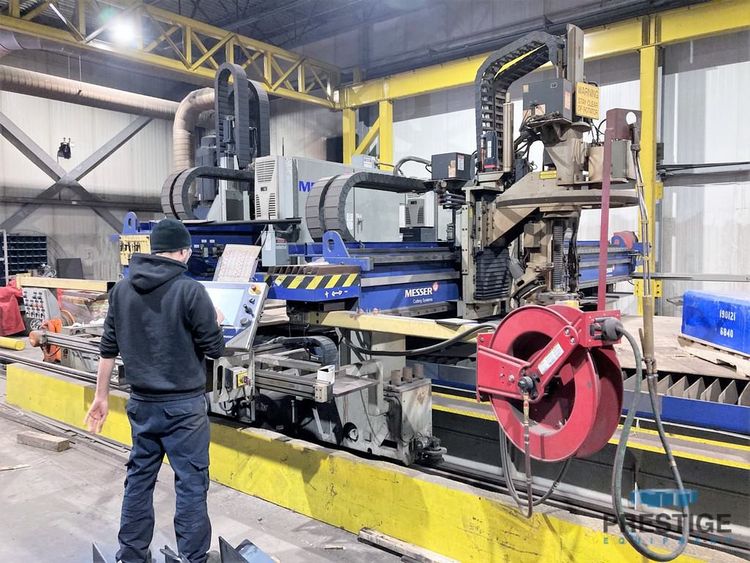

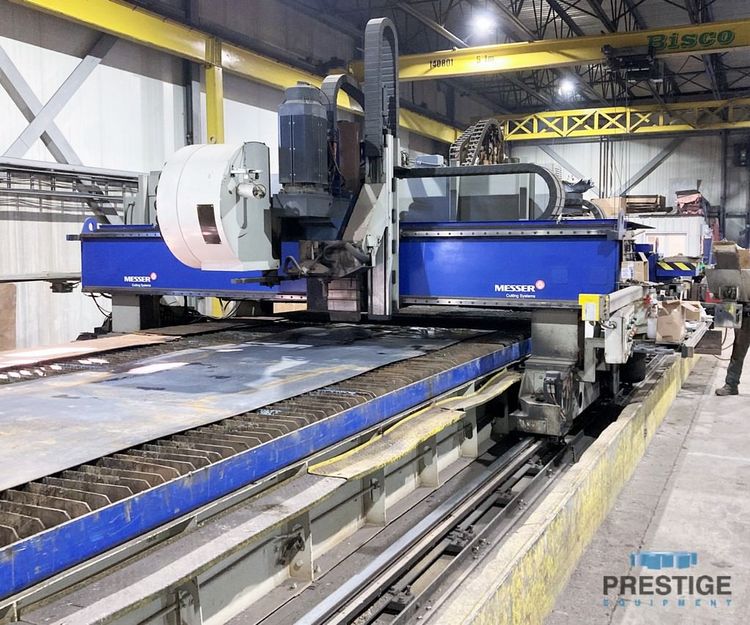

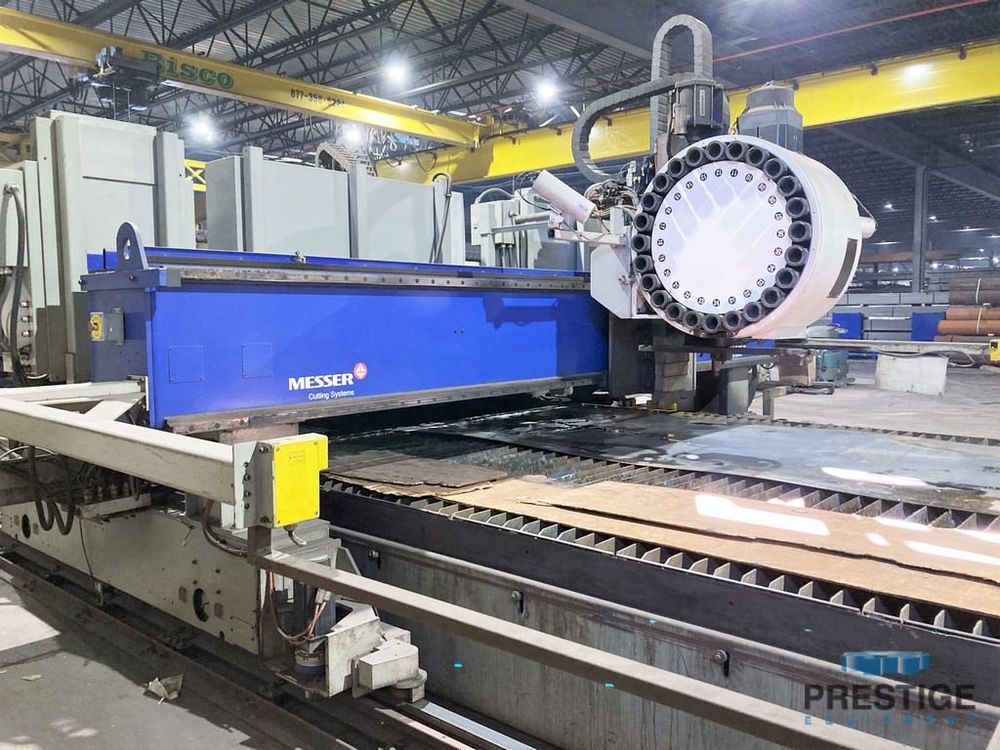

Messer TMC4512 Plate Cutting System, (2) Gantry's On Shared Slagger Table

FEATURES:
Unique Opportunity, (2) Gantry's On Shared Slagger Table
Each Gantry Has a 5-Axis Plasma Head, (2) Oxy Torches & 65 HP Drill

CAPACITY:
Max. Cutting Width .................... 10'
Rail Centers .......................... 15'
Rail Length ........................... 192'
Effective Cut Length, Each Gantry ..... 102'
Table Base Width ...................... 12'4"
Max. Diameter Drill Capacity .......... 4"
Drill Spindle Taper ................... CAT 50
Max. Positioning Speed ................ 1000 IPM

EQUIPPED WITH (each Gantry):

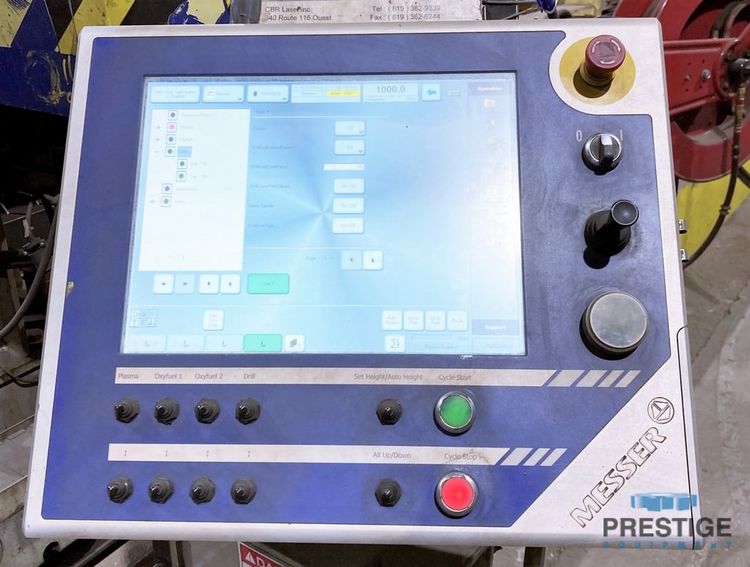

Messer Global Plus CNC Control

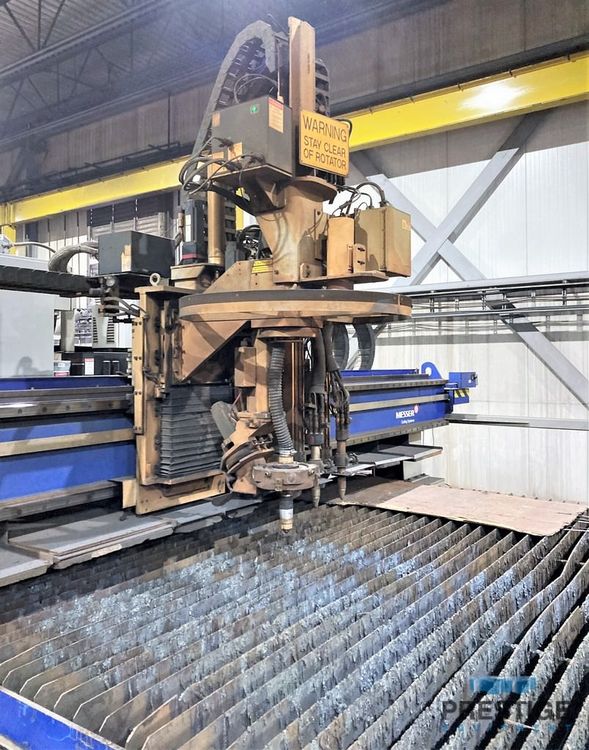

5-Axis Contour Bevel Plasma Torch Station
(2)Oxyfuel Torch Stations

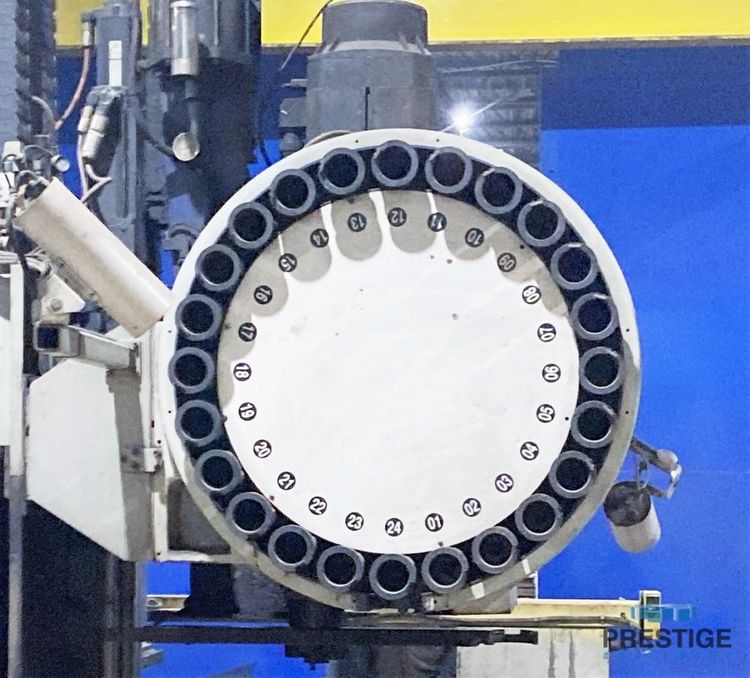

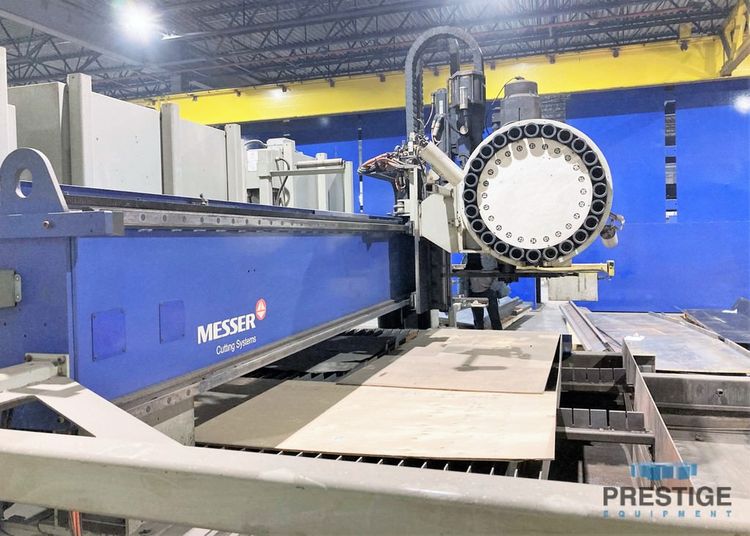

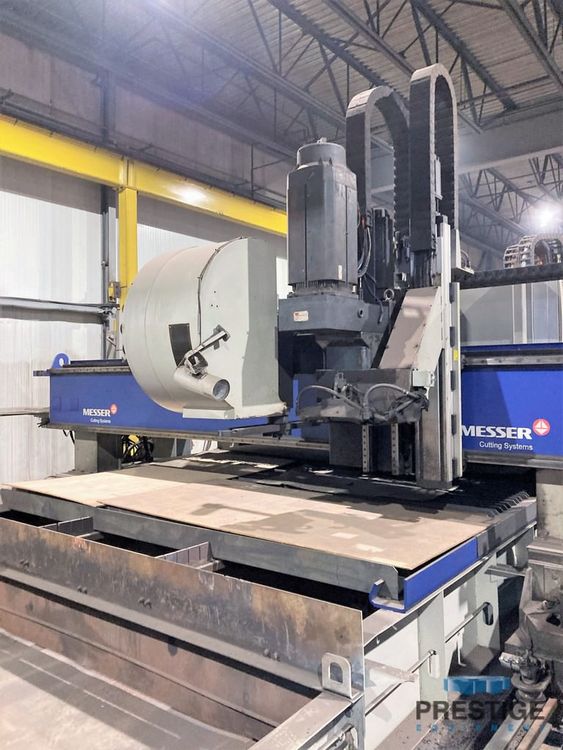

65 HP Drill With 24-Station ATC
Hypertherm HPR400XD Plasma Unit
Dust Collector

NOTE:
Both Gantry's Share (1) Slagger Single Blade Self Cleaning Down Draft Cutting Table

NOTE:
Inspect In Plant Under Power
