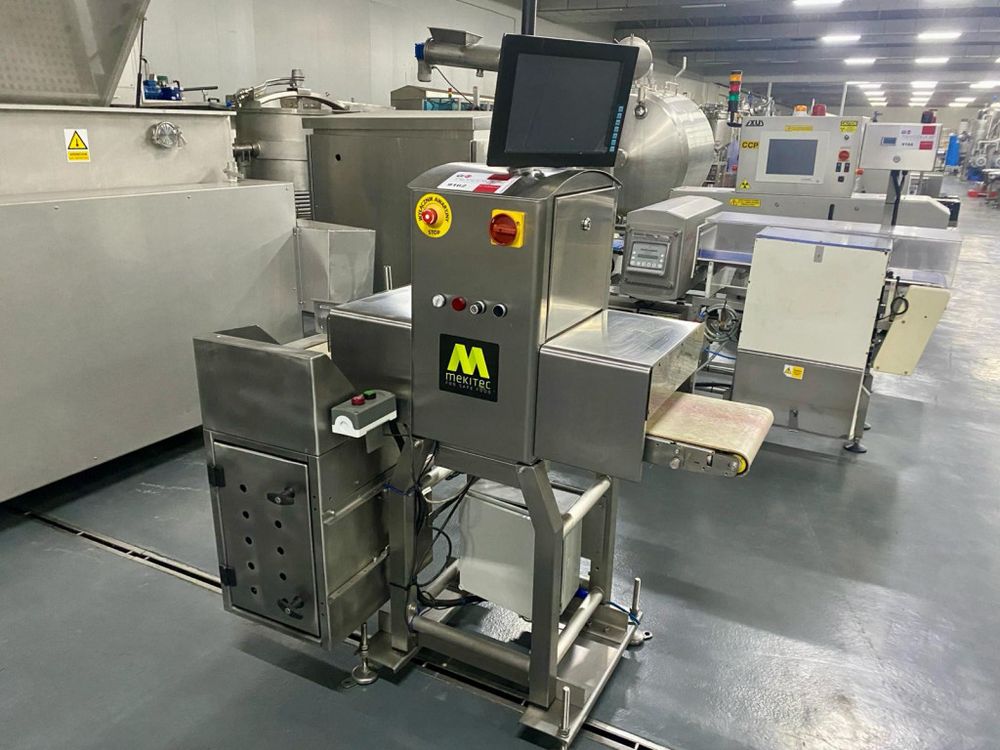

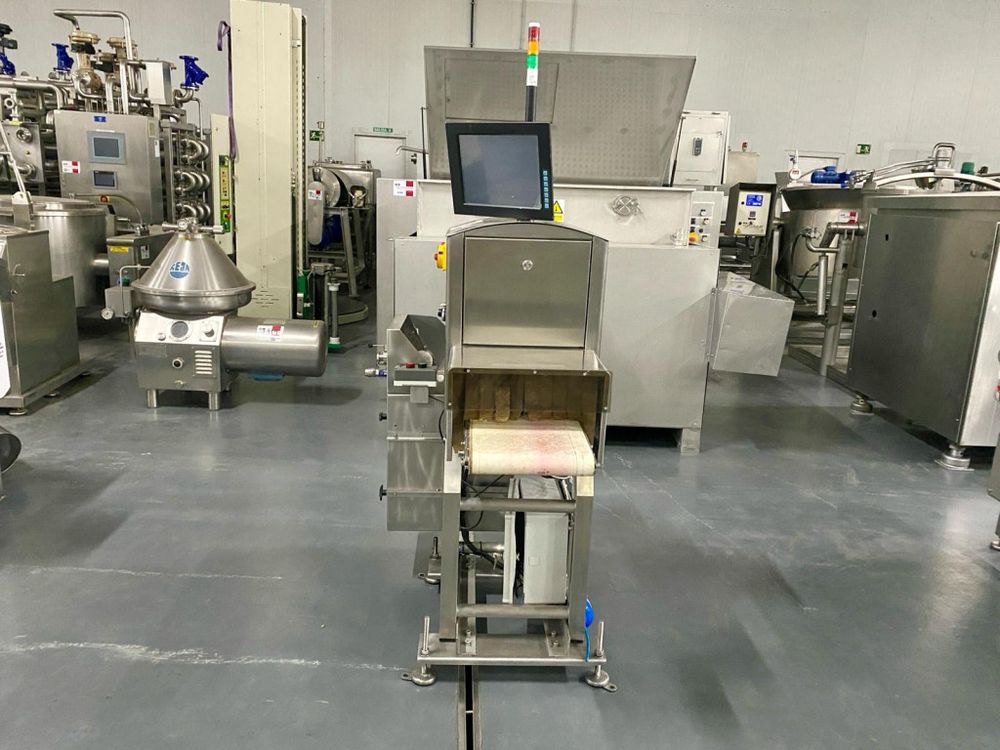

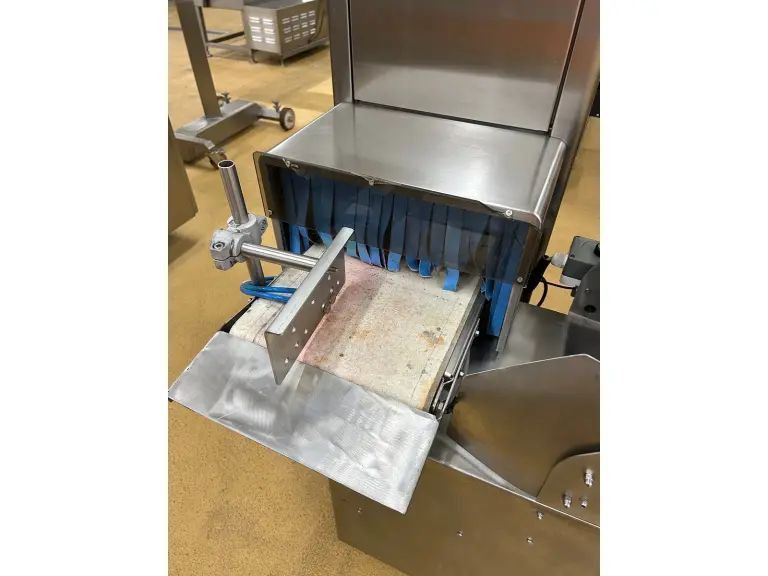

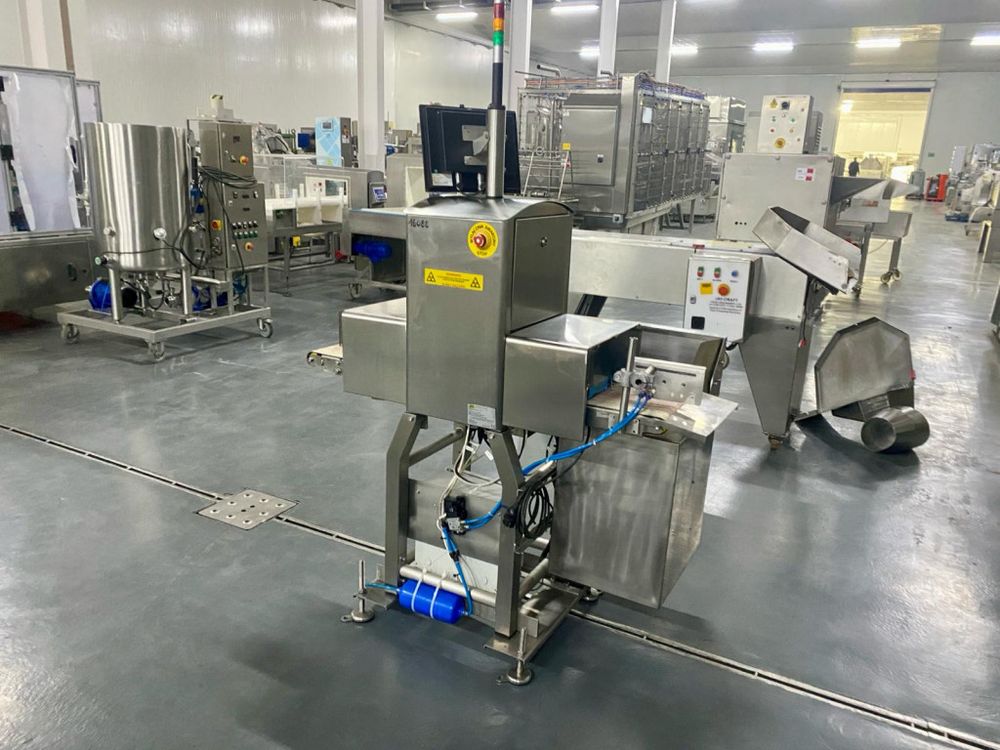

Meki System X-ray Inspector

Meki System xray inspector inspects food products
and removes foreign objects quickly and accurately.
Using the latest in X-ray imaging
and processing technology, the MEKI system allows you
to detect even the smallest metal contaminants (from 0.6mm),
stone fragments and glass splinters, high-density plastics,
and a variety of other foreign objects,
resulting in 100% food quality control.

MEKI is particularly designed to work even with frozen food,
or food wrapped in aluminum or other metallic packaging.
Small, compact, and easy to install,
MEKI can be seamlessly integrated into virtually
any production line—perhaps the most distinct feature
of our industrial X-ray equipment.
The MEKI X-ray inspection system helps
you maintain consistent product quality,
meeting the global standards of quality control
in the food industry.

Detection area: 250 mm x 110 mm
Conveyor speed: min. 0.1 m/s; max. 1.3 m/s
X-ray power: 40-60 kVp, 0.1–2.5 mA, max 100 W
X-ray leakage: less than 1 ?Sv/h
Detector: Linear scanner, resolution 0.4 mm
Operating system: Windows XP
Software: Mekitec X-Ray Inspection System SW
Connectivity: USB, Ethernet
Operation temperature °C: 0 - 35
System power supply: 110/240 VAC, 50–60 Hz
Dimensions (W x D x H) 480mm x 515 mm x 2000 mm
Net weight:75 kg
Material: Stainless steel, brushed
Band dimensions: 430x250 mm
Accepts packages up to size 300x250 mm

Width 800 mm
Height 1900 mm
Length 1300 mm
Weight 75 Kg
Brand Mekitec
Manufacture year 2017
