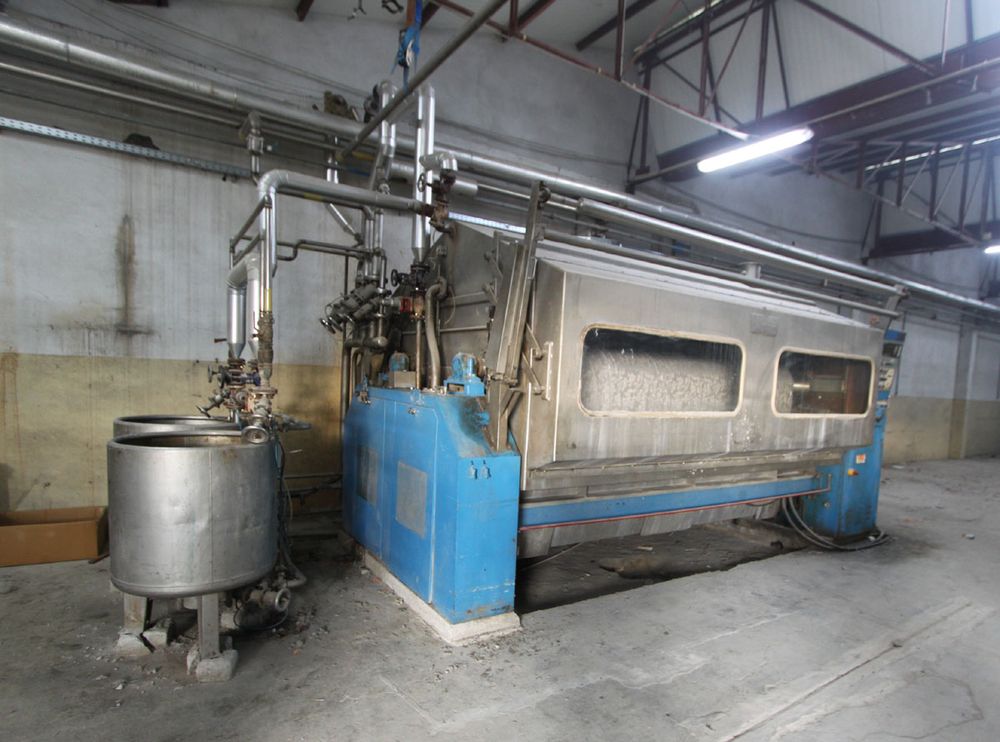

Mcs Maxi jigger

hydraulic dyeing jigger
roller width 340 cm, working width 320 cm
maximal winding diameter 1400 mm
maximal dyeing temperature 98 ºC

dye cycle controller TERMOELETTRONICA type JTronix JP70tc

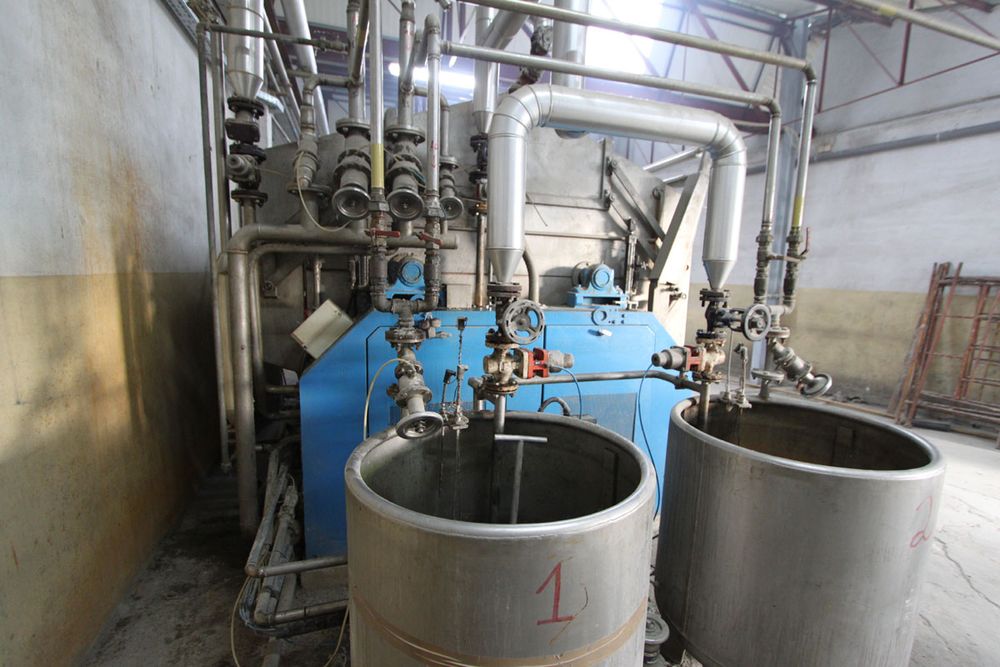

2 addition vats
loading capacity in linear meters is calculated with the following formula 1400/fabric thickness in mm
constant fabric speed for the whole batch adjustable from 15 to 150 m/min.
constant fabric tension for the whole batch adjustable from 10 to 60 Kg
through entirely build in stainless steel AISI 316
doors with hydraulic lifting
indirect heating via external heat exchanger
direct or indirect cooling,
hood with steam coils to prevent condensate dropping,
