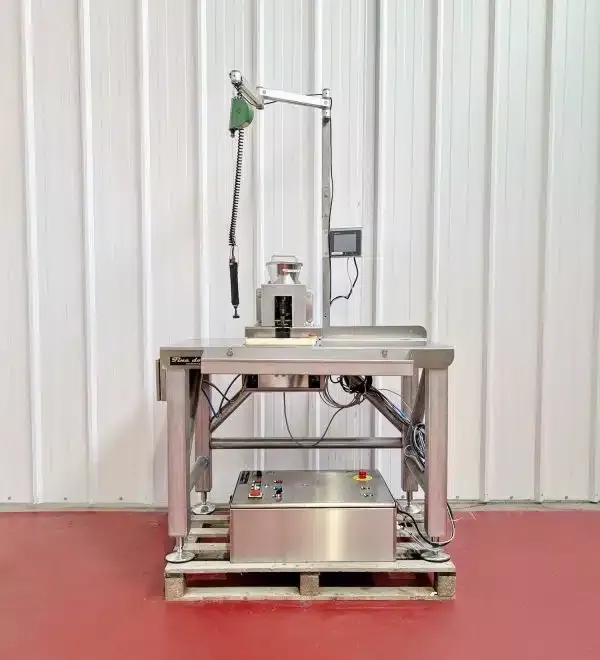

MCPI OPTI-FEEDER FD – SPA – class 2A

Type : Micro dosing machine / Precision dosing machine

Type of product : powder / granules, dry form
Type of dosing : weight by batch in gravimetric mode
Weight measurement chain : Weighing scale / Precision weigher

Hopper: 2 litres
Filling of doser storage hopper: Manual
Electronic weighing control and management
Extractor outlet cross-section: 80 mm
Dosing sequence: 3 dosing speeds (coarse, medium and fine) to optimise the precision / dosing speed ratio
Dosing quality monitoring (+ and – tolerance interval)
Scale measurement resolution: 10 mg (0.01 g)
Minimum dose (estimate): 250 mg
Maximum dose (estimate): 500 g

Memory for 800 different dosing recipes
Trigger: hand sensor
Results retrieved on USB key, and analysed in Excel.
Control unit: Unit built to CE standards. All control and command elements are integrated into this box (controller, PLC, drive, safety devices, switches, etc.). Power supply: 220V – single-phase
Doser / control box connection: direct

Materials in contact with the ingredient : 304L electro-polished stainless steel.
Construction according to GMP rules

Manual electric screwdriver
Machine dimensions: 95 x 75 x H 170 cm
