MCF-500 High capacity automatic strawberry capper

Brand Seditec
Volts (v) 400 Vca
Power (hp) 50 Kw
Made up of Stainless steel and food grade plastics
Production capacity 400 kg/hour per line*6= 2400 kgs per hour

The MCF-500 strawberry capping machine
is a great technological advance,
allowing complete automation
of the process with high production
and maximum performance.
The feeding of strawberries to the machine
is done by directly pouring the bulk boxes onto
the dosing hoppers, and automatically the machine doses
and processes the strawberries individually,
getting the effective separation of fruit
and waste products, achieving an optimal stripping
to have a quality strawberry for further processing or freezing.

In addition, the automatic line
with MCF-500 cappers stands out for its flexibility,
high degree of automation, simplicity of operation
and maximum efficiency in cutting.
Its innovative design, its robust construction,
made of stainless steel and food-grade plastics
allows easy cleaning and hygienic processing
of the product.

Within this line, each machine has
two independent product loading zones,
assisted by feed hoppers.
The machine performs the cutting
of the strawberry calyx continuously,
achieving the effective separation of fruit
and waste products.
The processed product is then discharged onto
a conveyor belt.

The machine is able to process a wide range
of shapes and sizes of cutters, only its preliminary calibration
is necessary.

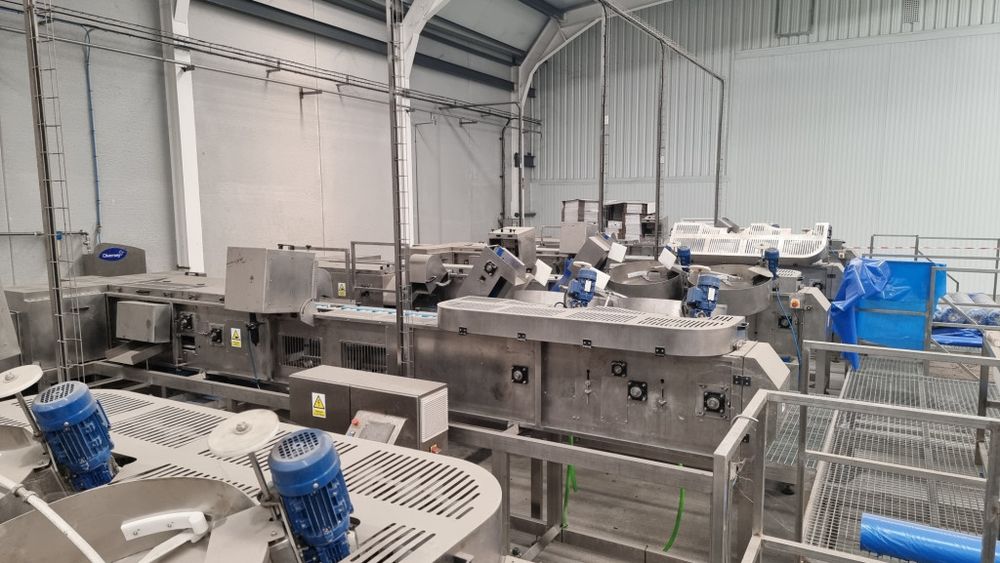

A line with 6 MCF-500 capping machines,
offers a performance of 2,400 kilos/hour
and can be operated by only 9 operators,
which reduces by 85% the labor required
for this process allowing to recover the investment
in less than 2 years.

Made up of:
Fresh strawberry calibrator.
6 strawberry cappers.

This system, which is the only one that orients
and holds the strawberry in the cutting process,
allows a precise and flat cut without the strawberry moving,
thus achieving an excellent yield and product quality,
since only a thin sheet of calyx is cut.
Calyx waste: aprox. 9%
Yield between 85-95%
Size of the fruit that the machine can take: diameter 18-45 mm
