Mazak Mazatrol Matrix Control 4000 RPM Integrex e-410HS-II x 1500U Multi-Axis

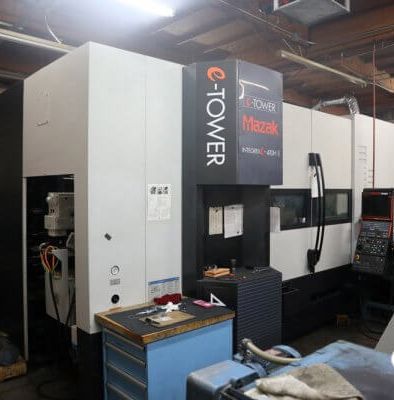

Mazak Integrex e-410HS-II x 1500U Multi-Axis CNC Lathe

Maximum Swing……………………… 24.01″
Maximum Swing over Carriage…………. 24.01″
Maximum Cutting Diameter: Chucking…… 24.01″
Maximum Cutting Length 60″………….. 53.30″

MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose………………………. A2-8
Spindle Bore………………………. 3.46″
Maximum Bar Diameter ………………. 3.03″
Spindle Speed/Ranges……………….. 4000 RPM / 1
Spindle Index (Programmable)………… 0.0001 Degree
Spindle Horsepower (Cont./30 Mins.)….. 30/35 H.P. (A.C.)
Spindle Torque…………………….. 470 ft/lbs

SECOND SPINDLE SPECIFICATIONS (R):
Spindle Nose………………………. A2-8
Spindle Bore………………………. 3.46″
Maximum Bar Diameter……………….. 3.03″x 2.46″ Deep
Spindle Speed/Ranges……………….. 4000 RPM/1
Spindle Index (Programmable)………… 0.0001 Degree
Spindle Horsepower (Cont./30 Mins.)….. 30/35 H.P. (A.C.)
Spindle Torque…………………….. 470 ft-lbs

TURRET AND TOOLING SPECIFICATIONS:
Type of Turret…………………….. 1 Position, w/ATC
Tool Shank Height………………….. 1.0″
Tool Size (Boring Bar Max. Dia.)…….. 1.5″
Magazine Capacity………………….. 120 Tools
Tool Selection Method………………. Random – Shortest
Path
Tool to Tool ATC Time………………. 1.3 Sec.
Max. Tool Dia. w/All Pockets Full……. 3.74″
Max. Tool Dia. w/Adjacent Pockets Empty. 5.9″
Max. Tool Length (From Gage-Line)……. 15.74″
Maximum Tool Weight………………… 26.5 lbs.
ATC Tool Shank…………………….. CAPTO

ROTARY SPINDLE:
Motor Type………………………… IM
Spindle Speed/Ranges……………….. 12,000 RPM / 1
Spindle Horsepower (15 Min.)………… 29.3 H.P. (A.C.)
Torque (15% ED)……………………. 200.5 ft-lbs

AXIS TRAVELS:
Rotary Tool Coupling Clamp………….. 15 Deg./24 Pos.
B-Axis……………………………. 240 Deg.
(0.0001 Deg. increments, -30 Deg. to +210 Deg.)
B-Axis Coupling Clamp………………. 5 Deg. Index
Y-Axis……………………………. +/- 8.07″
X-Axis……………………………. 28.97″
Z-Axis 60″………………………… 54.64″
Second Headstock W-Axis 60″…………. 54.13″

AXIS RAPID RATES:
X, Y and Z-Axis……………………. 1969 IPM
Z-Axis 120″……………………….. 1575 IPM
Second Headstock W-Axis 60″…………. 1181 IPM
B-Axis……………………………. 50 RPM
C-Axis……………………………. 555 RPM

GENERAL SPECIFICATIONS:
Floor Space (WxL) 60″………………. 175.51″ x 199.61″
Machine Height…………………….. 116.14″
Total Power Required (60″ Machine Only). 78 KVA
NOTE: Actual Machine Main Transformer
KVA Rating Will be Greater.
Air Requirements…………………… 70 PSI / 18.73 CFM
Machine Weight 60″…………………. 41,800 lbs.

Equipped With (subject to buyer verification):
Mazatrol Matrix Control
PREPARATION FOR 70KG/1000 PSI SUPER FLOW THRU COOLANT
10″ CHUCK B-210A0815X(2ND LATHE SPINDLE)
120 CAPTO-TOOL MAGAZINE
MILLING SPINDLE SPEED 12,000 RPM
B-AXIS 0.0001 DEG / CONTOURING (REQ. EIA/ISO)
B-AXIS INDEX 5 DEGREE (COUPLING CLAMP)
CHIP-CONVEYOR SIDE 1500 (60″) (CONSEP)
PREPARATION FOR FLASH TOOL SYSTEM
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
MANUAL PULSE GENERATOR 1 (DETACHABLE)
AUTO POWER OFF(BREAKER TRIP)
AUTOMATIC PARTS CATCHER W/EJEC (4″DIAMETER X 5.9″L X 11 LB)
TURRET AIR BLAST
LASER MEASUREMENT SYSTEM FOR ROTARY TOOL LENGTH CHECK
C1-C2 SYNCHRONOUS OPERATION FUNCTION
EIA/ISO 1ST SPDL&MILL SPDL IND.ROTATION
EIA DYNAMIC COMPENSATION 2 (INCLUDED 1)
D)HIGH SMOOTHING CONTROL
D)MAZACC-3D HIGH-SPEED SOFTWARE PACKAGE
ENG#26647 LASER MEASUREMENT (NC-4) SYSTEM UPGRADE
