Mazak Matrix Control 12,000 RPM Nexus 510C-II 3 Axis

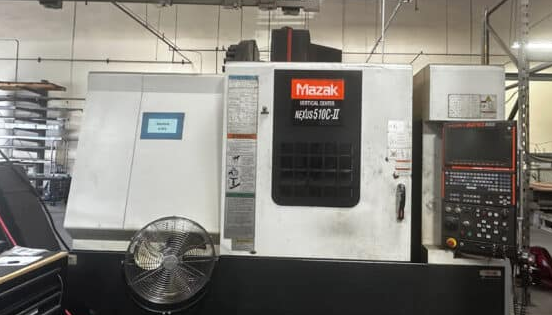

Mazak Nexus 510C-II with Rotary Table
2009

Table Size…………………………… 51.1″ x 21.6″
X-Axis Stroke………………………… 41.3″
Y-Axis Stroke………………………… 20.0″
Z-Axis Stroke………………………… 20.0″
Spindle Face to Table Surface(Min/Max)….. 5.91″/25.98″
Maximum Table Weight Capacity………….. 2,646 LBS
Spindle Speed………………………… 12,000 RPM
Spindle Motor (5MIN/10MIN/30MIN/CONT.)….. 25/20/15/10.2 HP
Spindle Taper ……………………….. #40
Rapid Traverse (X,Y,Z)………………… 1417.3 IPM
Number of Tools………………………. 30
Maximum Tool Diameter…………………. 3.15″
Maximum Tool Diameter (Adjacent Pockets)… 4.92″
Maximum Tool Length…………………… 13.78″
Maximum Tool Weight…………………… 17.64 LBS.
Tool Select Method……………………. RANDOM
Tool Change Time (Chip to Chip)…….. 2.9 SEC (1,000 RPM)
…….. 5.8 SEC (12,000 RPM)
Power Supply (5 MIN/CONT)……………… 41.6/25.9 Kva
Air Supply…………………………… 72.52″
Machine Height……………………….. 111.93″
Floor Space………………………….. 113.3″ X 111.6″
Machine Weight……………………….. 14,616 LBS

Equipped With (subject to buyer verification):
Matrix Control
4th Axis Rotary Table (8″ Kitagawa)
Auto Tool setter
213 psi Coolant thru spindle
Chip Conveyor
40 / VCN510C / VCN-510C2
