Mazak Control Smooth Ai 5000 rpm INTEGREX i-250 HST 5 Axis

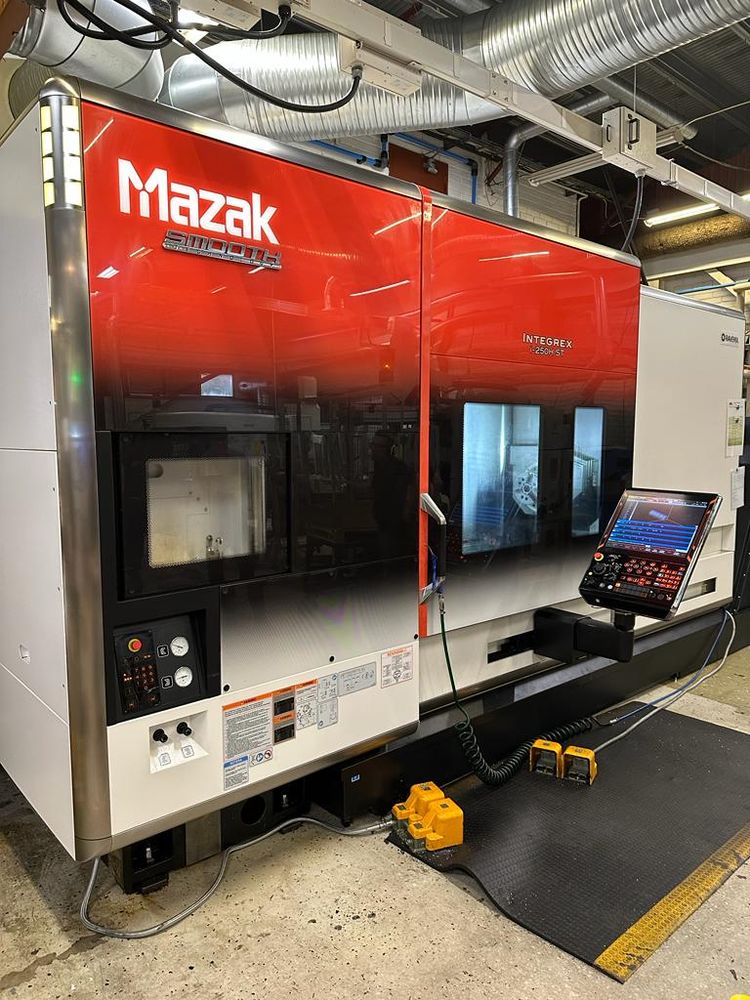

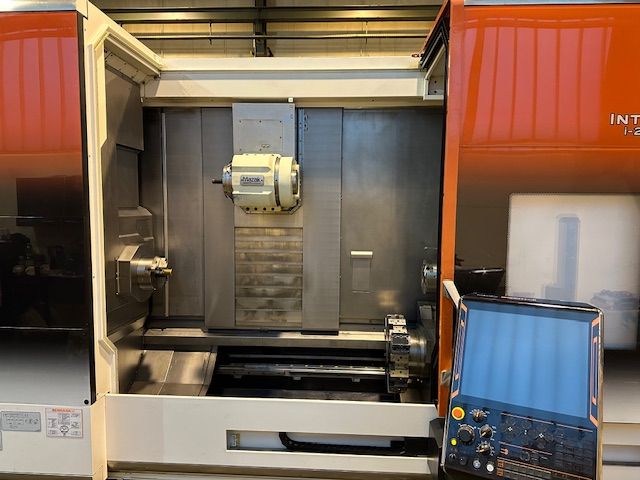

MAZAK INTEGREX i-250 HST
mfg. year 2021

movements
X1/X2-axis: 695/220mm Y-axis: 300 mm
Z1/Z2-axis: 1.585/1.539 mm Y-Achse: 300 mm
Z1/Z2-Achse: 1.585/1.539 mm W-axis: 1.539 mm
B-axis:-30° ∼ +210°

Max. turning diameter 670 mm
Max. turning length 1.519 mm

main spindle
power output: 22 kW
max. spindle speed: 5000 rpm
C-axis, 0.0001°
Spinde nose: A2-6
max. bar capacity: 65 mm

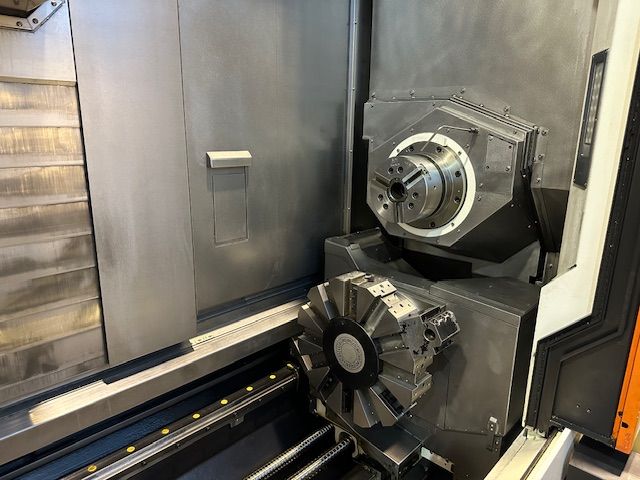

sub spindle
power output: 18,5 kW
max. spindle speed: 5.000 rpm
C-axis, 0.0001°
Spinde nose: A2-6

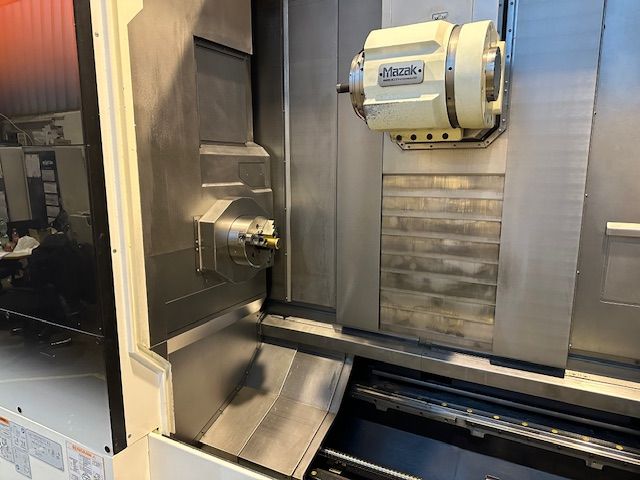

milling spindle
power output: 24 kW
max. spindle speed: 12.000 rpm
Capto C6

tool turret
12-station turret

more options
- Prep. for Renishaw RMP
- Renishaw RMP600 probe
- Swarfconveyor Cromar Combi 500
-,,Heavy Duty-Package“ Cromar Combi 500 Height exit 1.400 mm Heavy duty conveyor Heavy duty gears

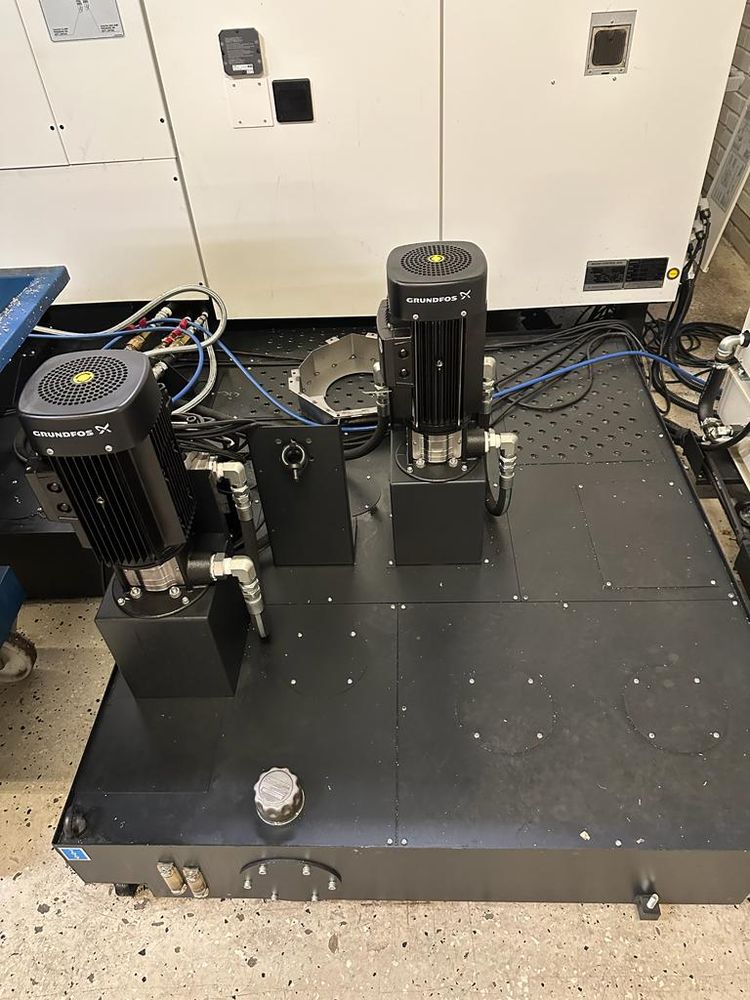

- Coolant th. spindle, 15 bar Pump
- Prep. for coolant th. spindle, 70 bar
- 5-Axis simultaneous for Spindle 1&2
- 12-station tool turret
- Multitoolfunction - 24 pos.
- Kitagawa BB208
- Interface for barfeeder
work time
cutting time turret 1: 855 h
cutting time turret 2: 173h
