Mazak Control Make/Model: Mazatrol 640T CNC Control 1,000 RPM SLANT TURN 50NR 2 Axis

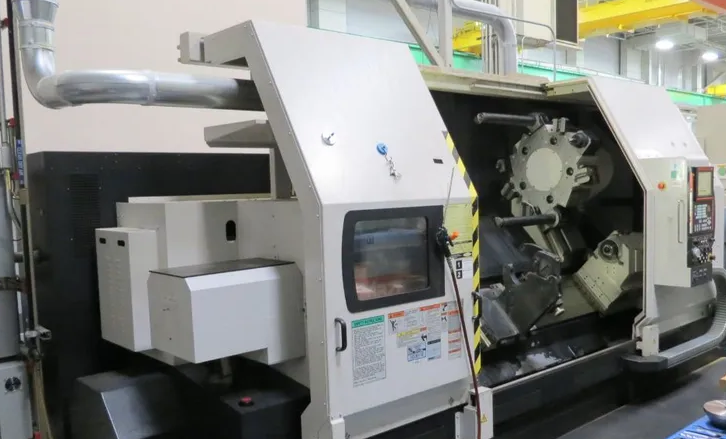

MAZAK SLANT TURN 50NR
Year: 2008

X-Travel: 25.00"
Z-Travel: 80.00"
Distance Between Centers: 89"
Max Swing Over Bed: 22.05"
Max Turning / Cutting Length: 80.00"
Max Cutting / Turning Diameter: 32.00"

Spindle
Chuck Size: 12.0"
Chuck Type: Manual
Chuck Description: 3-Jaw Chuck
Spindle Bore: 10.80"
Spindle Speed: 1,000 RPM
Spindle Motor: 50 HP

Turret
Single Turret: Equipped With
Tool Positions: 15
Turret Options: Turret Type: Vertical Drum

Control
Control Make/Model: Mazatrol 640T CNC Control
Tailstock / Steadyrest
Tailstock: Equipped With
Steadyrest Type: Hydraulic

Options
Machine Options: Mist Collector

Additional Machine Specs:
Workpiece Diameter: 16.54" (standard)
Workpiece Length: 79.13" (max.)
Bed Configuration: 45 deg. Slant Type
Tsubakimoto Mayfran Chip Conveyor
Donaldson Torit WSO 25-1 Mist Collector
Foot Control
Chip Removal: Chip Conveyor
