Mazak CNC Control 4000 1/MIN Integrex i-300ST-1500U 7 Axis

Ref : 2655929-3-MT
Condition : Used
Manufacturer : Mazak

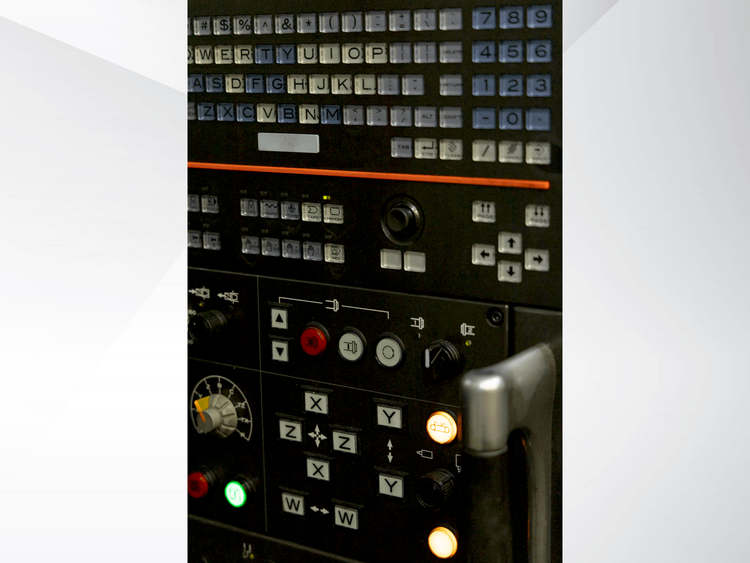

Controller : CNC Control
Spindle Speed : 4000 1/MIN
Model : Integrex i-300ST-1500U
Nb Of Axis : 7 Axis
Year(s) : 2012
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 17 Sep. 2024

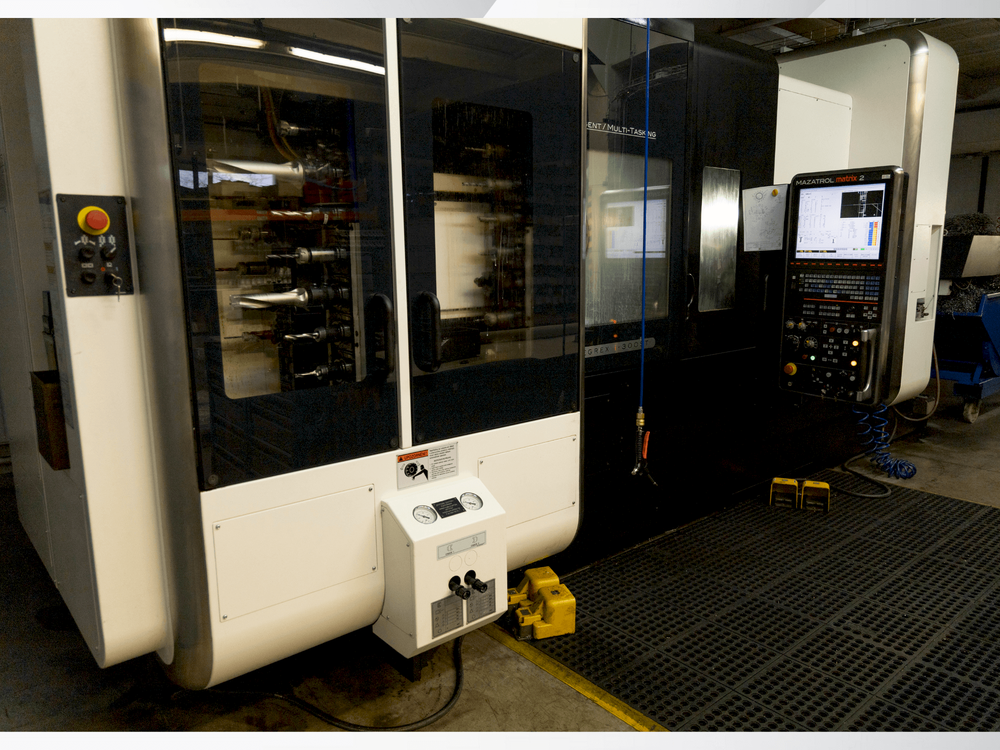

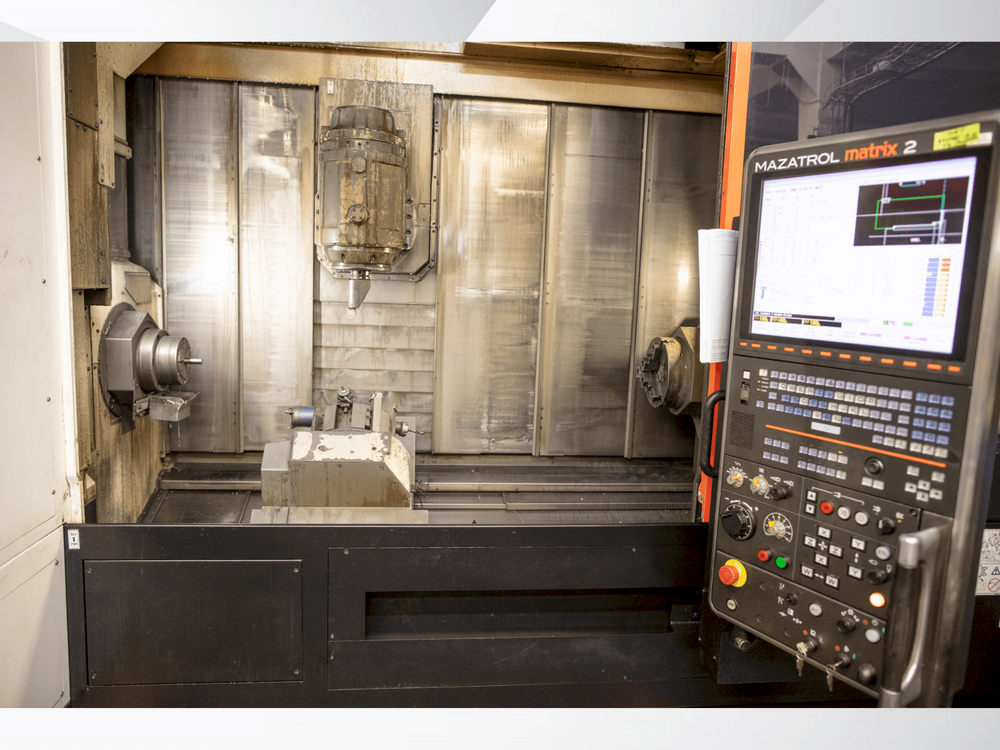

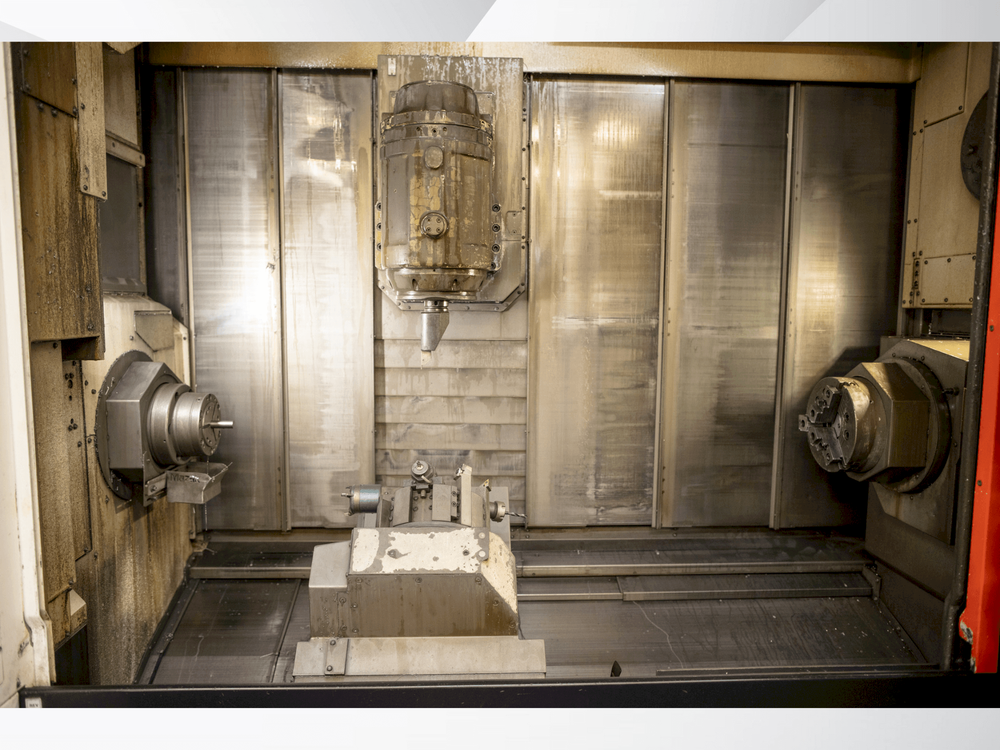

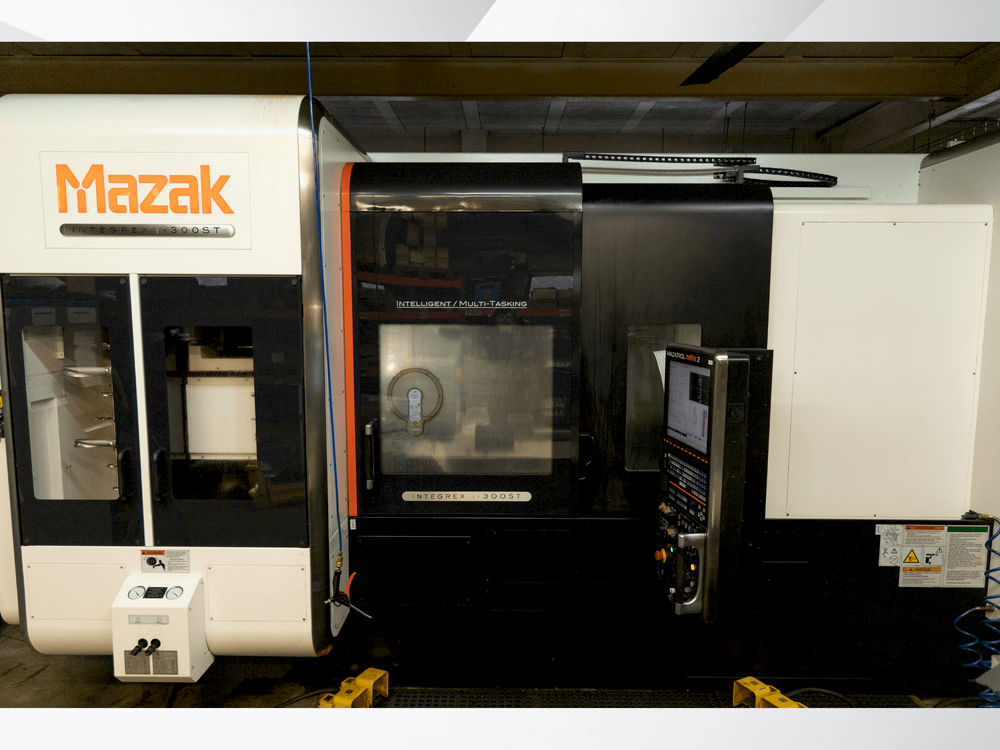

Mazak Integrex i-300ST-1500U
Year: 2012


Main drive
Spindle speed range: 4000 1/MIN
Tool taper: HSK-63
Number of axis: 7

Movement
X-AXIS Movement: 615 mm
Y-AXIS Movement: 260 mm
Z-AXIS Movement: 1585 mm
V-Axis Movement: 230 mm
W-Axis Movement: 1574 mm
AXIS 1 Movement: 30-210 °

Tools
Slots in storage: 72

Media

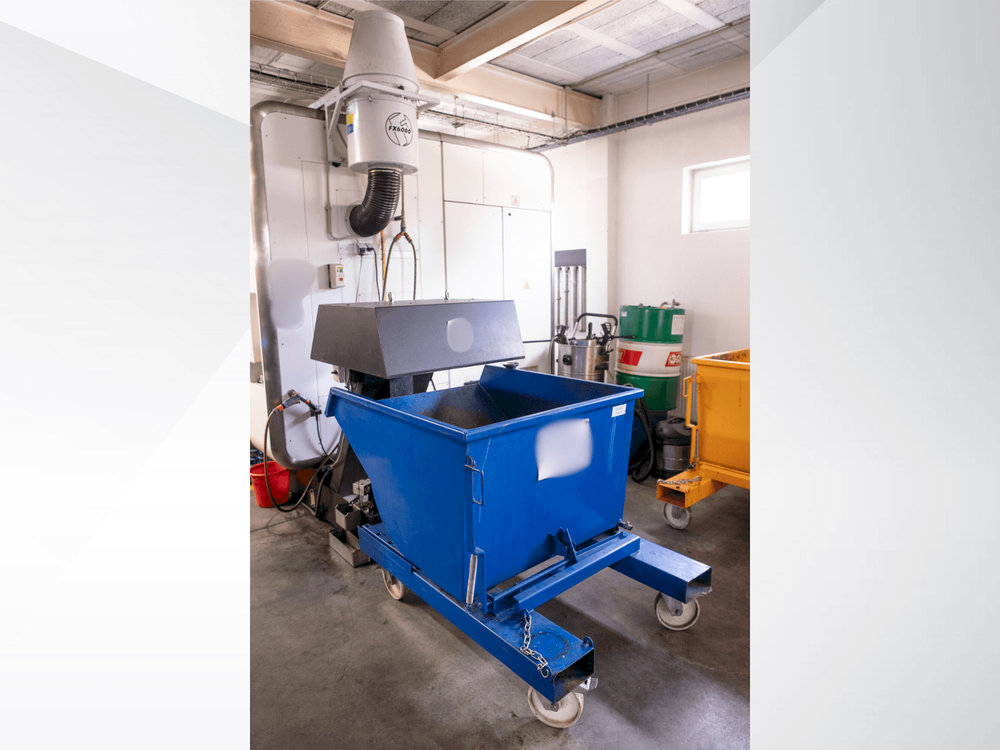

Chip conveyor: Yes

Additional Equipment
- Mist filter unit

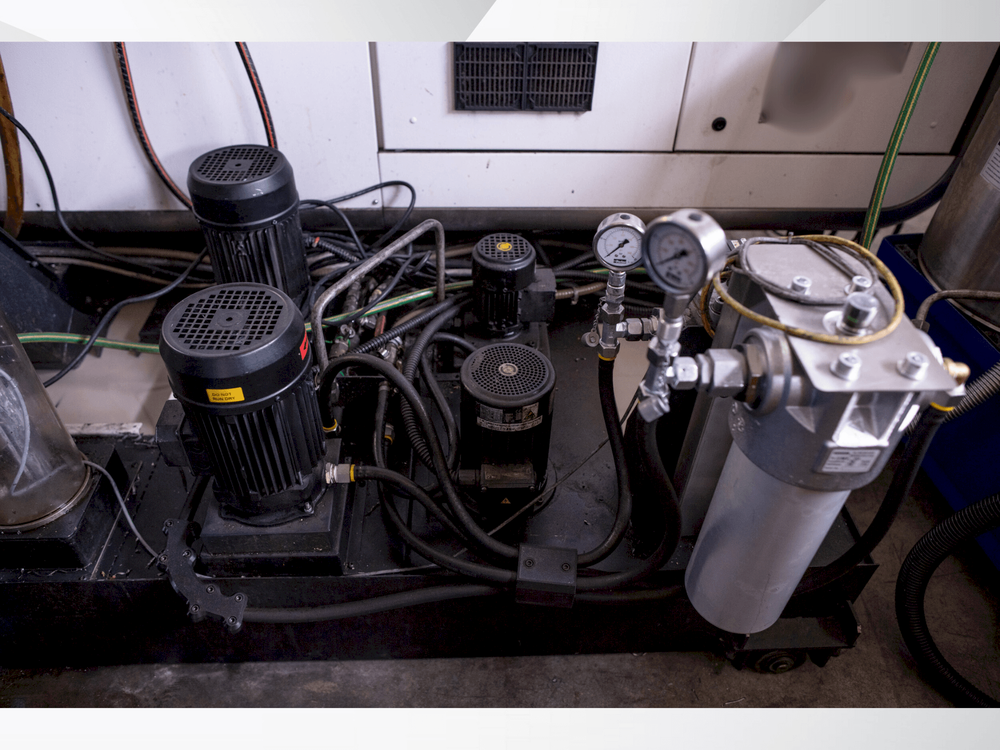

- High pressure cooling (14 bar)
- Work space rinse cleaning (2.7 bar/60 l)
- RMP600-Radio/Radio probe
- Preparation for 70 bar cooling through spindle
- Programmable overload detector

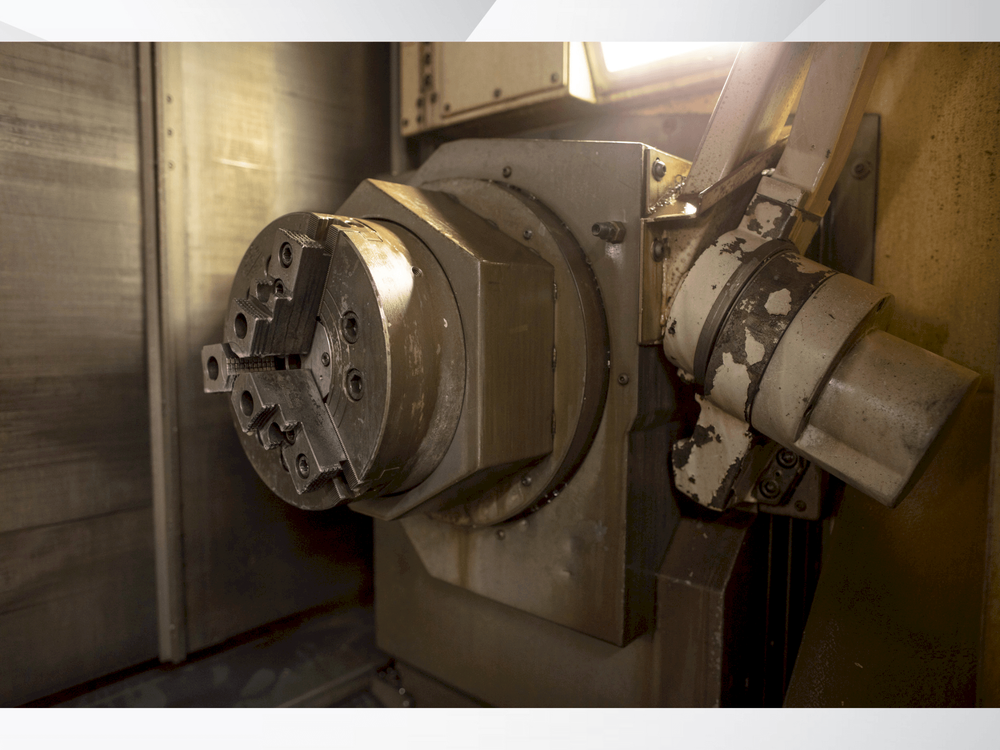

- C-axis on second spindle
- MO321 - Gear milling without tool
- TE810 - Preparation for Multi and Flash tools
- NO117 - Tool edge control for 5-axis continuous

Additional Information
Machine Benefits
Technical Machine Benefits:

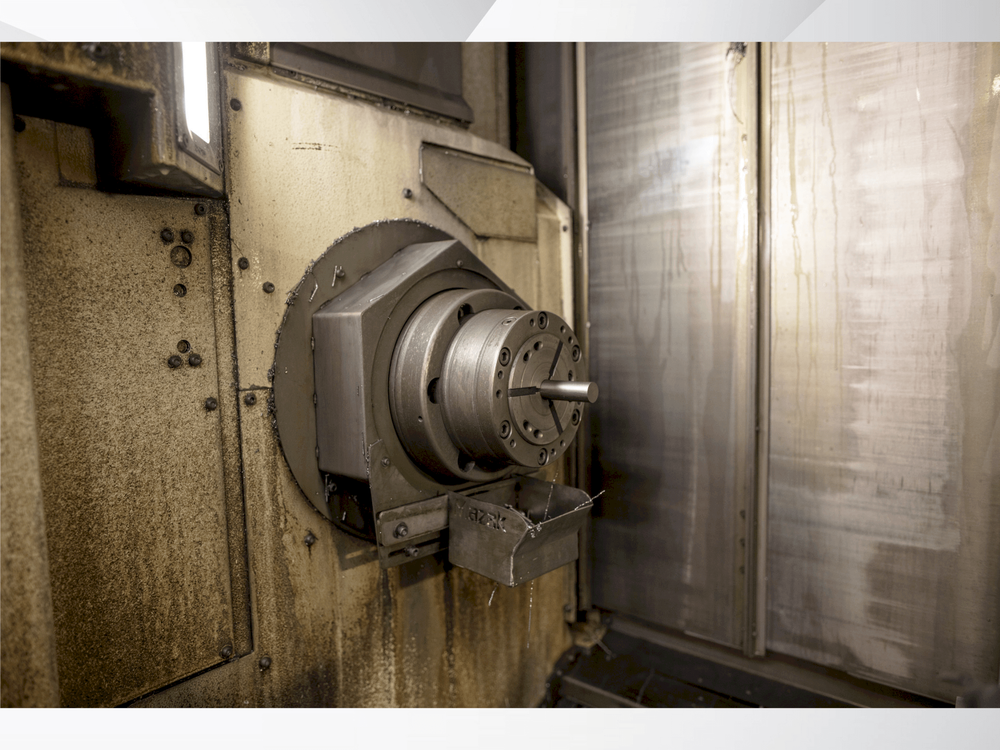

- Main spindle bar passage: 80mm
- Milling head (b axis) speed: 12. 000rpm
- No123 - tool radius correction for 5-axis continuous control
- No137 - eia dynamic compensation i
- No092 - synchronous threading for driven tool
- Eia/iso continuous 5-axis control
- Extensive tool capacity with 72-tool magazine (hsk-63 holders)
- Advanced 5-axis continuous control with various compensation and correction features

Qualitative Machine Benefits:
- Comprehensive equipment for diverse machining operations (turning, milling, drilling, threading, etc. )
- Used exclusively with mazak service technicians

Extra information
- Machine still under power
