Matthews Engineering 17,000 Litre Stainless Steel Mixing Vessel

Ref : 1220935-8-CP
Condition : Used
Manufacturer : Matthews Engineering
Capacity : 17,000 Litre
Short Description : Stainless Steel Mixing Vessel
Year(s) : 1989
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 28 May. 2015

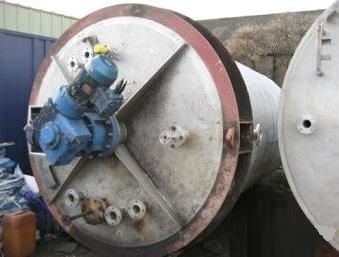

”Used 1989 Matthews Eng'r Stainless Steel Mixing Vessel”

Description:
• Used 17,000 Litre 316 Stainless Steel Mixing Vessel
• Orientation: vertical, cylindrical, flat top, dished bottom
• Dimensions: 2200mm i/dia, 2750mm total dia,
• 4200mm on the straight, 5900mm total length
• Connections: 1 off square top man way 500mm x 500mm
2 off 50mm top inlets, 1 off 40mm rop inlet (Vega probe), 4 off 80mm
top inlets, 1 off 200mm top inlet, 1 off 100mm top side inlet, 2 off 50mm
bottom side outlets, 1 off 40mm bottom side outlet, 1 off 150mm centre
bottom outlet.
• Vessel is complete with 4 off internal baffles, support ring an an
agitator which comprises of 5.5kw Brook Crompton FLP motor
(7.5hp, 415v, 1500rpm, 3phase, 50 cycles) and a stainless steel
twin flighted 4 blade turbine agitator, manu by APV, Model: AMT 05, 84rpm
