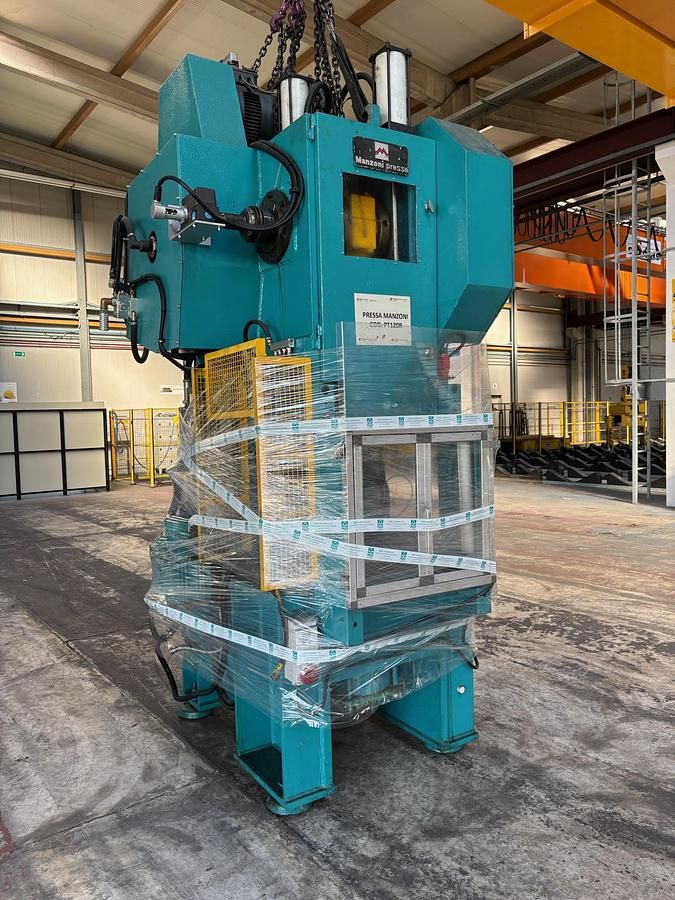

Manzoni CR 120 130 TON

MANZONI CR 120
Year 1986

Ton 130
Table - width (mm) 1100x550
Number of strokes/min 28-84
Subtype (DM/CDC) CDC1B
CE mark no
Conditions working

Drive system (eccentric/link motion/knucle joint/hydraulic/screw fly) Eccentric
Slide - width (mm) 765x420
Slide - adjustable stroke (mm) 0-140
Slide - adjustment (mm) 105
Push points 1
Sled - number of guides 6

Slide - adjustment system (guided/ball/wedge) Sphere
Light pms (mm) 500
Blank holder cushion - total force (ton) No
External dimensions - width (mm) 1640 x1640
External dimensions - height above ground (mm) 3370
Weight (ton) 7
Foundation (cm) No
Electrical components - number of motors 1
Motor power (kw) 10

Electrical panel conditions (working, missing, overhauled, to be overhauled) New in 2007
Safety protections (front/rear) Yes
Overload (hydraulic/mechanical) no
Accessories / other data Power supply line with pneumatic feeder 200x200 and motorized unwinder with a capacity of 1000 kg
