MAN Uniset 75 3
EUROPE (Western and Northern)
Coldset Web Offset Press
Cut Off:578 mm
Web Width:700-965 mm
Max Speed:37,500 CPH
(1) MANUload Manual Reel Feed
(3) MEGTEC DLP 1000 Reelstand
• 2 Reels
• Max diam 1270 mm
• Core diameter: 76 mm
(3) Fully Automatic Web Up Devices
• Chain with magnetic blade from splicers to RTF
(1) Spreading roller
(1) Web Guide
(1) Web severer
(1) Automatic webbing-up system

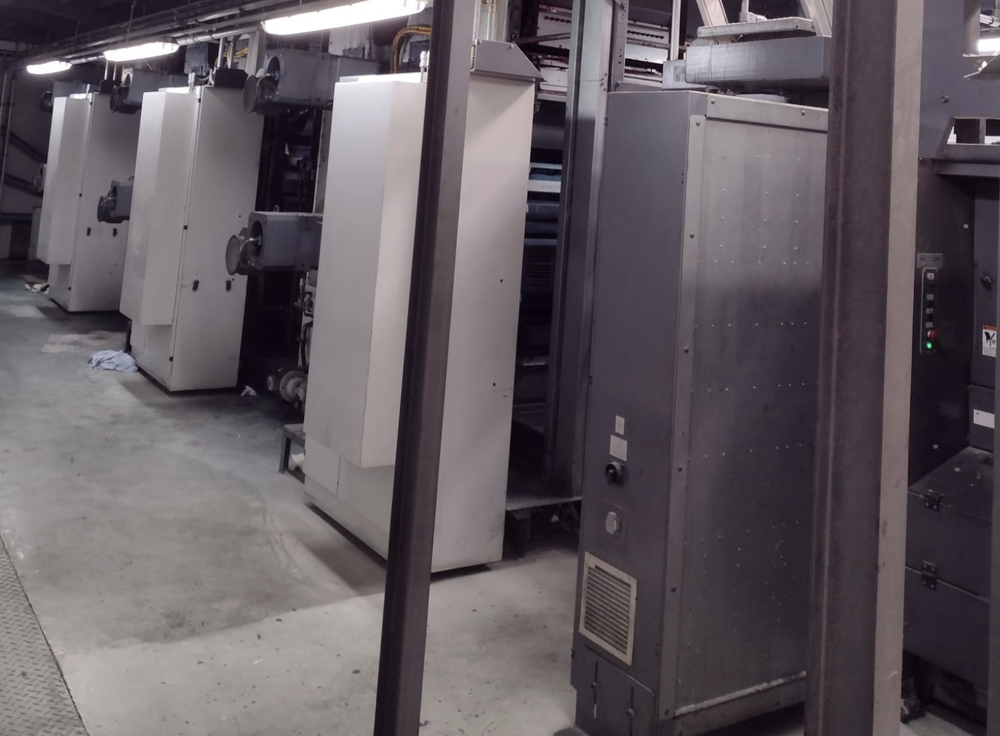

(3) MAN Uniset 75 4H Printing Towers for Coldset Printing
(1) Technotrans Gamma.B200 Dampening and Recirculation
(1) Full Web Guide
(1) Web break detectors

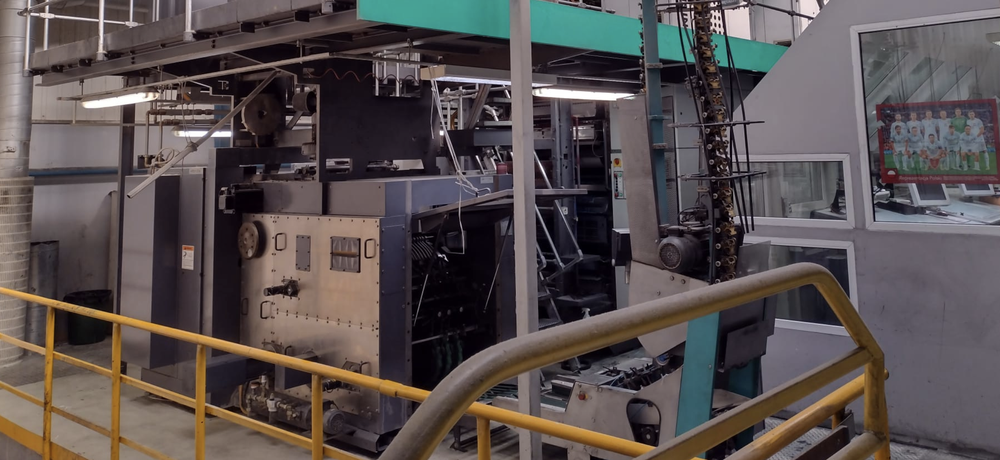

(1) Folder Superstructure FA1-70
• Traction Device laced to the right of the folder
• web compensators

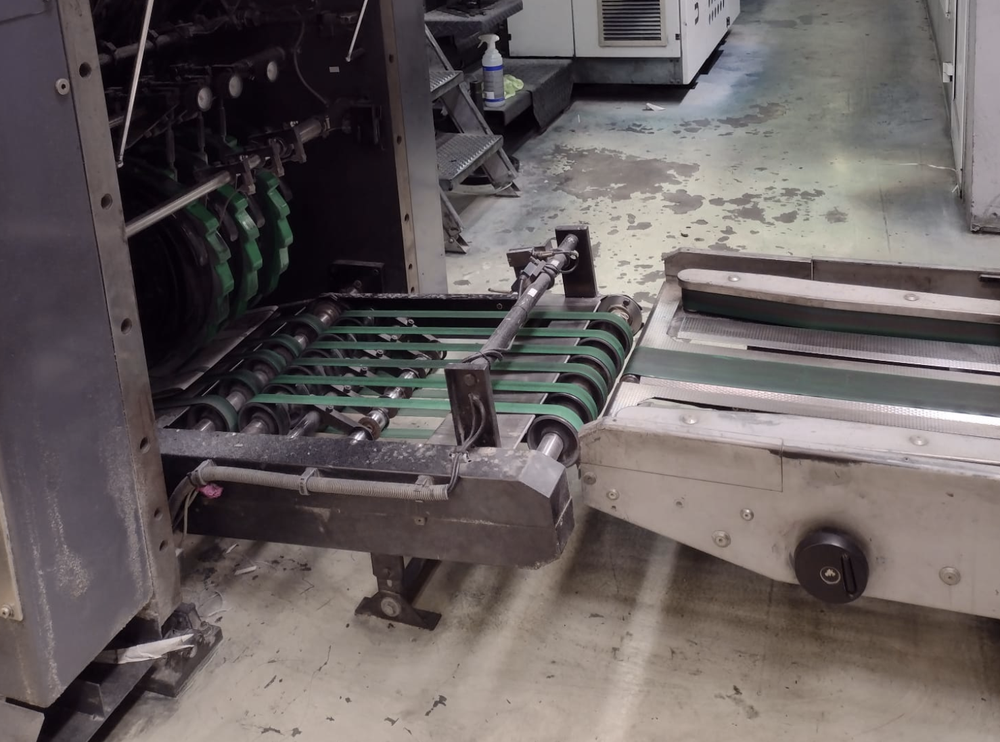

(1) MAN Roland KFN 80 2:3:3 Jaw Folder
• For the production of 16pp full colour tabloid per tower.
• 48pp Tabloid in total
(1) PECOM Control System
(1) Operator and Colour Desks
(1) QI Press Controls Automatic Colour Register for 2 webs
(1) QI Press Control Automatic Cut Off Register
(1) Nela VCP Evolution Plate Bender
(1) Manual plate punch
(1) Set of Manuals & Drawings
