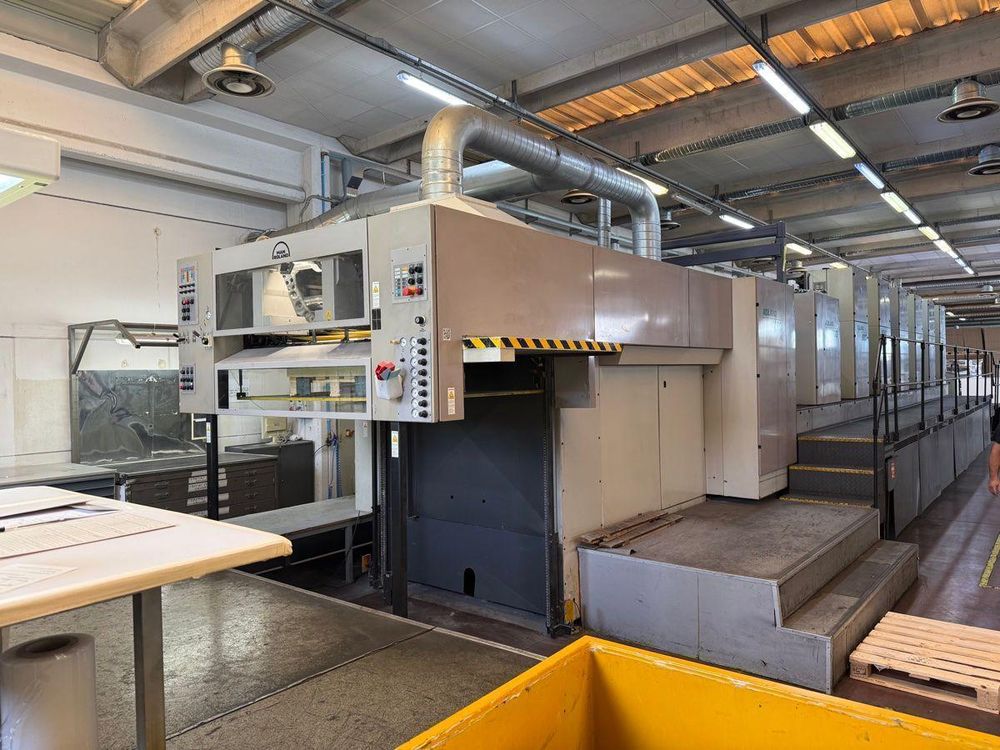

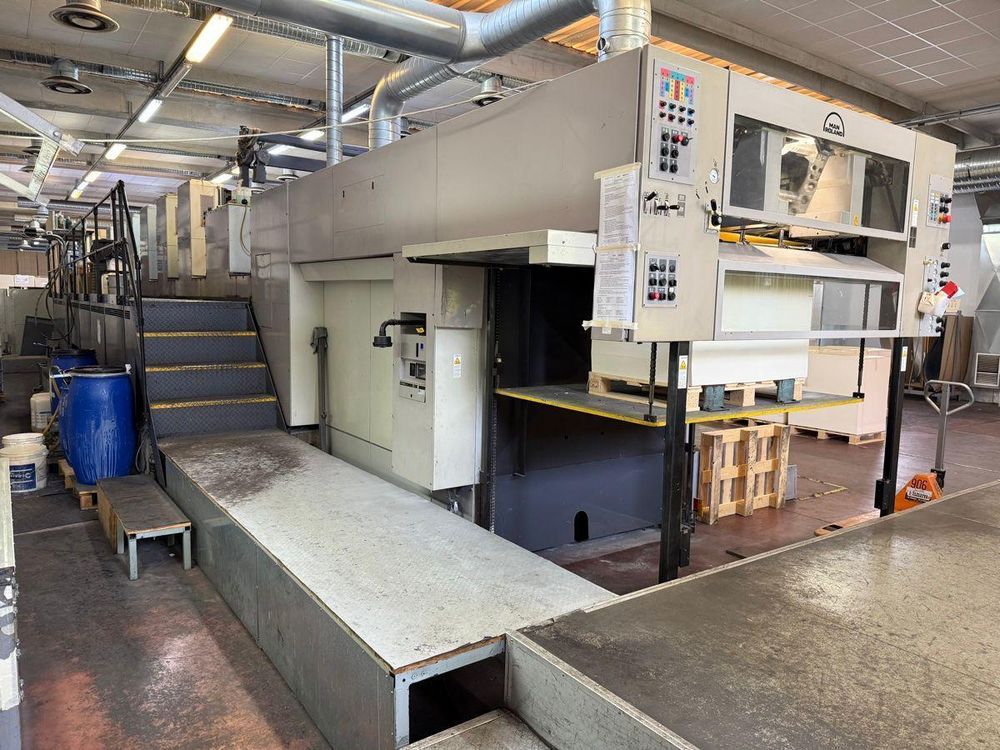

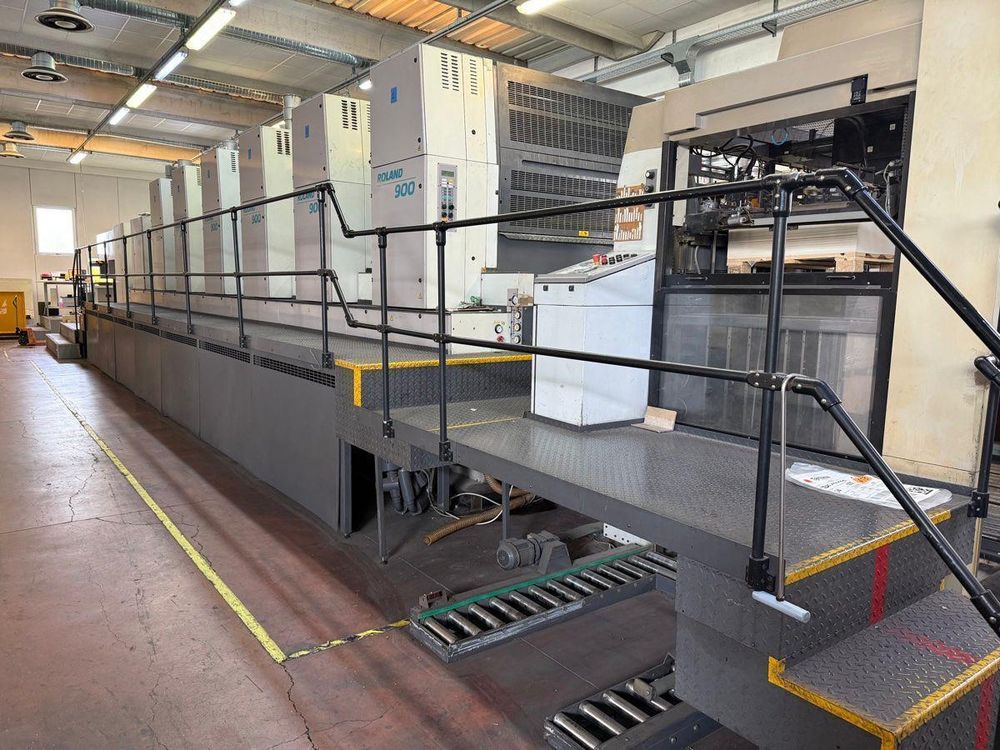

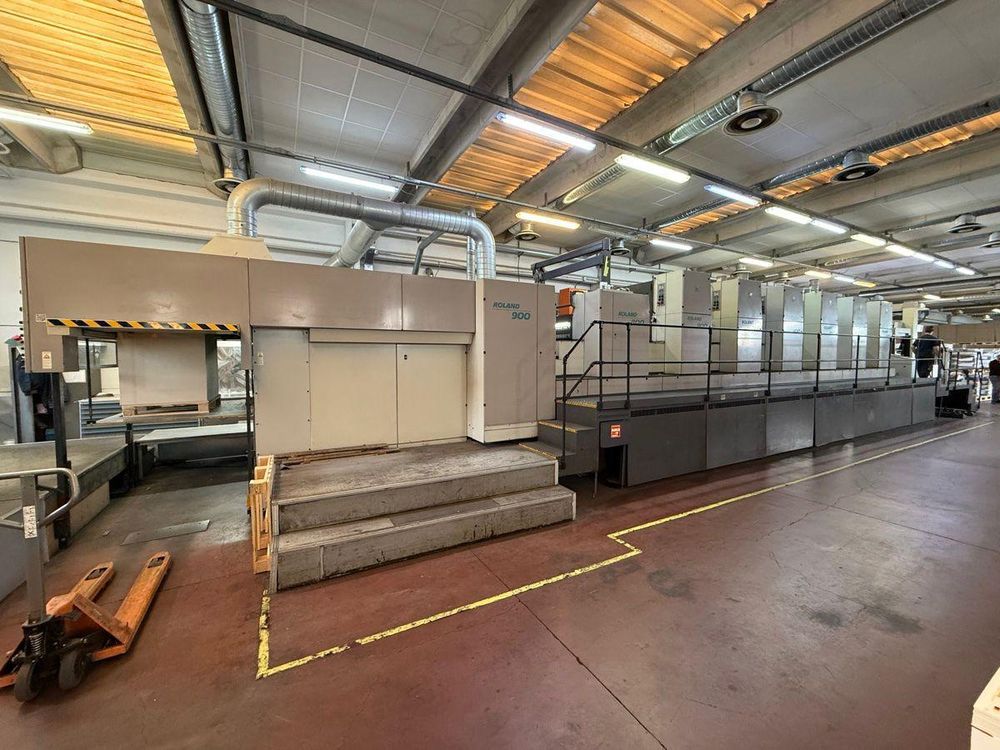

MAN Roland R906-6 LV 6 1020 x 1420 mm

Ref : 2677333-4-AW
Condition : Used
Manufacturer : MAN Roland
Model : R906-6 LV
Number Of Colors : 6
Size : 1020 x 1420 mm
Year(s) : 2000
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

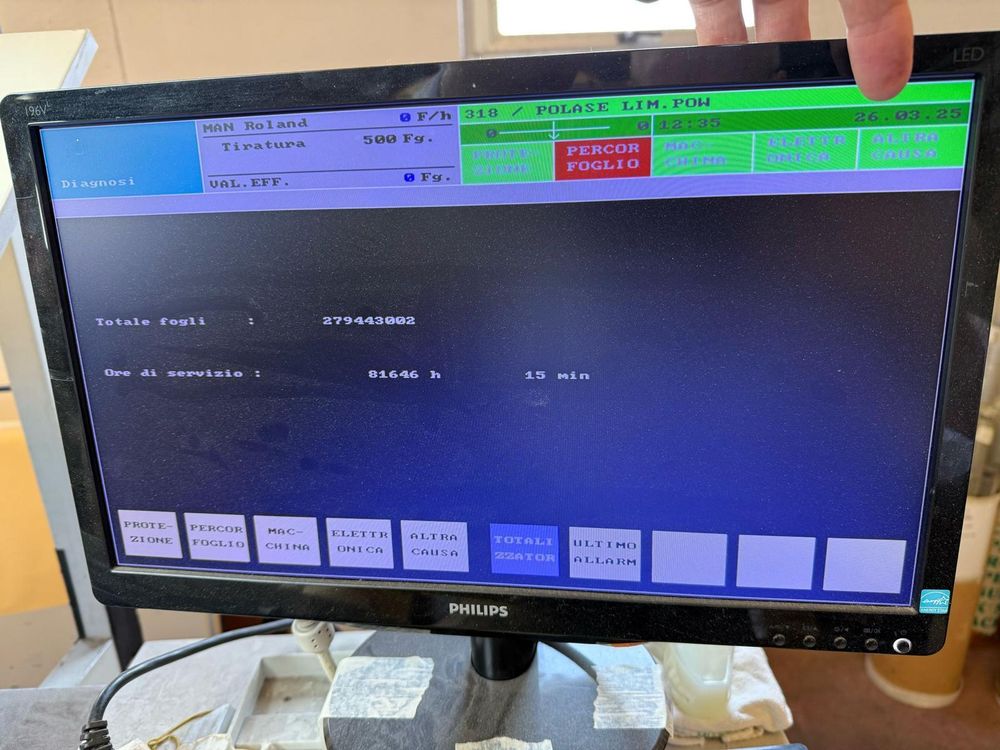

Total impression count 280 mio approx

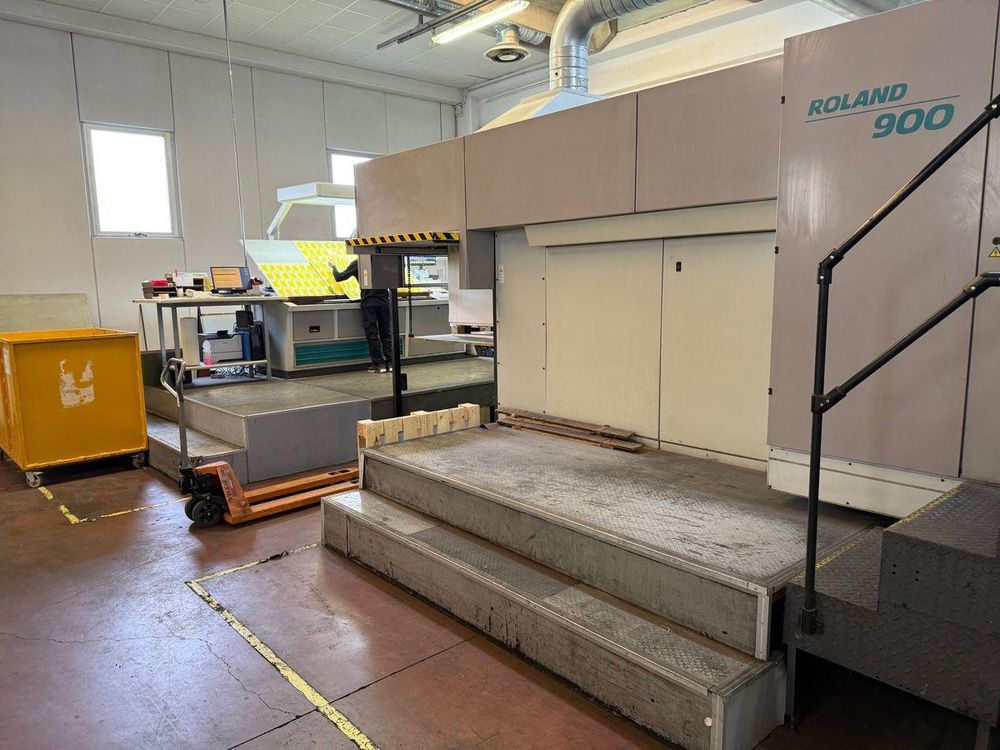

Sheet-fed offset press - Printing units: 6+Lack unit
Straight machine

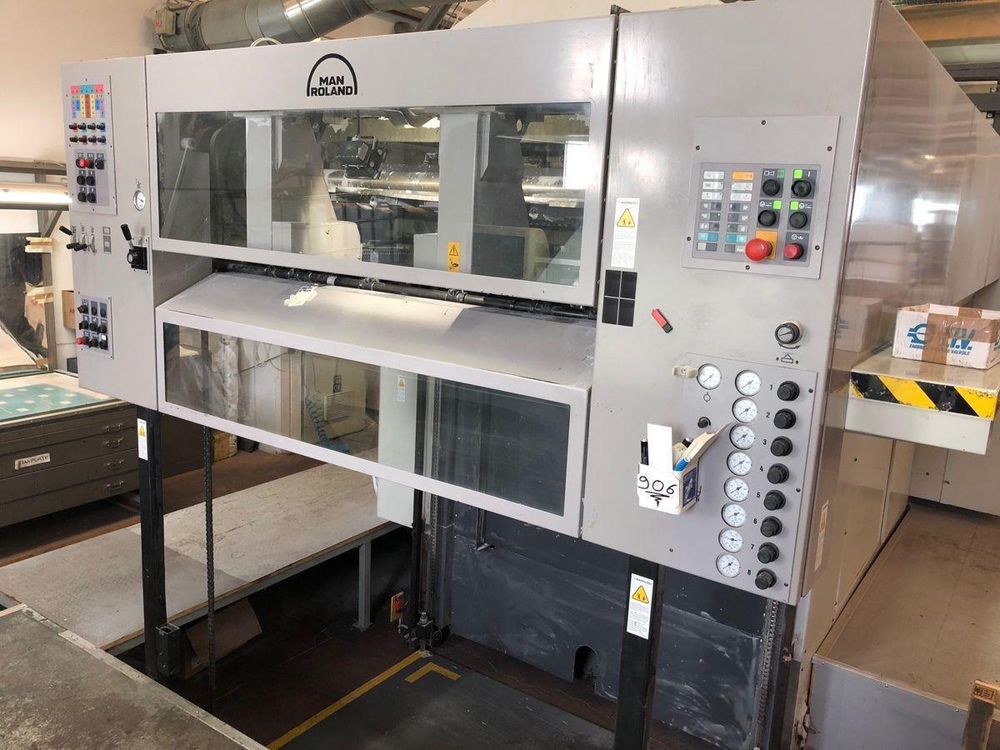

High pile delivery
Technical features:
Speed 13.000 copie/h
Paper size max 1020 x 1420 mm
Paper size min 600 x 850 mm
Thickness 0,2-1 mm
Print size 990 x 1400 mm
Plate size 1140 x 1410 mm Thickness 0,30 mm
Blancket size 1460 x 1160 mm Thickness 1,90 mm
Dimensions :
L. 18,50 mt. circa
P. 4,70 mt.
H.2,70 mt.
Power requirement Kw 00 approx
Weigh 120.000 Kg. circa

Accessories included:
- Steel plate on feeder

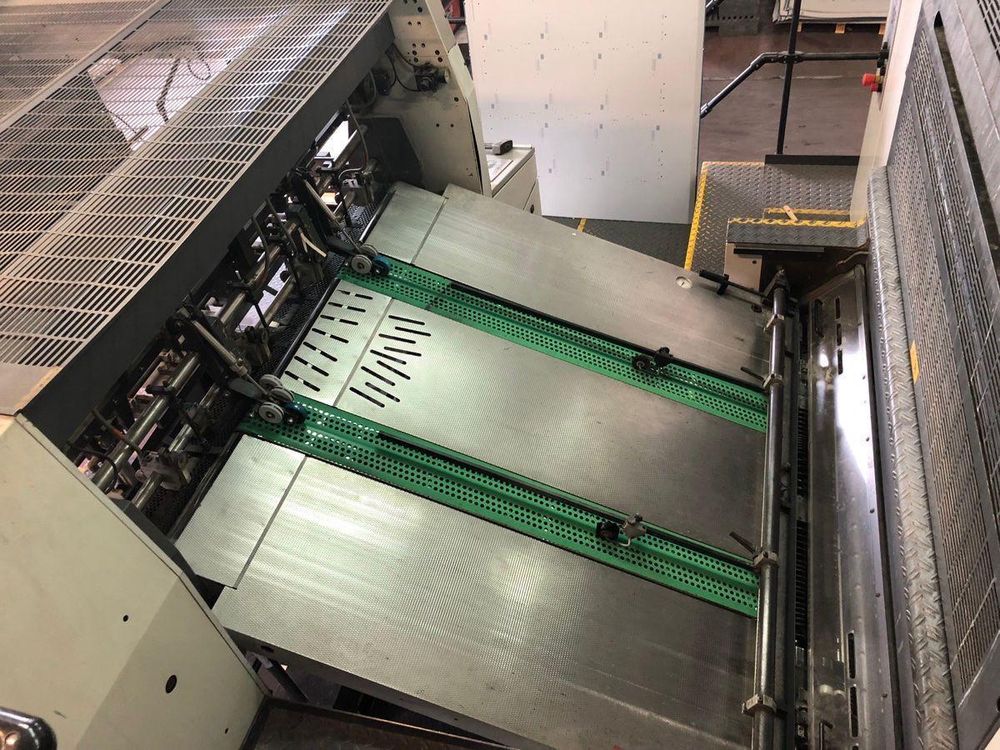

- Stream feeder with vacuum belts
- Preset (autom. paper size and thickness setting)
- Electronic double sheet detection
- Electromechanic double sheet detection
- Electronic side lay control, fotoelectronic and akustic
- Anti-static on feeder and delivery

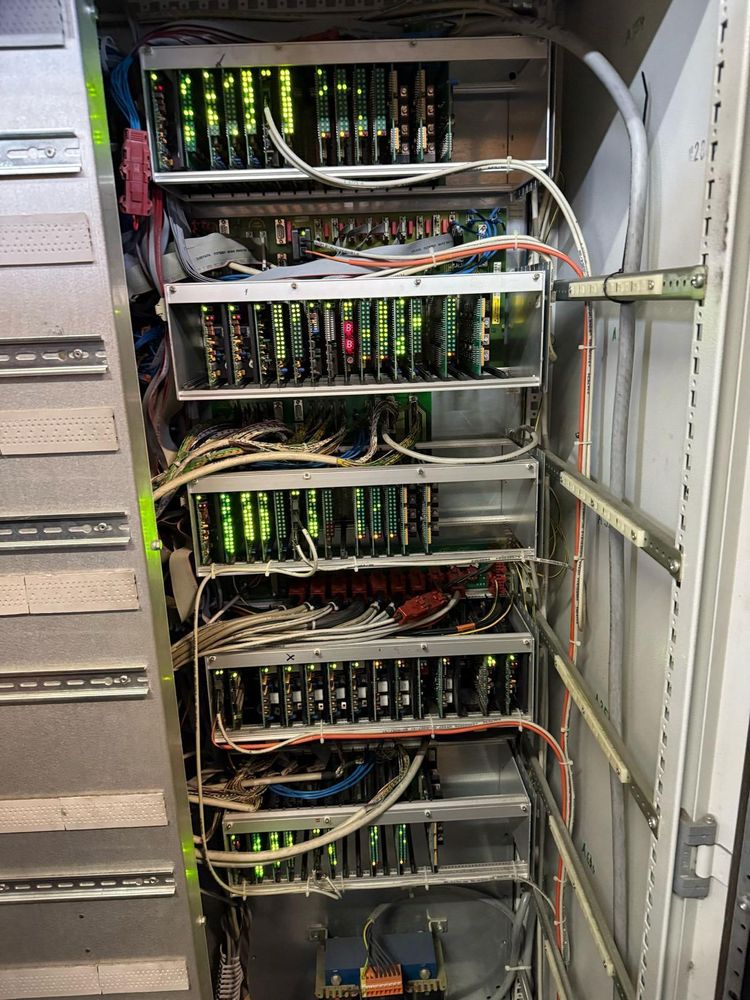

- RCI machine control and diagnosis by monitor console /self diagnostic, control and monitor console;
remote inking; dampening; axial, circumferential and diagonal register control with light pen;

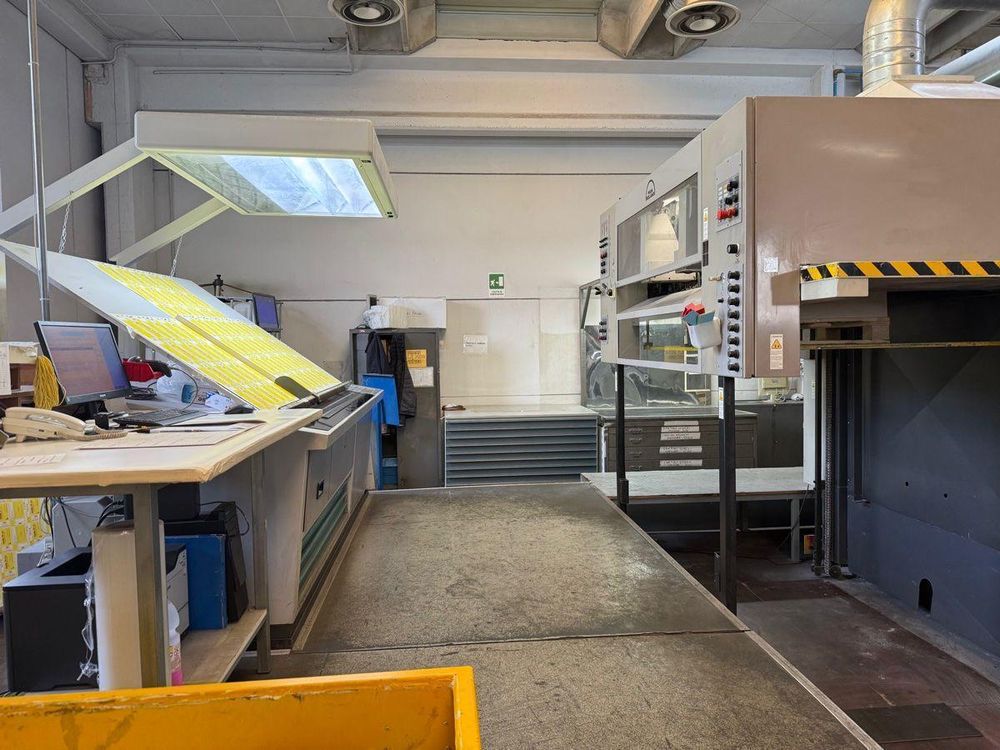

day light illuminator and memory card for job memories
- APL™ full automated plate changing
- Remote-controlled circumferential, lateral and diagonal register

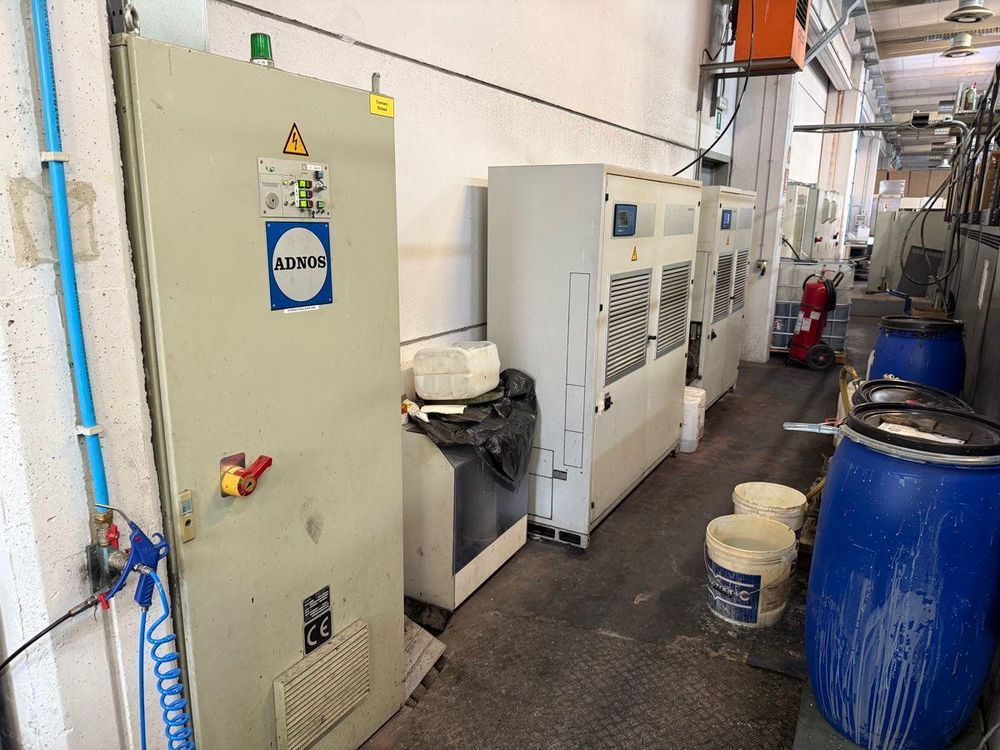

- Rolandmatic continuous dampening system with alcohol metering; cooling and re-circulation unit system
Technotrans Beta D
- Ink temperature control GRAPHO METRONIC Tempcontrol NT
- Programmable automatic blanket cylinders wash up
- Programmable automatic impression cylinders wash up

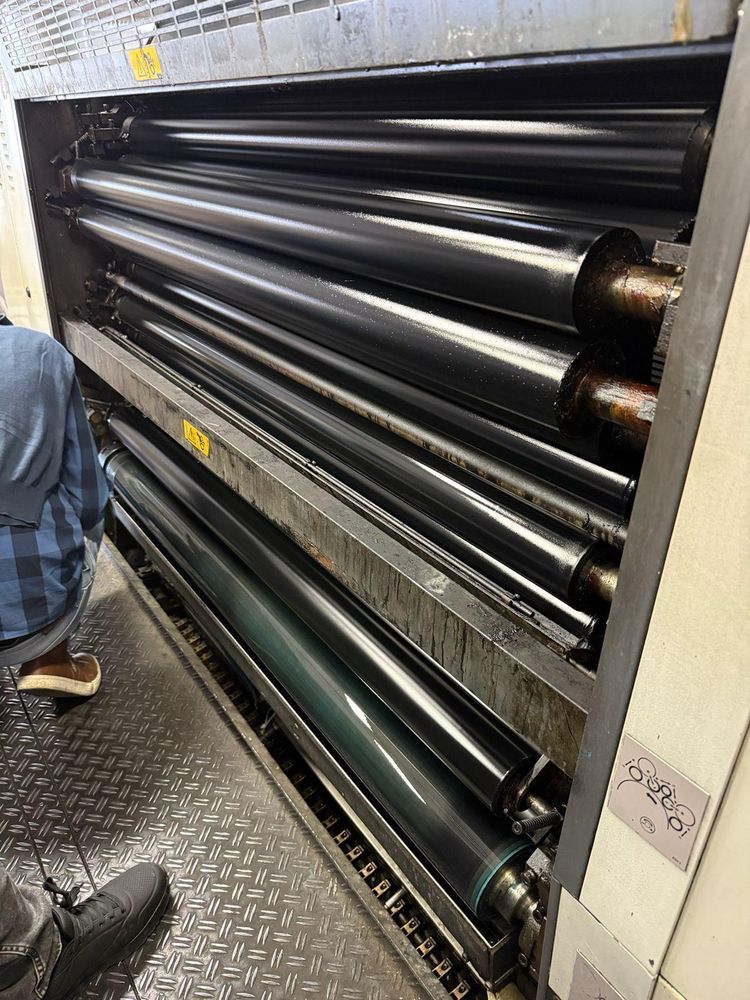

- Programmable automatic rollers wash
- Raised
- Chrome cylinders
- AIRGLIDE Sheet travel
- Anilox Coating Unit
- Automatic sheet de-curler
- Powder sprayer Grafix
- IR dryer Seccomatic
- Steel plate on delivery
- Tools, Documentations
- Complete with all standard parts and accessories
Availability: immediately
Conditions: Good
