Leonard Safop Heavy Duty Lathe 310 RPM 60/600

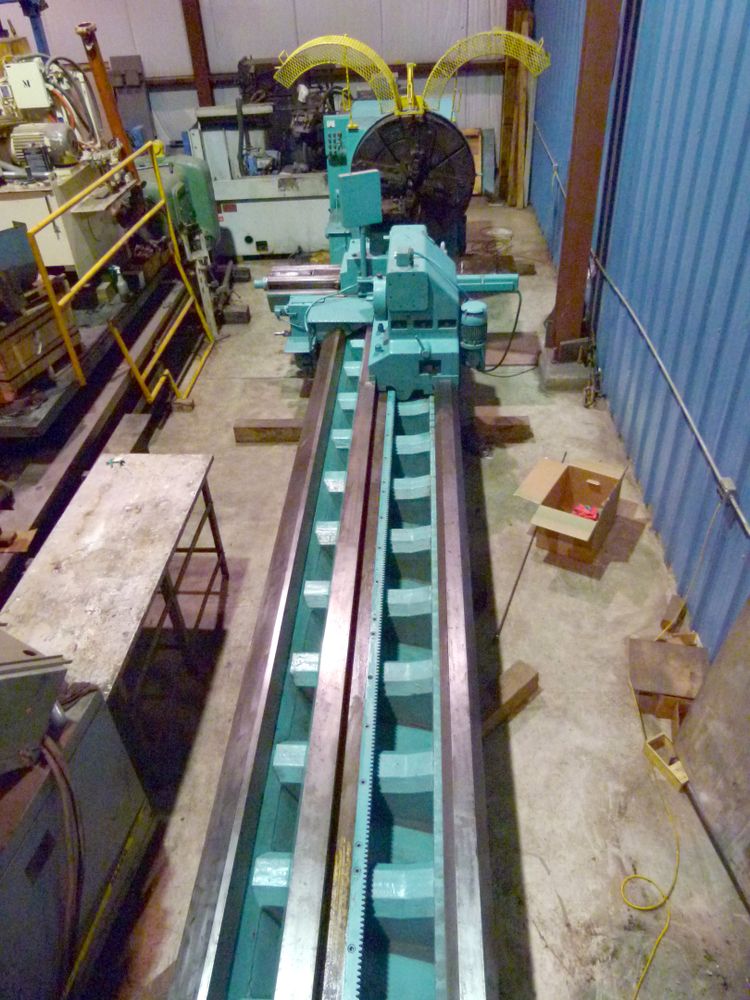

Leonard Safop 60/600 Heavy Duty Lathe
Year 1970s / New Retrofit

Control New CNC
Bed Width 40 in 1016 mm
Swing Over Bed 53.5 in 1358.9 mm
Swing Over Cross Slide 37.75 in 958.85 mm
Distance Between Centers 237 in 6019.8 mm
Distance in Gap 61 in 1549 mm
Weight Capacity Between Centers (At 10 RPM) 20000 lbs 9090 kg
X – Cross Slide Travel 26 in 660.4 mm
Chuck Diameter 50 in 1270 mm
Chuck Type Bolt-On-Top Jaws
Spindle Power 75 hp 55.93 kW
Spindle Speed 2.5 - 310 RPM Infinitely Variable
Spindle Nose Special Modified A-Style
Tailstock Yes, with Built-in Heavy Duty Center
Tailstock Quill Diameter 7.9 in 200.66 mm
Rapid Traverse Rate 240 in/min 6096 mm/min
Ways Hardened Bed Ways
Power 3PH / 60Hz / 220V Existing
Additional Adjustable tailstock thrust, new servo motors and drives, new spindle drive
Machine Length 432.01 in 10973.05 mm
Machine Width 95.98 in 2437.89 mm
Machine Height 95.98 in 2437.89 mm
Weight 50000 lbs 22679.6 kg
