Krefeld, Kusters 222.52 / 2200 220 Cm Finishing Mangle
EUROPE (Western and Northern)
Type of machine Finishing Mangle
Make KUESTERS, KREFELD
Type 222.52 / 2200
Year of manufacture refurbished
Type of control conventional
Working widths 2200 mm
Roller width 2400 mm
Number of rollers 2 pieces
Supporting roller - 270 mm dia
Roller covering - soft rubber 75 ° shore
Swimming roll - 210 mm dia
Roller covering - soft rubber 75 ° shore
Pressure line 50 N / mm
Pressure to total 12
Cloth guiding system 1Breithalter, 1 EV
Drive side to Order
Opera Starting side by Order
Hydraulic unit for combined pressure stainless steel
Liquor trough with guide roller displacer +1
Pneumatic compensator. discharge
Drive shaft diameter 70 mm
Additional information
• Machine will be completely overhauled before delivery, we supply with warranty.
• Cloth guiding system for woven fabrics - 1 curved expander roll

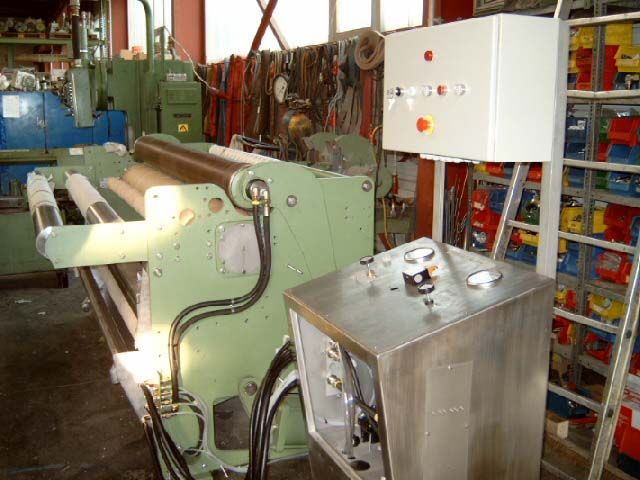

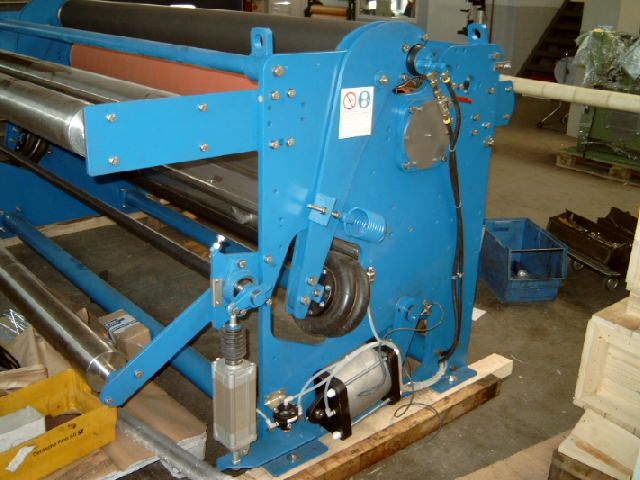

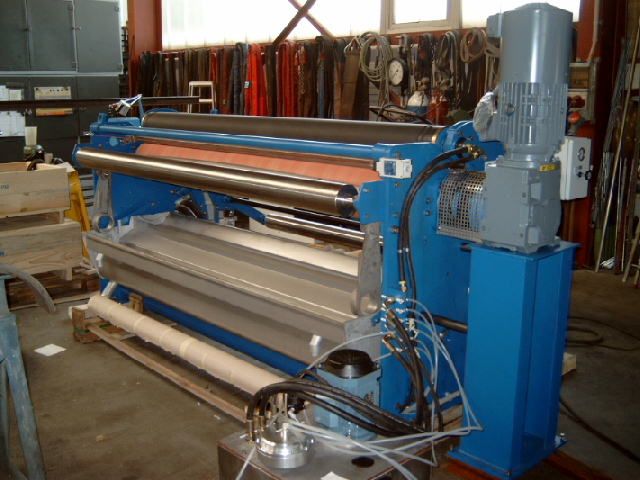

(Photo shows an overhauled machine in delivery-status)
• add. new frequency drive for adaptation into a plant is possible
