Krefeld, Kusters 222.52 / 2200 220 Cm Finishing Mangle
EUROPE (Western and Northern)
Type of machine Finishing Mangle
Make KUESTERS, KREFELD
Type 222.52 / 2200
Year of manufacture refurbished
Type of control conventional
Working widths 2200 mm
Roller width 2400 mm
Number of rollers 2 pieces
Supporting roller - 270 mm dia
Roller covering - soft rubber 75 ° shore
Swimming roll - 210 mm dia
Roller covering - soft rubber 75 ° shore
Pressure line 50 N / mm
Pressure to total 12
Cloth guiding system 2 Profile temple, 1LW
Liquor trough with guide roll and double wall heater
Drive side to Order
Opera Starting side by Order
Hydraulic unit for combined pressure stainless steel
Liquor trough with guide roller displacer +1
Pneumatic compensator. discharge
Drive shaft diameter 70 mm
Additional information
• Machine will be completely overhauled before delivery, we supply with warranty
• Cloth guiding for knitted fabrics - 2 driven profile expander

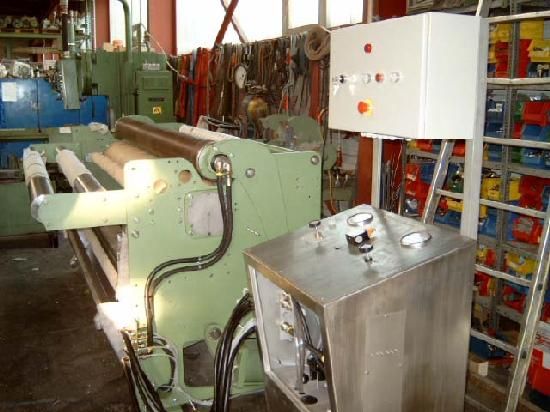

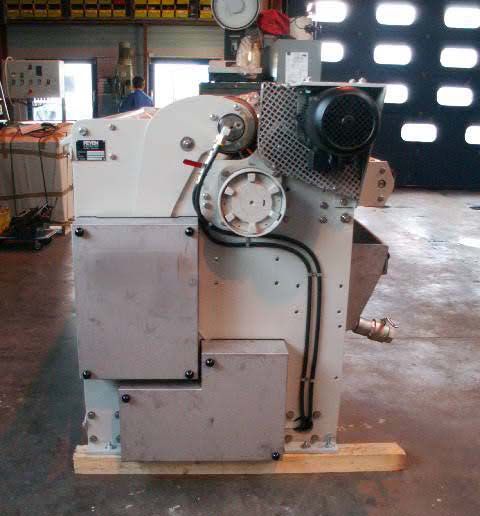

(Photo shows an overhauled machine in delivery-status)
• additional new frequency drive for adaptation into a plant is possible
