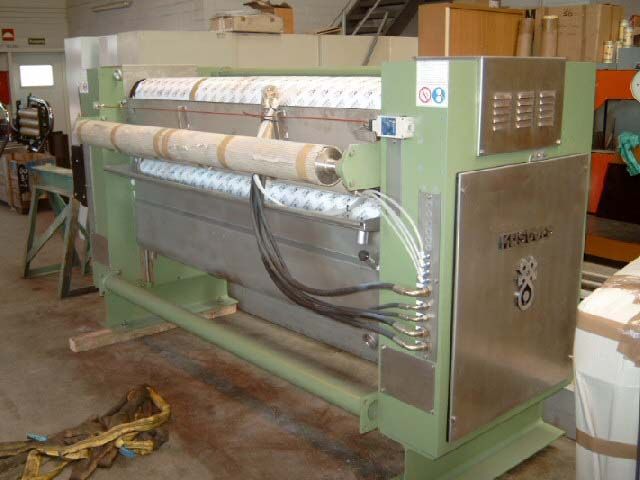

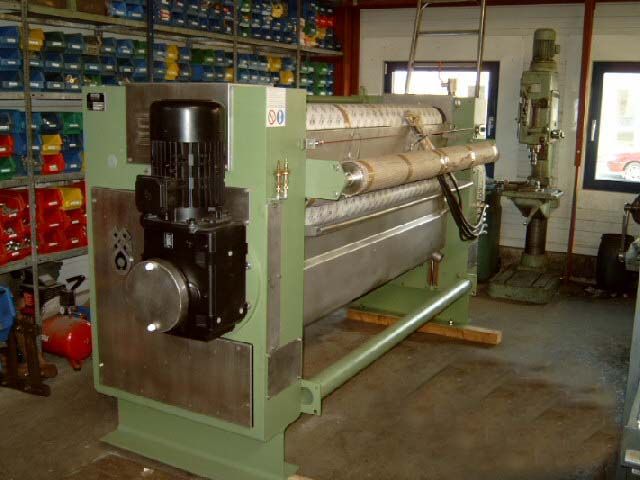

Krefeld, Kusters 222.11 / 2400, Dye Padder 240 Cm
EUROPE (Western and Northern)
Type of machine Dye Padder
Make KUSTERS,KREFELD
Type 222.11 / 2400
Year of manufacture overhaul
Type of control conventional
Working widths 2400 mm
Roller width 2600 mm
Number of rollers 2 x S-drum piece
Swimming roll - 220 mm dia
Roller covering - soft rubber 75 ° shore
Pressure line 40 N / mm
Pressure to total 10
Liquor trough with guide roll + displacement
Capacity of dye tub about 25 liters
Guiding system for knitted fabrics Clouth 2 profile spreader
Drive for 60 m / min
Additional information
• Dyeing-padder with two "Swimming Rolls" with a small trough, guide roll and displacer for CPB-dyeing
• Cloth guide for knitted fabrics
• Machine will be completely overhauled before delivery. We supply with guarantee.
• with drive, can be adapted according to locally installation
• Extension to a complete CPB-station is possible.
