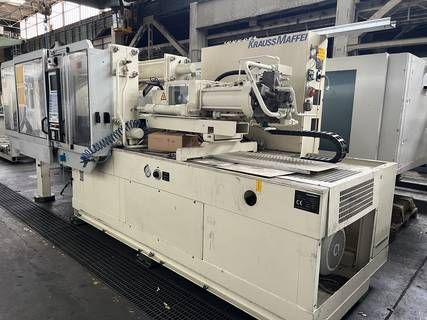

Krauss Maffei KM 200-700C1 200 T

Controller: MC4

Locking unit
closing force t: 200
Opening stroke mm: 1050
Rail dimension mm: 560x560
Installation height min/max mm: 350
Plate size: 915x915

injection unit
Screw diameter mm: 50
injection pressure bar: 1892

Mass and weight
Dimensions LxWxH m: 5.50 x 2.20 x 2.30
Machine weight Kg: 10530

Miscellaneous
2-fold hydraulic core puller
pneumatic tool nozzle control
8 control circuits tool heating
2x tool temperature monitoring
4-fold Kistler charge amplifier
blow-out valve
