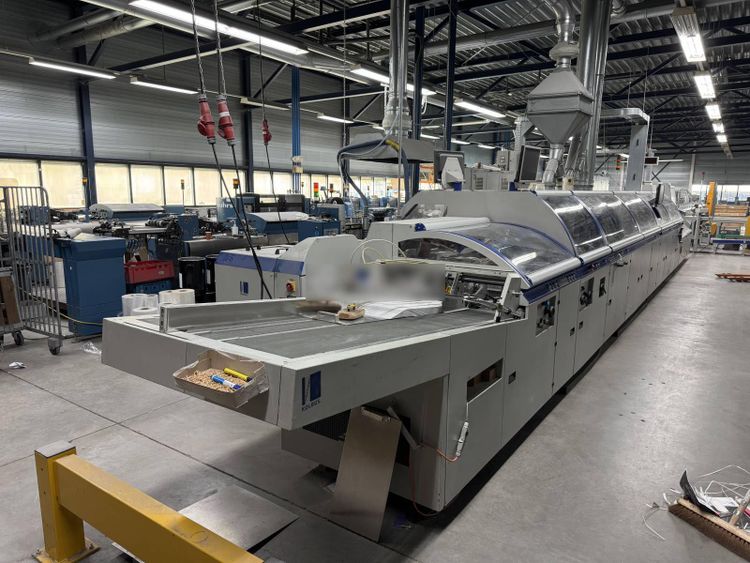

Kolbus KM 473

Gathering Machine
Type: Kolbus ZU 832.A
Gathering stations: 18x
Year: 2011
Hand feeding station
Book Block Feeder: OMG Mettilibro
ATC (automatic sheet thickness control)
Reject Unit: AS 842
Sheet recognition system
Picture and text mode, as well as Barcodemudus A
Touchscreen
SignaLynx
Camera system with integrated LED lighting

Technical Details:
Size max: 320 x 460 mm
Size min: 105 x 105 mm
layer thickness max: 3 mm
Pile height max: 250 mm
Mechanical speed max: 12,000 cycles/h ( with KM 473 up to 8,000 Cycles/h)

Perfect Binder:
Type: Kolbus KM 473
Year: 2011
Number of clamps: 26x
infeed incl. coupling to a ZU gathering
Milling station
Gauzing
rill station for 4 times rill
Cover feeder: Stream cover feeder SAL 411.A
Cover recognition system
Nipping and Pressing station
2nd Nipping and Pressing station
lay down device
Dryer: IR Heating in steering range of the clamps

Spine Gluing

Base for 1 Spine Gluing Unit
Hotmelt: 1 Unit with Premelter LH 375.B (interchangeable)
PUR: Nordson XNO 961

Side Gluing:
Hotmelt: 1 Unit with Premelter LH 375.A

Drying Conveyor:
conveyor belts
Drying station: with drying tower

Three knife trimmer:
Type: Kolbus HD 153.P
Year: 2011
Control panel: Copilotsystem with "Touchscreen"
Infeed direction: from right
Small format device ( 70 x 115 mm trimmed / 80 x 120 mm untrimmed)
Big format device

Technical Details:
Size max (cutted)): 315 x 420 x 80 mm
Size min (cutted): 100 x 120 x 5 mm (magazine mode) (70 x 115 with small format device)
Size max (uncutted): 320 x 430 x 80 mm
Pile height max: 80 mm
Front Cut max: 40 mm
Mechanical speed max: 6,600 cycles/h
Size min (uncutted): 80 x 120 with small format device

Stacker
Type: Kolbus XKL 500
Year: 2011

Technical Details:
Mechanical Speed: 8,000 cycles/h
Max Block format range (width x height x thickness): 320 x 383 x 70 mm / 190 x 460 x 70 mm
Min. Block format range (width x height x thickness): 100 x 105 x 3 mm
Air consumption: 35 Nm3/h 6 bar
Max. Cover size: 710 x 460 x 70 mm
Min. Cover size: 203 x 105 x 3 mm
