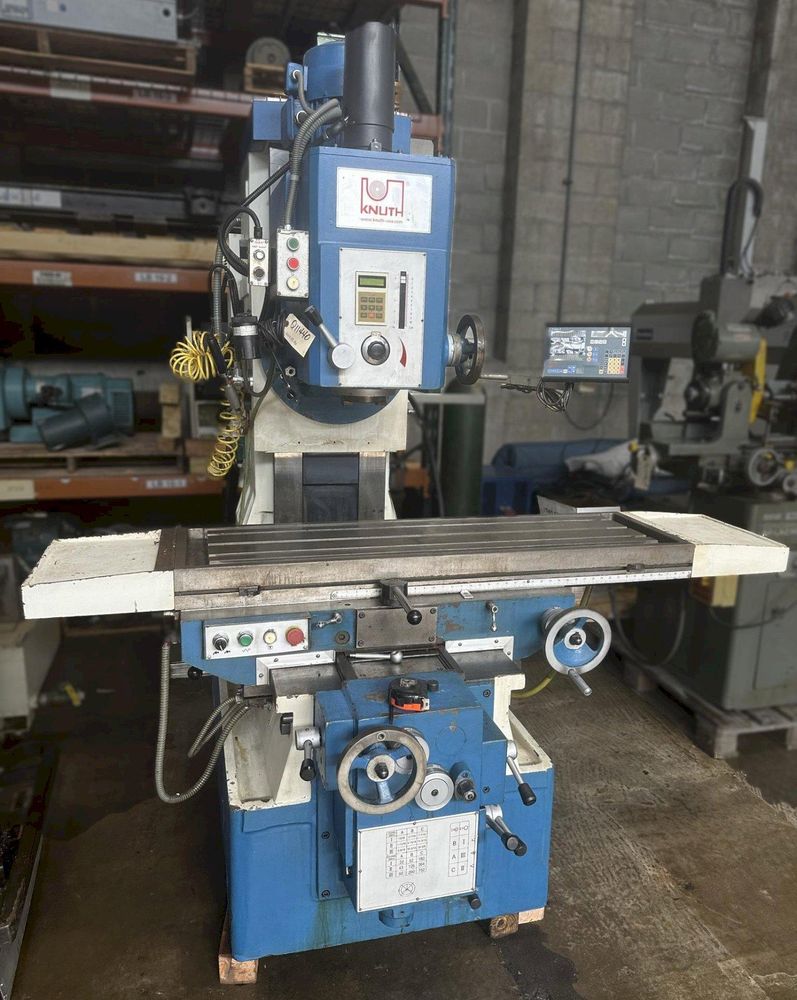

Knuth KB 1400 1800 RPM

KNUTH KB 1400
Year 2010


Distance Spindle Nose to Table Center 5.91" - 25.59"
# T-Slots 3
Table Set-Up Area 55" x 16"
Table T-Slot Width 0.7"
T-Slot Spacing 3.9"
Max Speed Height-Adjustment 65.75 IPM
X-Axis Travel 37.4"
Y-Axis Travel 16"
Z-Axis Travel 20"
Spindle Mount Type ISO 50
Throat 20"
Spindle Speed Range (Vertical) 30 - 1,800 RPM
Quill Stroke 4"
Head Swivel Range ±45°
Rapid Traverse Rate, All Axes 65.75 IPM
X-Axis Feed Rate (9) 0.7087 - 24.685 IPM
Y-Axis Feed Rate (9) 1 - 25 IPM
Z-Axis Feed Rate 0.7087 - 24.685 IPM
Main Motor 10.1 HP
Coolant Pump Flow Rate 3 GPM
Approximate Machine Dimensions 91" x 70"
Approximate Machine Height 84"
Approximate Machine Weight 8,052 LBS
