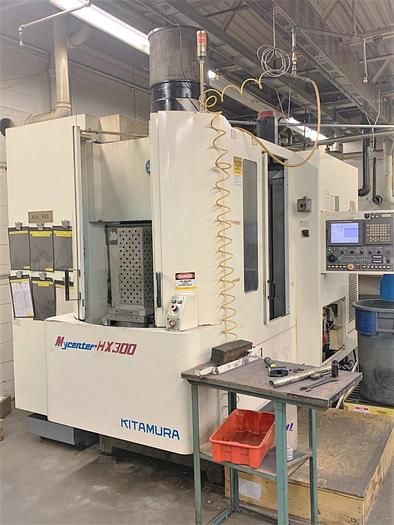

Kitamura HX-300 4 Axis

Kitamura HX-300
2001


2 Pallet Changer System
4th Axis Rotary Table
40 Position Tool Changer
15,000 RPM Spindle
Flood Coolant System
Helical Interpolation
Machine Status Condition Lights
3.5" Floppy Disk Drive
RS-232C Interface
Machine is wired 200/220V 3 Phase
Cutting Hours 14,335


Machine Control Fanuc 16iM Control
Pallet Size / Number of Pallets 12" x 12" / 2
Maximum Table Load 550 lbs.
Table Indexing .001 Degree Full 4th Axis Rotary Table
X-axis travel 20.1"
Y-Axis Travel 20.1"
Z-Axis Travel 15.7"
Maximum Tool Diameter / Length / Weight 5.9" / 11.8" / 22 lbs
Spindle Speed 15,000 rpm
Spindle Taper CAT 40
Spindle Motor 15 HP
Transmission Geared
Rapid traverse rates 1417 IPM
Tool Magazine Capacity 40 Position ATC
Tool Change Time Tool to Tool 1.2 seconds
Tool Change Time Chip to Chip 5 seconds
Machine Dimensions LxWxH 116" x 86" x 103"
Machine Weight 15,400 lbs
