KINE MC-25 Threader

KINE MC-25

2" Kine (Kinefac)Thread Roller
Max Diameter 2"

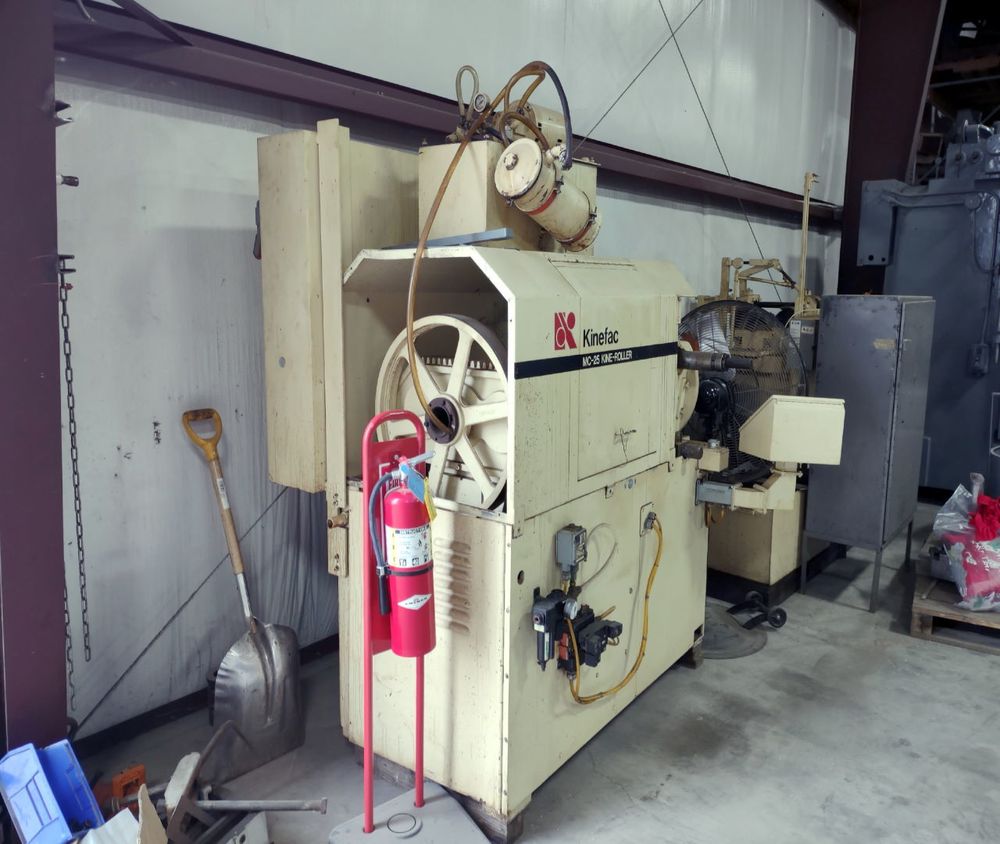

MC-25-F Kine-Roller Two Cylindrical Die Rolling Machine

FUNCTION
Annular, Axial and Helical Roll Forming, Finish­ing and Straightening within
its torque, radial die load and geometric capacity. Typical capabilities,
assuming correct die design, setup and tooling, and suitable material rollability
and form, are listed below:
Primary Operations-Thru-feed and Cutoff
•Simple shafts and pins from 1/16" x 3/4" long to 3/8" x 2½" lonq.
•Ball blanks from 1/16" to 3/8"
•Roller blanks from 1/16" x 1/2" long to 5/16" x 2" long

Bar Processing- Thru-feed-Unlimlted Length
•Threaded rod up to 2½" diameter
•Worm rolling up to 2" diameter x 10diametral pitch
•Annular forms upto2½" in diameter
•Shallow involute forms up to 2½" in diameter
•Knurled or shallow finned bar up to 2½" in diameter

Secondary Rolling Operations-ln-feed
•UNC threads to 2¼" diameter x 4½" long
•Fine pitch threads to 3" diameter x 5½" long
•Worms to 2" diameter, 10 diametral pitch x 3" long
•Knurls and shallow involute forms to 3½" in diameter x 5½" long
•Annular forms to 4" in diameter, depending on depth and length of form
Roll Finishing and Denlcking
•Thru feed to 2½" diameter and unlimited length
•ln-feed to 4" diameter and 5½" long
Roll Straightening
•Thru feed to 11/s" diameter

PRODUCTIVITY

Typical Thru feed Production Rates
•3/8"-16 UNC low carbon steel threaded rod-100 feet per minute
•1½"-8 UNC B-7 studs-8 feet per minute
•2" diameter, 20TPI knurled bar-1045steel-9feet per minute
•Roll finished 2" diameter 416 stainless steel bar-12 feet per minute
•Roll straightened 1" diameter 1045 steel-30 feet per minute

Typical ln feed Rolling Times (No Handling) with standard hydraulic infeed actuation
•.500" diameter 36 TPI Kine-Grip serration x 4½" long, stress proof steel-.75 seconds
•3/4"-10 thread x 4¼" long,4140 heat-treated steel­
.? seconds
•2¾"-8 thread x 4" long, 8620 steel-5 seconds
•2½" diameter 10 diametral pitch worm x 3" long, 1045 steel-9 seconds
•4" diameter, 3/8" deep flange, 1060 steel-20 seconds

BUILDING BLOCK SPINDLE UNITS

Standard Skew able Spindle Unit
•Spindle Diameter-2½"
•Die Length-4½"
•Die Diameter Range-4½" to 6"
•Skew Range-0 to± 12°
•Key-¾" x¾"
•Die Center Distance Range-4¾" to 8¾"
Extended Length Skew able Spindle Unit
Specifications same as above except die length 5½"
Overhung Large Diameter Die Spindle Unit
Available for rolling parts with large shoulders near rolled area, for multiple
form rolling of small parts with segment dies, or for thru feed and cutoff.
DIE DRIVE TRAIN
Its high efficiency spur gear drive system with ground and hardened gears and
roller bearing uni­versals has a torque capability of 750foot pounds. The sealed
gearbox with a 3" diameter pass through hole has self-contained oil bath lubrica­tion. For normal operation a 1.9 to 1 ratio is used. For high speed operation a 1 to 1 ratio is available.

DIE DRIVE UNITS

Standard 25 HP Adjustable Speed Unit
with speed ranges from 150 to 500 RPM
Optional 25 HP Variable Speed Unit
with infinite adjustment over 3:1 maximum to minimum selected speed range
Optional High Speed 30 HP Unit
with selected die speeds up to 1200 RPM
Optional Low Speed 15 HP Unit
with speed ranges from 75 to 250 RPM
HIGH STIFFNESS STRESS FRAME
A rugged steel stress-frame with patented single pivot is combined with the
rugged prestressed draw­ bar and stiff machine base to provide very low deflec­tion
under full-rated die load.

THRUFEED ROLLING DIE CONTROL
On the thru-feed machine the prestressed drawbar with a micrometer size-adjustment
nut sets and holds the required die gap to excellent repeatability.

COMBINATION INFEED AND THRUFEED ROLL­ ING DIE ACTUATION

For in feed or in-and-thru-feed operation, die actua­tion is provided by a 4"
hydraulic cylinder operating through the drawbar. The cylinder, operating at 3000
PSI with a1.7 mechanical advantage, provides a radial load in excess of approximately
54,000 pounds with outstanding closed die position repeatability.
A field-proven 5 HP,5 GPM hydraulic system using a Vickers variable volume pump and
manifold­ mounted flow control valves provide the hydraulic power.
SPECIAL HIGH SPEED INFEED ROLLING DIE ACTUATION
For infeed rolling applications requiring produc­tion ratesfrom30to 120 per minute,
a mechanical die actuation unit is available. Its die closing cam is driven by a
hydraulic motor to provide continuously adjust­ able cycle speeds through the full
range. It also pro­ vides a timed power takeoff for any mechanically actuated feed
unit.

TAPER ADJUSTMENT

Single-point precision adjustment of taper is achieved through the use of a
micrometer screw system which provides precise repeatability with independent
dial readout.

AUTOMATIC DOUBLE ACTING DIE POSITIONING

A simple linkage system automatically positions the rolling dies and their support
arms symmetrically about the horizontally fixed rolling centerline. This will permit
diameter and die size adjustment without the need to horizontally adjust either the
die system or any work support and/or feed mechanism.

EXTERNALLY ADJUSTABLE MICROMETER ROLLING SUPPORT UNIT

A cam-operated support unit actuated by an externally mounted micrometer dial
provides pre­cisely repeatable positioning of work-support blade or other fixtures.
STANDARD AXIAL MATCH
A micrometer matching dial with matching spring or optional variable backup spacer
permits axial die match to within .001".

OPTIONAL ROTARY MATCH

An adjustable unit, mountable on the rear end of the left gearbox output hub,
permits precise adjust­ment of the angular match of the left die to the right.

SPECIAL ELECTRONICALLY CONTROLLED HIGH PRECISION INFEED ROLLING DIE ACTUATION

Where high-precision pitch or form diameter con­trol is required, regardless of
variations in material hardness or other characteristics, the Kine-Tronic preset
table electronic size control system is available. Through the use of direct die
position monitoring, to provide constant die position feedback to the
elec­tromechanical die actuation drive, it is possible to achieve a die position
repeatability of approximately.0002" regardless of other process variables.
Furthermore, this system enables the user to electroni­cally select fast approach,
initial penetration, final penetration, and dwell of the cycle.

Upgraded Variable Speed Drive Yes
Condition: Good
