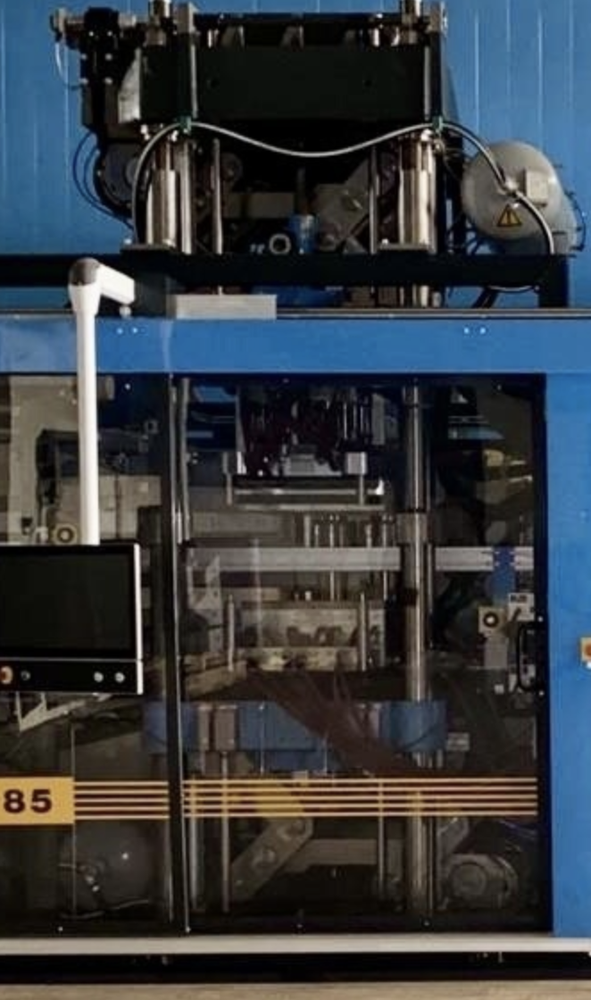

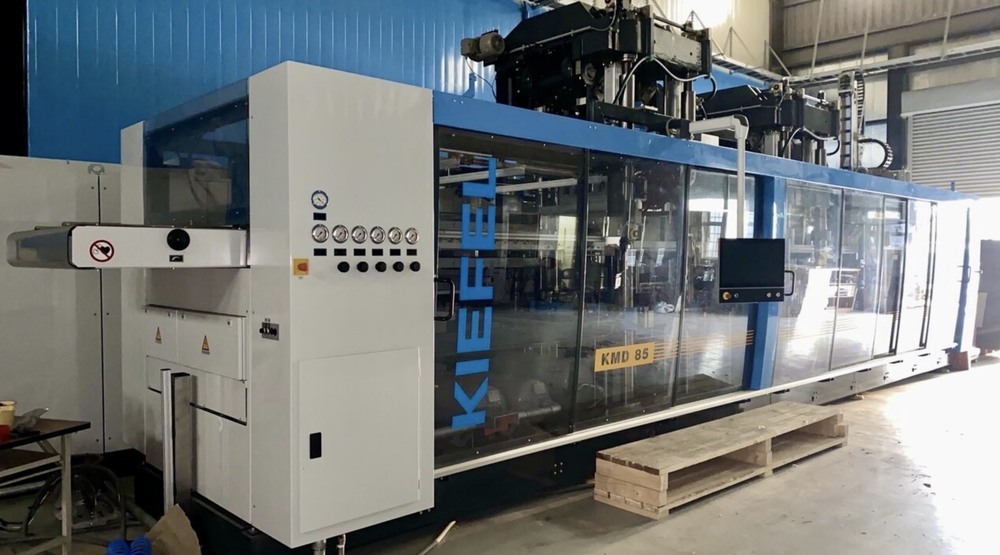

Kiefel KMD 85 SP

Condition Excellent
In Production Yes

Group
Automatic pressure former
Stacking Unit
Mould


Type
Cutting in Mould
Forming / Cutting separate

Forming area (mm) 825 × 675
Film width (mm) 900
Depth 150

FORMING STATION CAN BE USED AS FORMING/CUTTING STATION
Mould available
Forming Area
Max. forming area: 825 × 675 mm
Min. forming area: 375 × 350 mm
Max. tool dimensions: 850 × 700 mm
Tool dimensions max. (block change): 850 × 700 mm
Height of formed part above / below film level / total: 150 / 150 mm
Max. film width (parallel rails): 900 mm
Film thickness range (depending on film properties): 0.2 – 1.8 mm
Max. production speed (depending on stacking system): 45 cycles/min
Max. production speed BFS (depending on stacking system): 40 cycles/min

Heating System
Heating capacity per heater bank: 67.2 / 67.2 kW
Heating elements (ceramics, black – HTS): 125 × 125 mm
Heating element layout (longitudinal row × cross row): 6 × 14

Forming Station
Forming station force: 420 kN
Forming cutting force (BFS): 800 kN
Max. tool weight top/bottom table: 750 / 750 kg
Max. tool BFS weight top/bottom table: 750 / 750 kg
Max. tool block weight: 1500 kg
Top/bottom table movement: 170 mm

Hole Punching Station
Hole punching station force: 420 kN
Max. tool weight top/bottom table: 750 / 750 kg
Max. tool block weight: 1500 kg
Top/bottom table movement: 170 mm

Cutting Station
Cutting station force: 800 kN
Max. tool weight top/bottom table: 750 / 750 kg
Max. tool block weight: 1500 kg
Max. tool weight knife plate: 150 kg
Top/bottom table movement: 170 mm
P&P: 420 mm

Pusher Weight
Up-stacker: 80 kg
Tip-stacker: 40 kg
P&P: 80 kg

Stacking station – Max. Speed
Up-stacker: 45 cycles/min
Tip-stacker: 45 cycles/min
P&P: 50 (D-Basket)

Vacuum System
Operation pressure: 6 bar
Vacuum pump: 300 m³/h / 2× 1½” / 2× 1″
Forming air vessel: 2× 90L / 2× 2″
Forming air connection tool: 4 × 1″ max. coupling
Cooling water circuits: 2 × 6 × 1/2″

Electrical Data
Voltage: 3 × 400V AC + N + PE (50/60 Hz)
