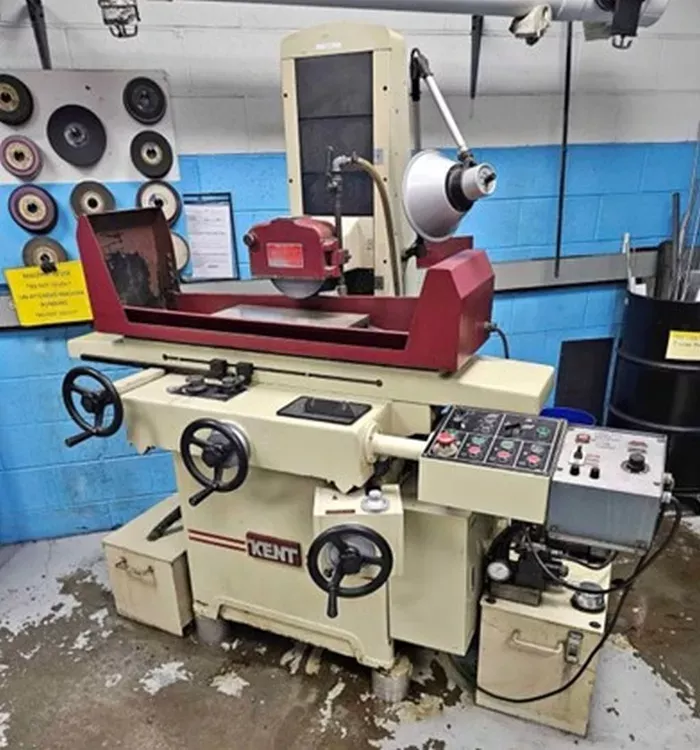

Kent KGS-250AHD
AMERICA North (USA-Canada-Mexico)
KENT KGS-250AHD
YEAR: 1987
CAPACITY:
TABLE WORKING SURFACE.......................................... 18" X 8"
LONGITUDINAL TABLE TRAVEL...................................... 21 1/2"
CROSSFEED TABLE TRAVEL......................................... 10 1/4"
MAXIMUM DISTANCE CENTER OF SPINDLE TO TABLE.................... 19"
TABLE LOAD (INCLUDING MAGNETIC CHUCK).......................... 220 LBS
TABLE & CROSSFEED:
TEE SLOT....................................................... 9/16 X 1
LONGITUDINAL TABLE SPEED....................................... 16-75 FT/MN
CROSSFEED ON HANDWHEEL (1 GRA.)................................ 0.001"
CROSSFEED ON HANDWHEEL (1 REV.)................................ 0.2"
AUTOMATIC CROSSFEED PER STROKE................................. 0.004"-0.2"
POWER CROSSFEED 50 HZ.......................................... 29 IN/MN
POWER CROSSFEED 60 HZ.......................................... 35 IN/MN
GRINDING WHEEL:
WHEEL DIMENSION (O.D. X T X I.D.).............................. 7" X 1/2" X 1 1/4"
SPINDLE SPEED 50 HZ............................................ 2900 RPM
SPINDLE SPEED 60 HZ............................................ 3480 RPM
VERTICAL MOVEMENT:
AUTO DOWNFEED INCRIMENT (10 STEPS)............................. 0.001-0.001
MAXIMUM TRAVEL................................................. 16 3/4"
VERTICAL ON HANDWHEEL (1 GRA.)................................. 0.0005"
VERTICAL ON HANDWHEEL (1 REV.)................................. 0.1"
MOTOR:
SPINDLE MOTOR.................................................. 1.5X2
HYDRUALIC PUMP MOTOR........................................... 1X4
DUST-COLLECTOR MOTOR........................................... 1/2X2
COOLANT PUMP................................................... 1/8X2
CROSS FEED MOTOR............................................... 1/5X6
SIZE:
MACHINE HEIGHT................................................. 70"
FLOOR SPACE.................................................... 71" X 55"
NET WEIGHT..................................................... 2750.2860 LBS
GROSS WEIGHT................................................... 3190.3300 LBS
FEATURES AND EQUIPMENT:
COOLANT SYSTEM
WORK LAMP
VARIABLE HOLD NEUTROFIER
ELECTRO MAGNETIC CHUCK
FULL SPLASH GAURD
GRINDING WHEEL X2
