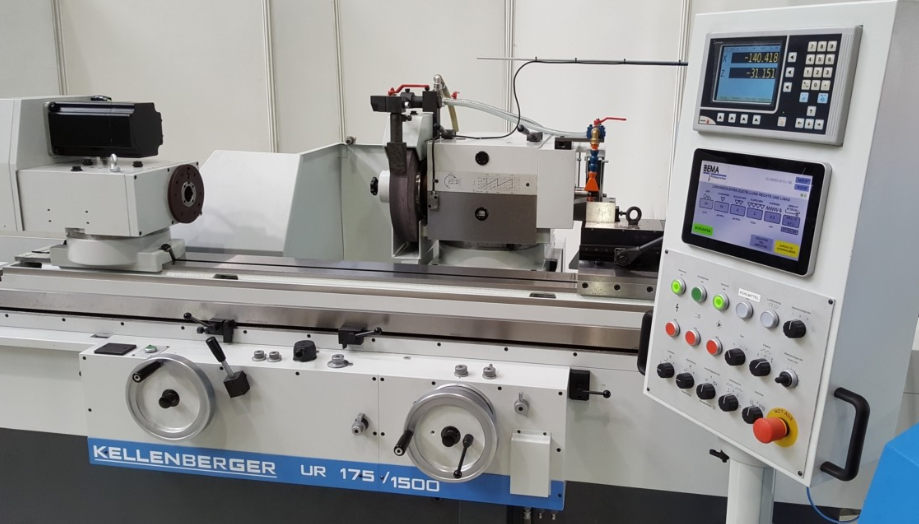

Kellenberger UR175-1500 BEMA STEP

KELLENBERGER UR175-1500 BEMA STEP
Year of manufacture 198x/2023

grinding diameter 350 mm
grinding length 1500 mm
centre height 175 mm
grinding wheel diameter 400 mm
grinding wheel width 50 mm
bore 127 mm
work piece spindle speed 20-400 U/min
grinding head swivelling 360 °
grinding spindle head - swivable 180 + - °
grinding spindle speed 1500,1700,2200 U/min
longitudinal feed of the table 700 mm
table speeds 0,02-6 m/min
cross travel max. 270 mm
tailstock quill taper MT 3
quill travel 30 mm
total power requirement 6,5 kW
weight of the machine ca. 3,6 t
dimensions of the machine ca. 5,48 x 2,0 m
