Kellenberger UR 175-1000

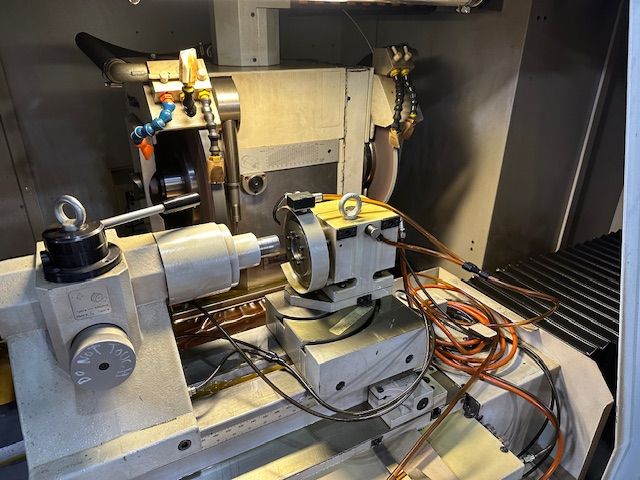

Kellenberger Kel-Viva UR 175-1000 CNC OD / ID Grinder
Model: UR 175-1000
New: 2009

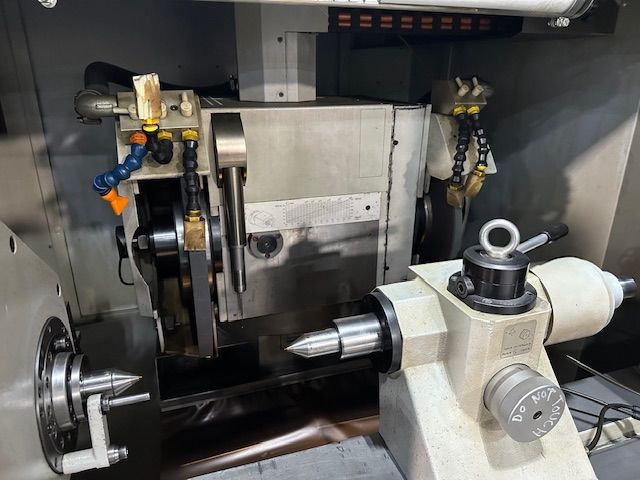

Wheelhead
Left-Side Grinding Wheel Dia x Width – 20″ x 4″
Right-Side Grinding Wheel Dia x Width – 20″ x 4″
Internal Grinding Spindle Bore/Dia – 5″
OD Motor Output – 12.3 HP
Distance Between Centers – 40″
Z Axis Traverse Rate – 590 IMP
X Axis Max Travel – 12.6″
X Axis Rapid Traverse Rate – 300 IMP

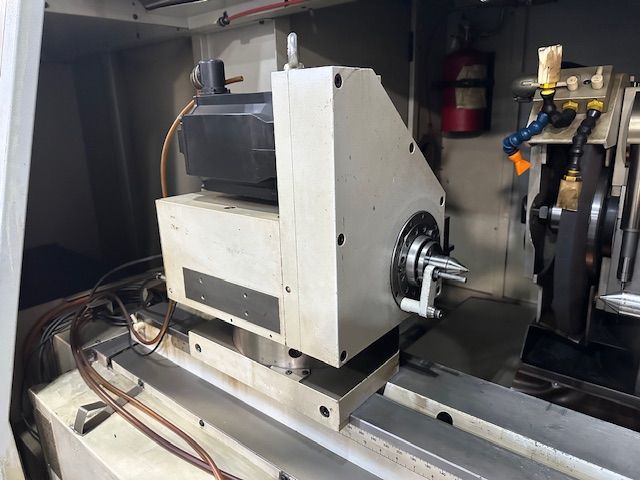

Workhead Spindle Speed – 8 – 800 RPM
Workhead Internal Taper – Morse No. 5
Workhead Motor Output – 5.4 HP
Tailstock Sleeve Retraction – 2″
Hydrostatic Ways
Resolution Z & X ( Glass Linear Encoders ) – 0.1 micron

EQUIPPED WITH:
Diamond Dresser
Probing System

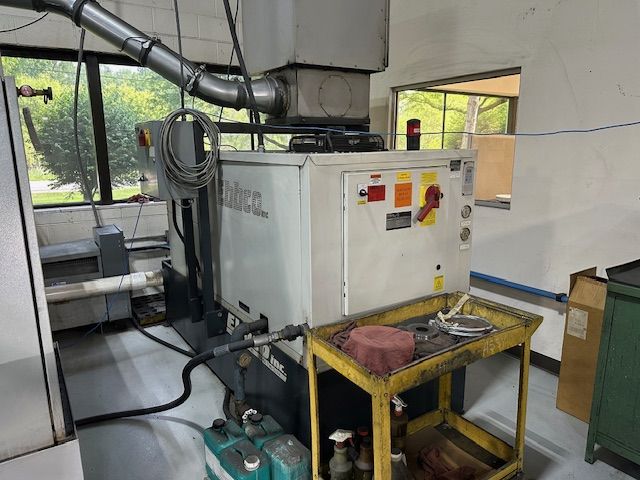

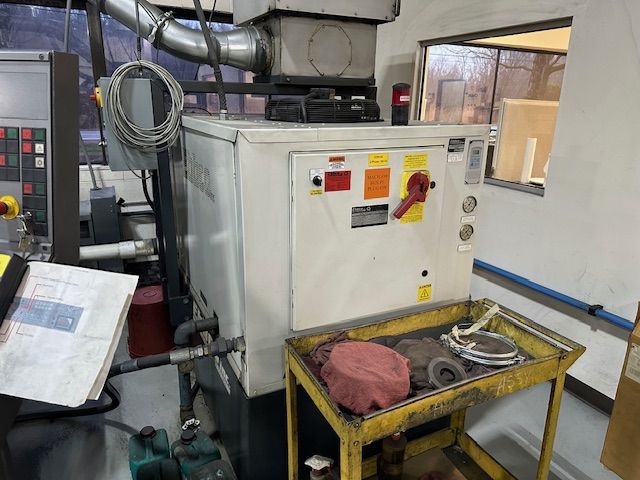

Ebbco PMF – 40000 – EC Chiller
Coolant
Misc New Parts / Tooling
